LEMON Manuals: Even more car manuals for everyone: 1960-2025
Home >> Ford >> 2000 >> Excursion 4WD V8-5.4L SOHC VIN L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Lower and Front End
April 5, 2026: LEMON Manuals is launched! Read the announcement.

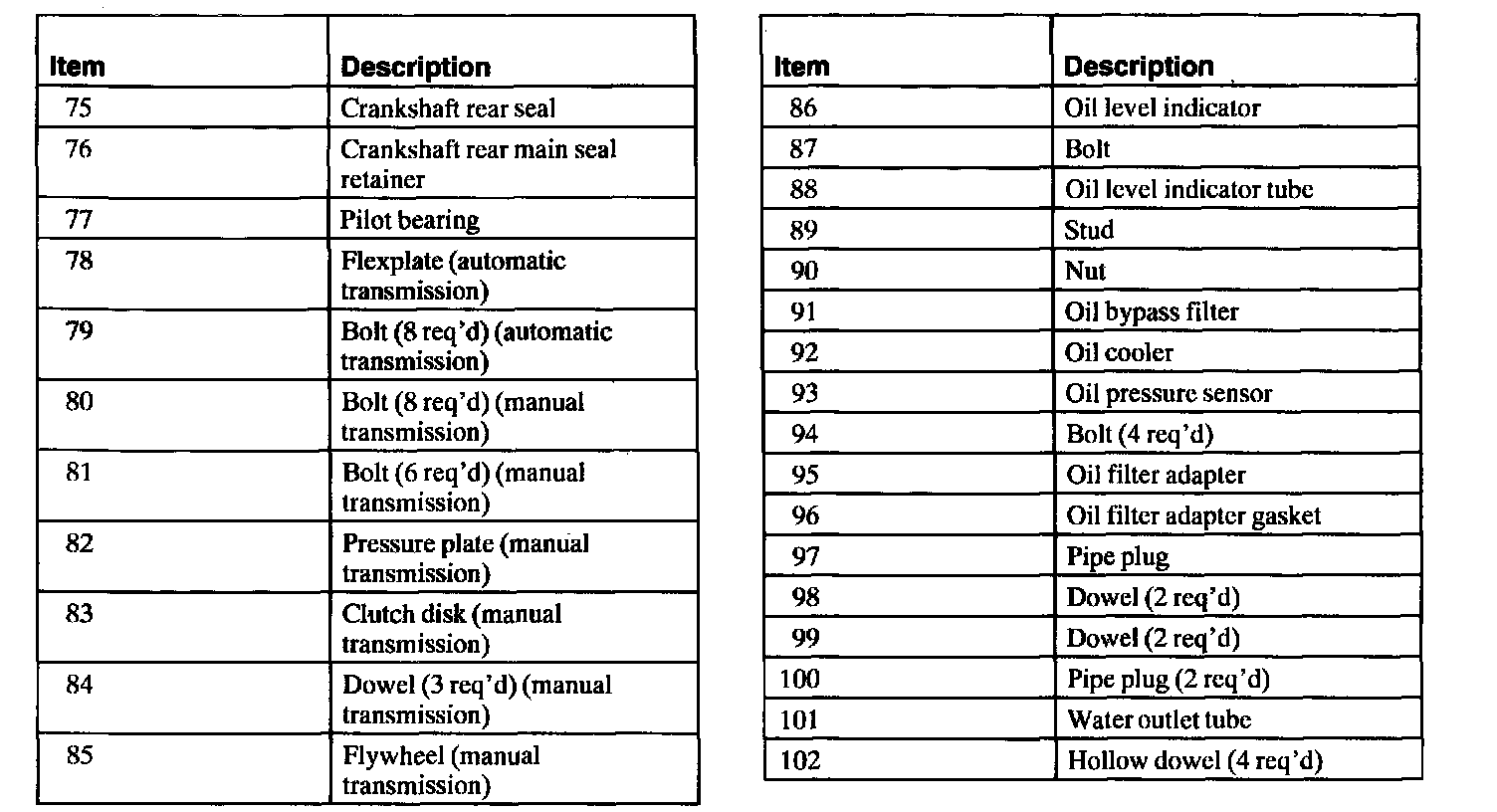

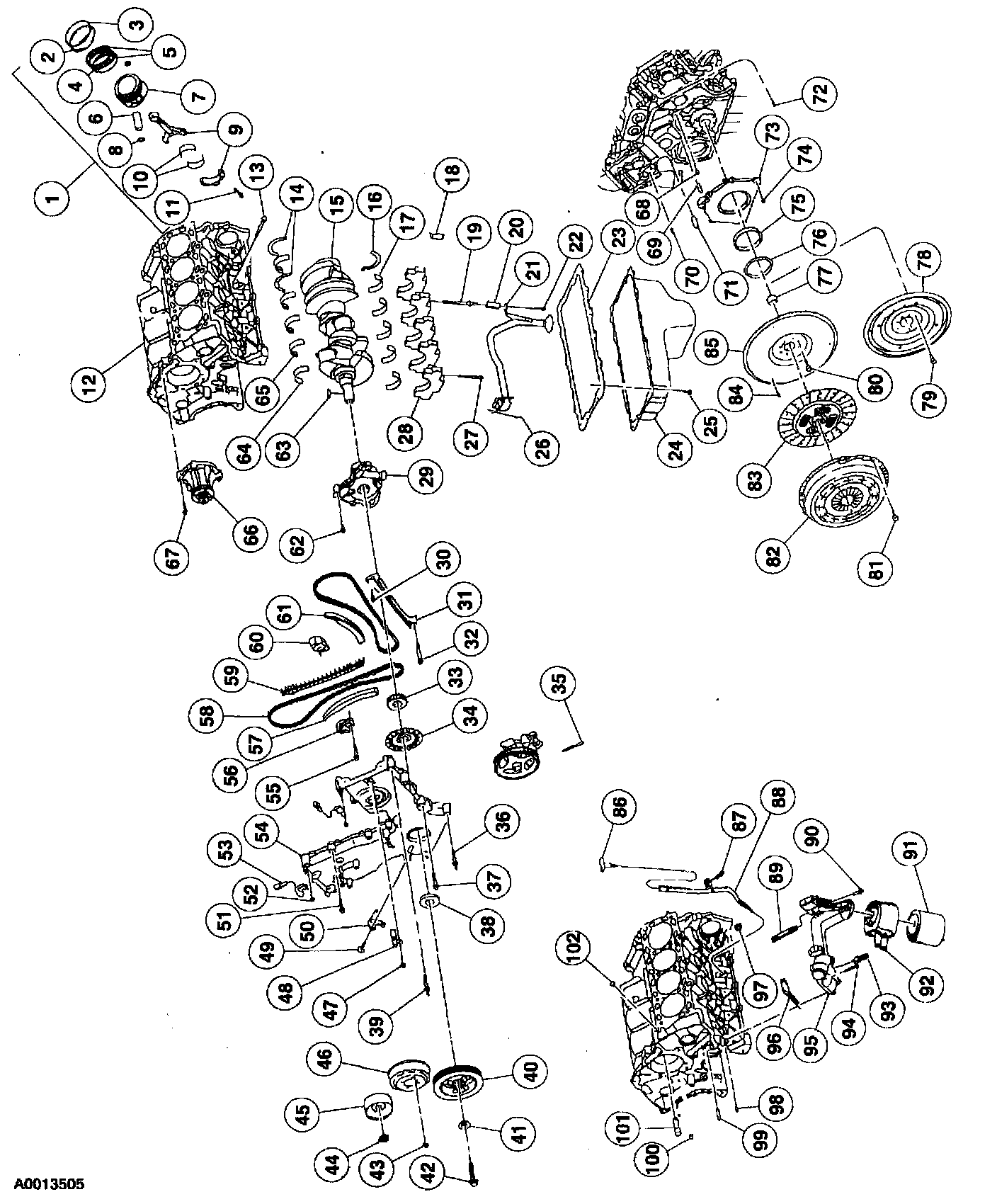

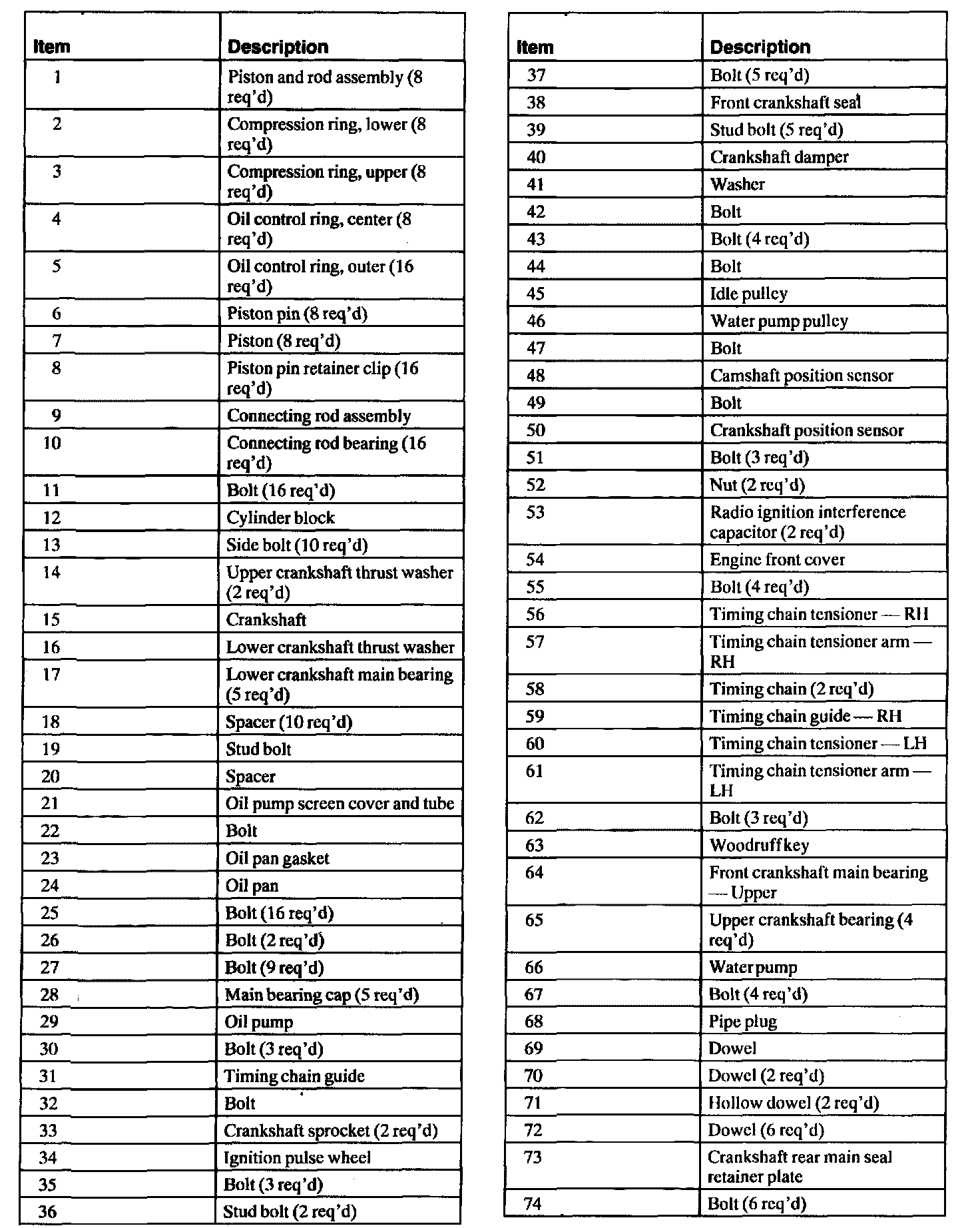

Lower and Front End





1 of 3





2 of 3





3 of 3
