Accelerator Pedal Position Sensor: Service and Repair

Pedal - Accelerator and Sensor Assembly, Diesel Engine

Removal

CAUTION: The accelerator pedal and sensor assembly is a non-adjustable, calibrated unit and must be handled with care.

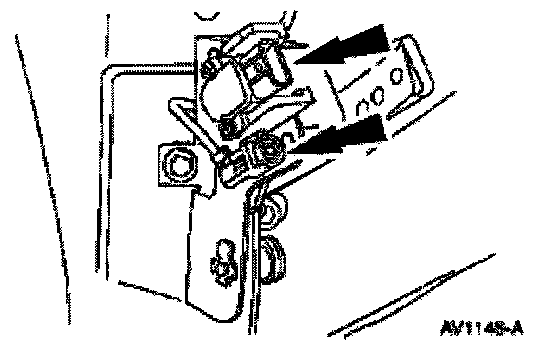

1. Disconnect the electrical connectors.

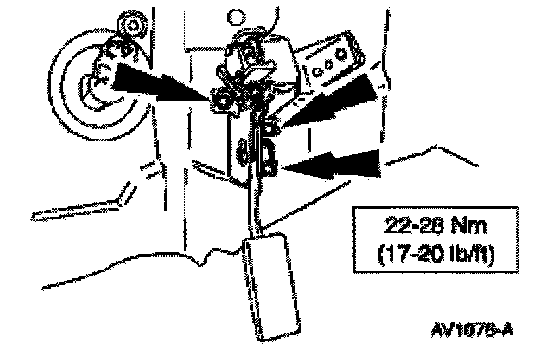

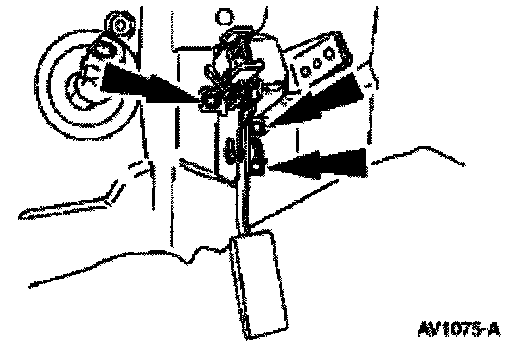

2. Remove the bolts and remove the accelerator pedal and sensor assembly.

Installation






1. Follow the removal procedure in reverse order.
