Oscilloscope Patterns and Waveforms

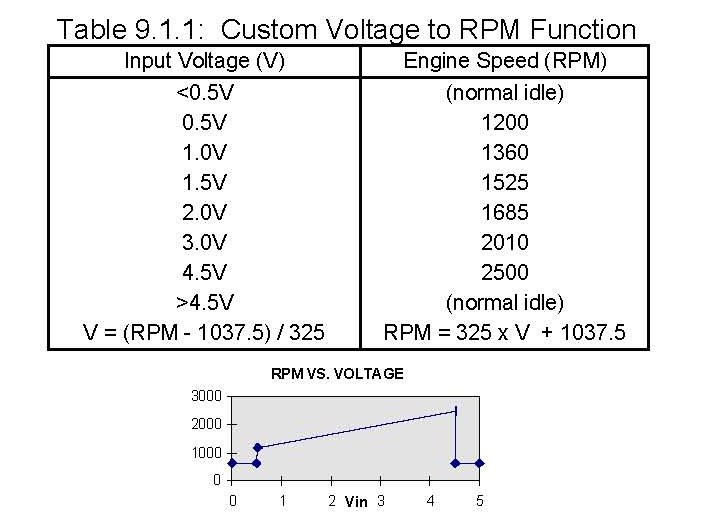

CUSTOM INPUT VOLTAGE TO OUTPUT SPEED

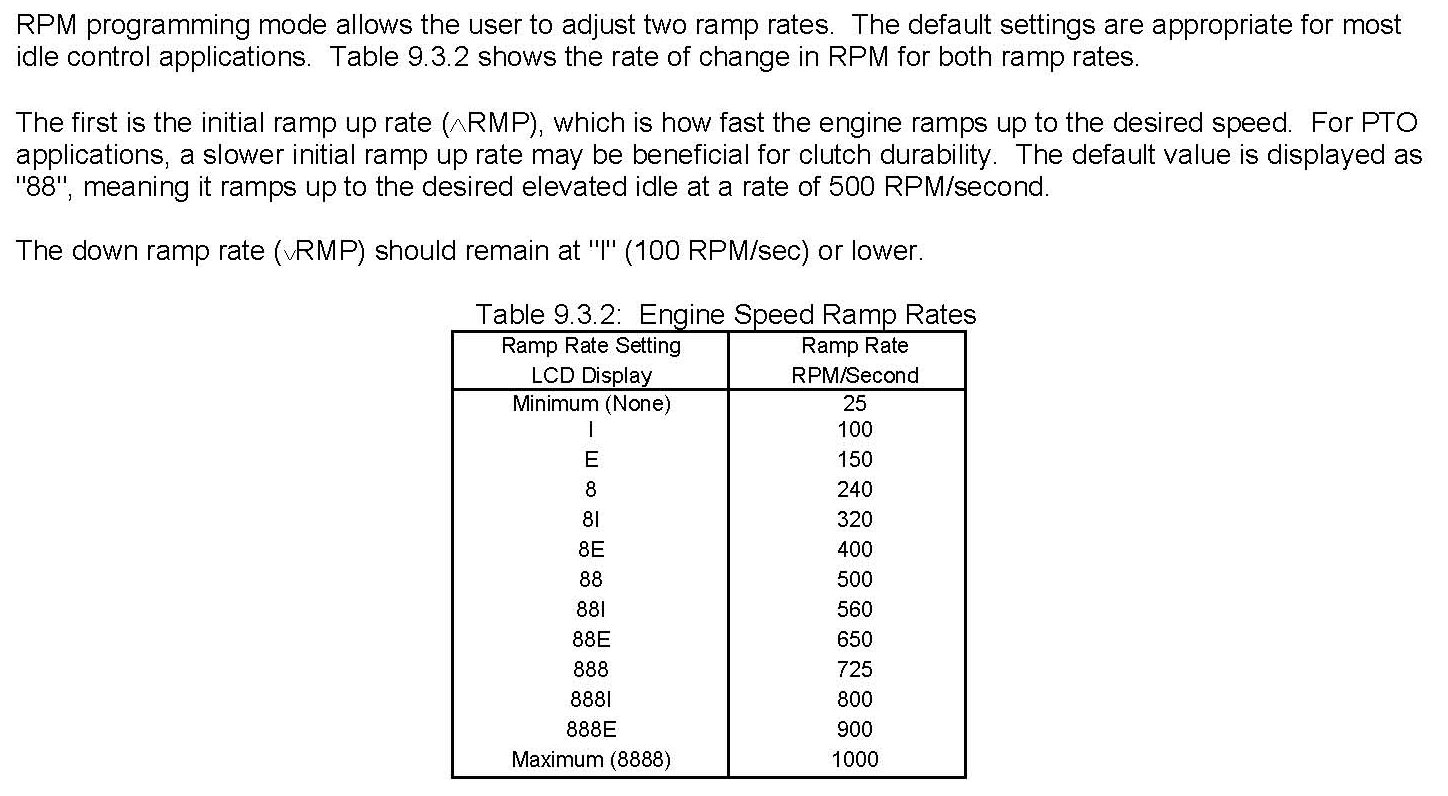

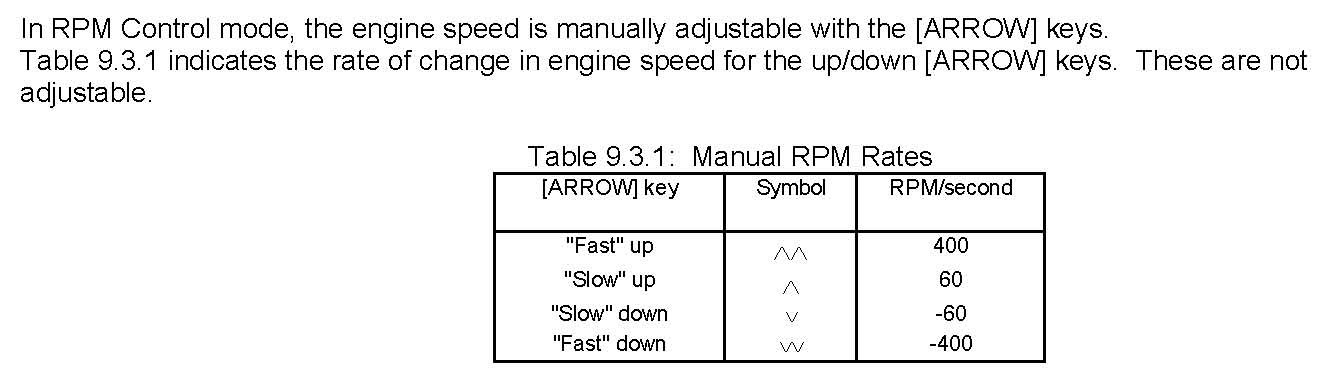

ENGINE SPEED RATE OF CHANGE TABLES

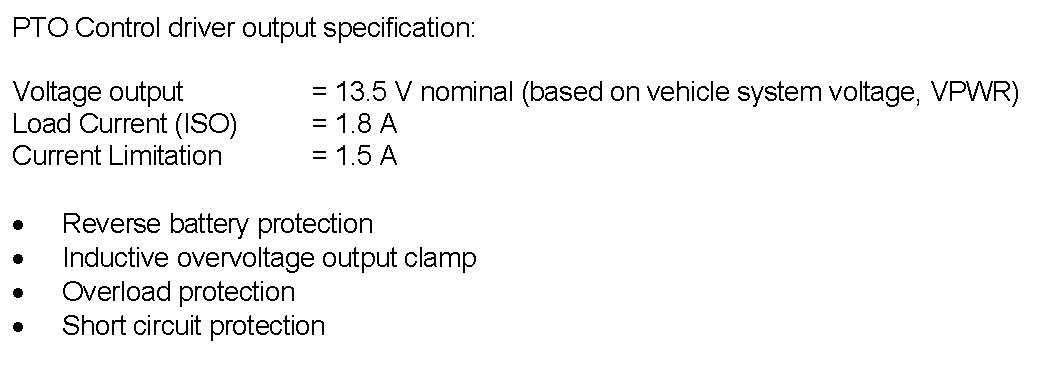

PTO CONTROL HIGH SIDE DRIVER OUTPUT
