Bi-Fuel Relay Module

NOTE: Bi-fuel relay module is located in left rear of engine compartment. No additional information is available from manufacturer.

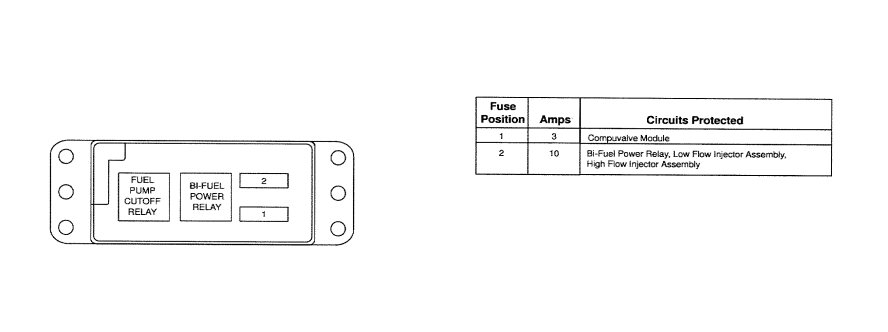

Fig 1: Identifying Bi-Fuel Relay Module Components
G00522073Courtesy of FORD MOTOR CO.
