Material Specifications
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS TABLE
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSS-M6C65-A1 |

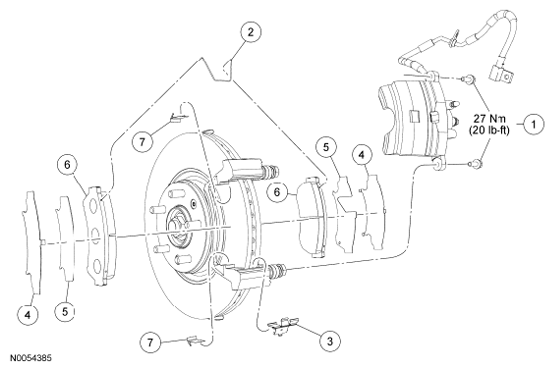

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 2L527 | Brake caliper guide pin bolts (2 required) (part of kit) |
| 2 | - | Brake pad retraction spring (2 required) (part of 2001) |
| 3 | - | Brake pad slide (2 required) (part of 2001) |
| 4 | - | Stainless steel shims (2 required) (part of 2001) |
| 5 | - | Brake pad shims (2 required) (part of 2001) |
| 6 | 2001 | Brake pads (2 required) |
| 7 | - | Brake pad slide clips (4 required) (part of 2001) |
