Vehicle Certification (VC) Codes: Notes

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

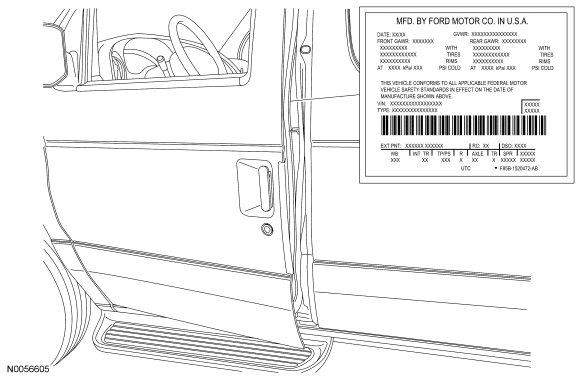

Fig 1: Vehicle Certification (VC) Label Locator

Courtesy of FORD MOTOR CO.

The VC label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes the vehicle GVWR.

If a vehicle requires replacement of the VC label and is 4 years old or less, an authorized dealer must submit the VIN to their respective regional office. The regional office will submit a web form to the assembly plant for the replacement label. Once the label has been printed, a representative from the regional office will deliver the label to the dealer and witness installation on the vehicle. If a vehicle is more than 4 years old and requires a replacement label, the dealer must submit a request to the Department of Motor Vehicles.

Fig 2: VC Label Breakdown

Courtesy of FORD MOTOR CO.

Item	Description
1	Exterior paint code
2	Region code
3	Domestic special order code
4	Wheelbase code
5	Interior trim code
6	Tape/paint pinstripe code
7	Radio code
8	Axle code
9	Transmission code
10	Spring code
11	Powertrain calibration information

Fig 3: Exterior Paint Code

Courtesy of FORD MOTOR CO.

Exterior paint codes may be listed as a 2-part code. The first set of letters/numbers listed indicate the primary body color. The second set of letters/numbers listed (if applicable) indicate a 2-tone or accent color. All colors are basecoat/clearcoat

Primary Body Color

BY - School Bus Yellow
CX - Dark Shadow Gray Metallic
DX - Dark Blue Pearl
E4 - Vermilion
G3 - Pueblo Gold
GG - Forest Green
JL - Dark Toreador Red
P - PTO paint (special order)
UA - Ebony (clear coat)
YN - Silver Metallic #2
YZ - Oxford White

2-Tone/Accent Color

CX - Dark Shadow Gray Metallic
YN - Silver Metallic #2

Fig 4: Wheelbase Code

Courtesy of FORD MOTOR CO.

138 - 3,505.2 mm (138 in) wheelbase
158 - 4,013.2 mm (158 in) wheelbase
176 - 4,470.4 mm (176 in) wheelbase

Fig 5: Interior Trim

Courtesy of FORD MOTOR CO.

Interior trim is listed as a 2-part code. The first character indicates the trim type. The second character indicates the interior trim color.

Trim Type

A - Hampton vinyl, bucket seats
C - Mortar cloth, bucket seats
L - G-Grain leather, captain's chairs
L - Premium cloth, captain's chairs (Canada and Mexico)
M - Calvin cloth, captain's chairs
N - Calvin cloth, premium captain's chairs
X - No trim available, seats not included

Interior Trim Color

E - Medium Flint
W - Medium Pebble
X - No trim/no color

Fig 6: Tape/Paint Stripe

Courtesy of FORD MOTOR CO.

A - Dark Toreador Red/Titanium
B - Light Titanium/Sandalwood

Fig 7: Radio Type

Courtesy of FORD MOTOR CO.

5 - Premium electronic AM/FM stereo with CD player
7 - Electronic AM/FM stereo with clock
D - Radio prep package (no radio chassis), 6 speakers installed
G - Radio prep package (no radio chassis), 2 speakers installed
H - AM/FM stereo with CD player
R - Radio prep package (no radio chassis), 4 speakers installed
S - Electronic AM/FM stereo with 6-disc CD changer
Y - Radio delete

Fig 8: Axle Type

Courtesy of FORD MOTOR CO.

22 - 4.10 ratio, non-limited slip, single rear wheels
24 - 3.73 ratio, non-limited slip, single rear wheels
29 - 3.55 ratio, non-limited slip, single rear wheels
32 - 4.10 ratio, non-limited slip, single rear wheels
34 - 3.73 ratio, non-limited slip, single rear wheels
39 - 3.55 ratio, non-limited slip, single rear wheels
52 - 4.10 ratio, non-limited slip, dual rear wheels
56 - 4.10 ratio, non-limited slip, single rear wheels
82 - 4.10 ratio, non-limited slip, dual rear wheels
83 - 4.56 ratio, non-limited slip, dual rear wheels
B2 - 4.10 ratio, limited slip, single rear wheels
B4 - 3.73 ratio, limited slip, single rear wheels
C2 - 4.10 ratio, limited slip, single rear wheels
C4 - 3.73 ratio, limited slip, single rear wheels
C9 - 3.55 ratio, limited slip, single rear wheels
E2 - 4.10 ratio, limited slip, dual rear wheels
E6 - 4.10 ratio, limited slip, single rear wheels
F2 - 4.10 ratio, limited slip, dual rear wheels
F3 - 4.56 ratio, limited slip, dual rear wheels

Fig 9: Transmission Code

Courtesy of FORD MOTOR CO.

B - 5-speed automatic overdrive (5R110W), diesel
Q - 4-speed automatic overdrive (4R75E)
T - 5-speed automatic overdrive (5R110W)

Fig 10: Spring Code

Courtesy of FORD MOTOR CO.

Spring codes are identified as a 4-part code. The first 2 characters listed identify the front spring codes. The second 2 characters listed identify the rear spring codes.

Front Springs

JJ - 3C24-5310-JA (coil)
KK - 3C24-5310-KA (coil)
LL - 3C24-5310-LA (coil)
MM - 3C24-5310-MA (coil)
NN - 3C24-5310-NA (coil)
PP - 3C24-5310-PA (coil)
RR - 3C24-5310-RA (coil)
SS - 3C24-5310-SA (coil)
TT - 3C24-5310-TA (coil)
UU - 3C24-5310-UA (coil)
VV - 3C24-5310-VA (coil)
XX - 8C24-5310-XO (coil)

Rear Springs

66 - 8C24-5560-VB (coil)
77 - 8C24-5560-BB (leaf)
CC - 7C24-5560-AD (leaf)
RR - 8C24-5560-RA (leaf)
SS - 8C24-5560-SA (leaf)
