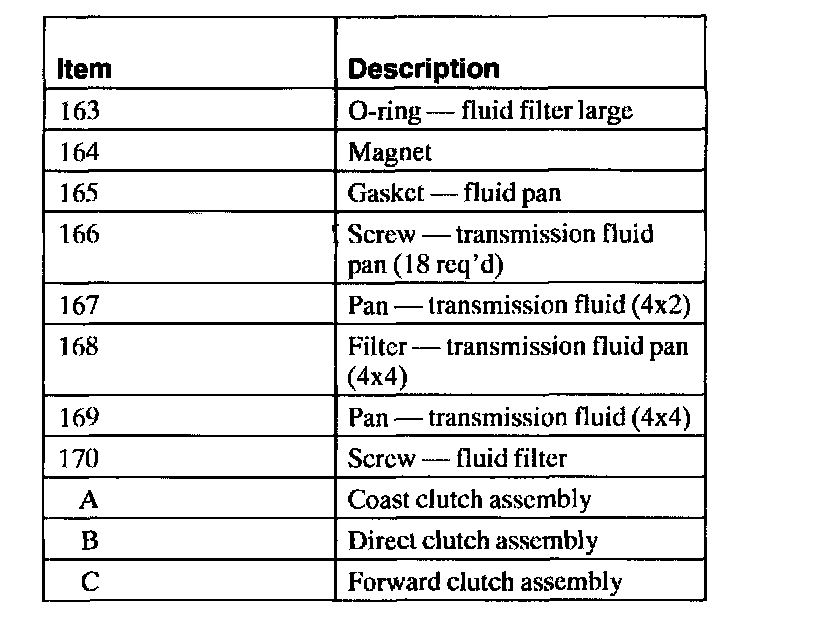

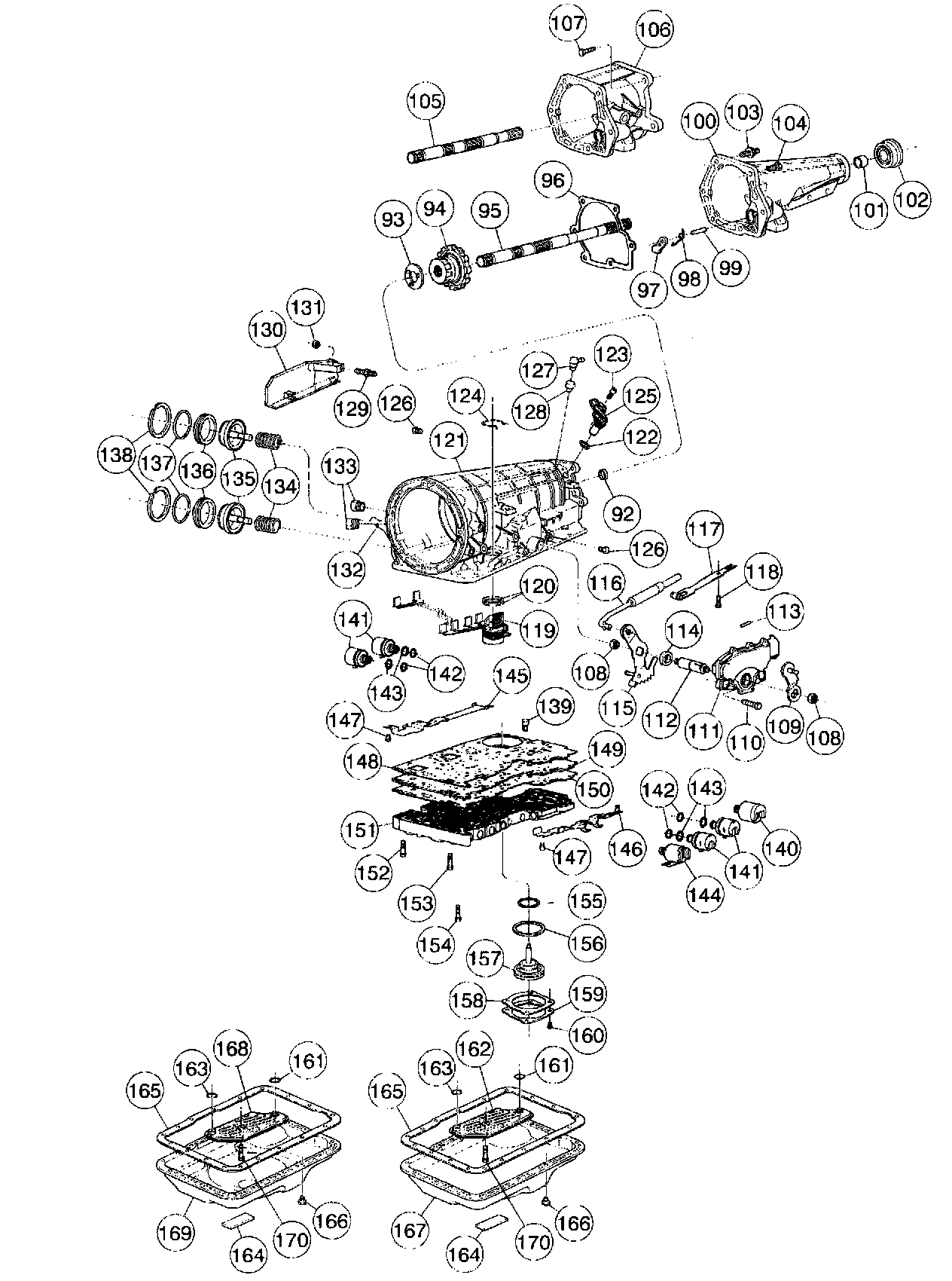

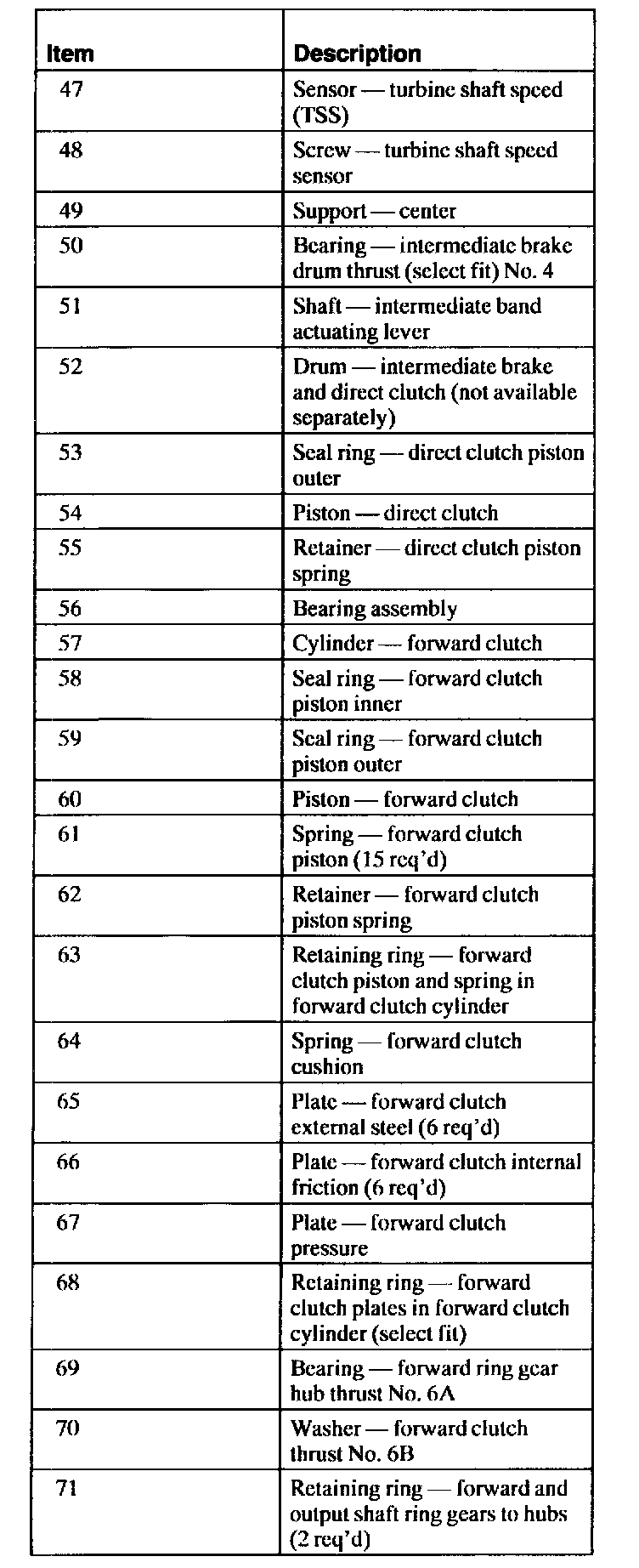

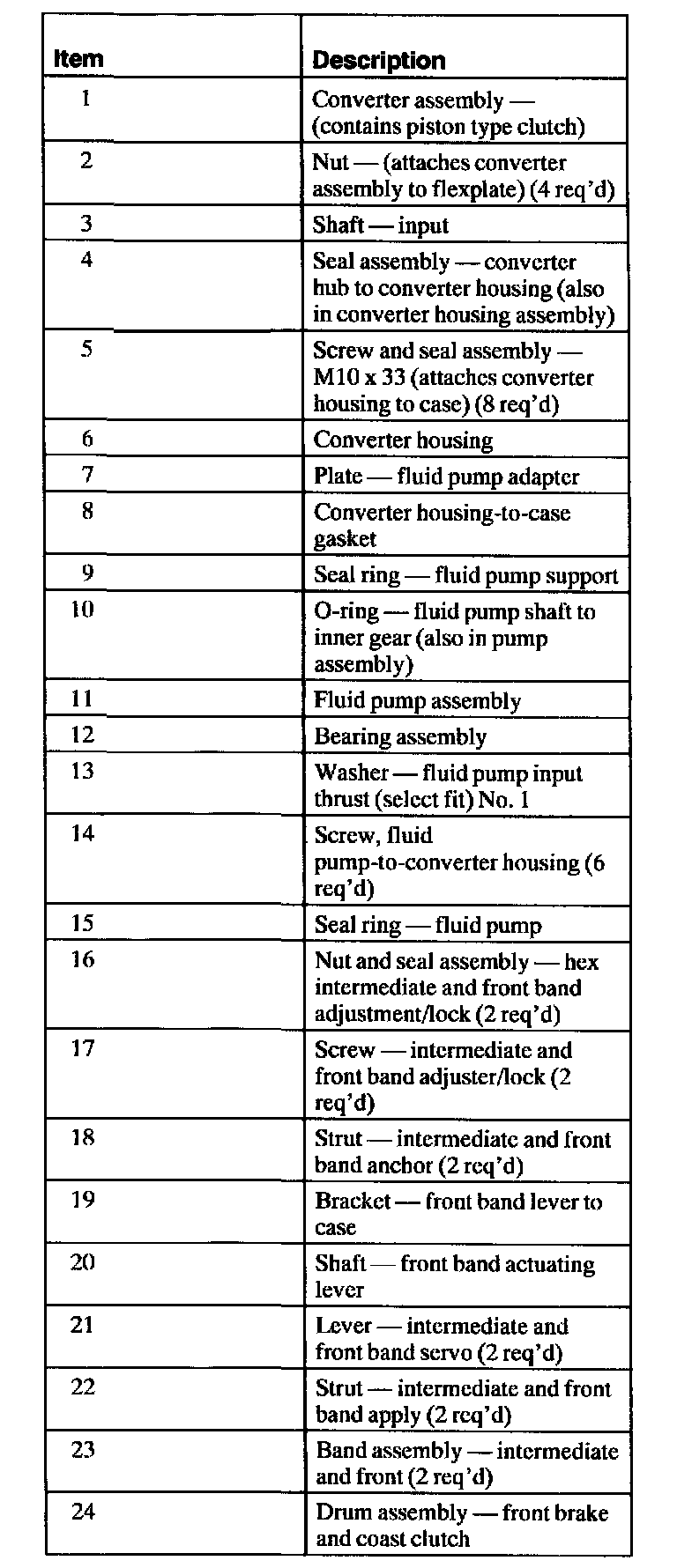

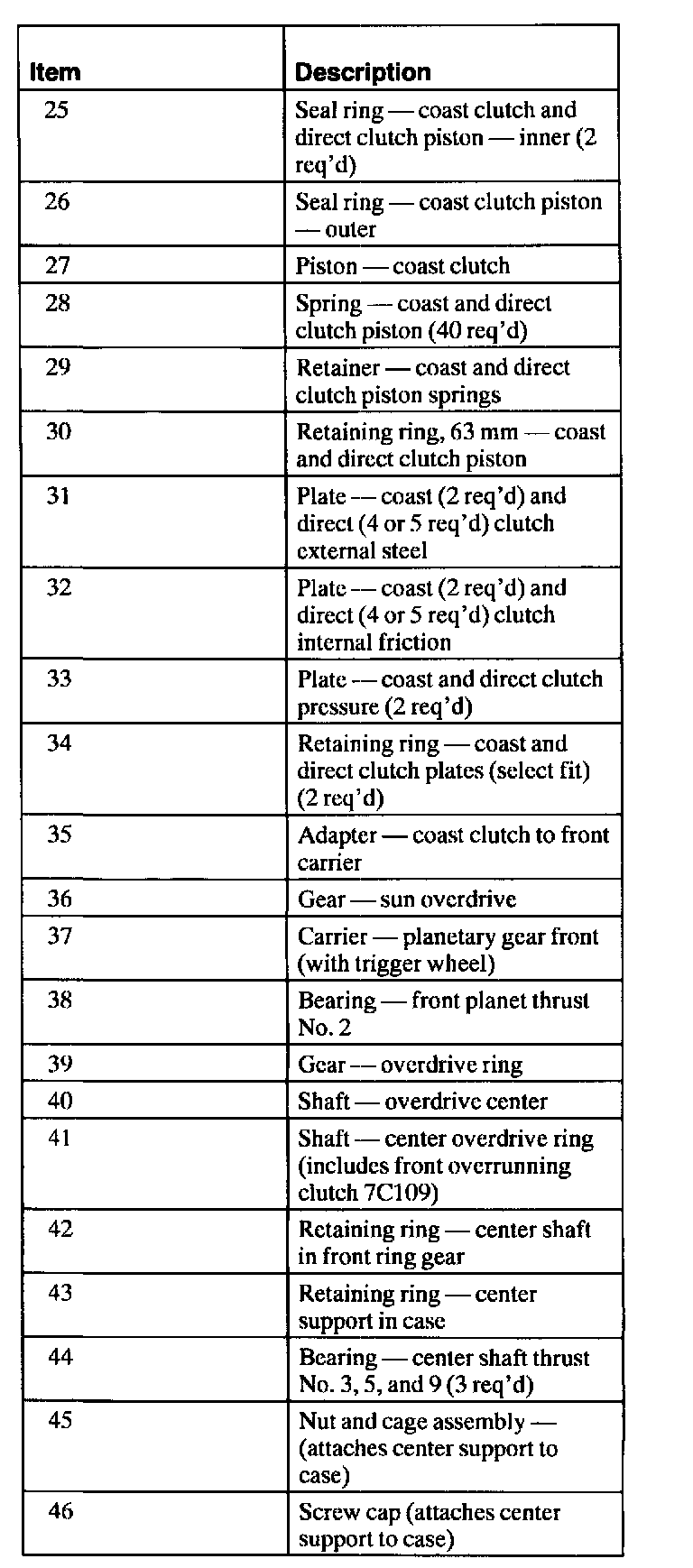

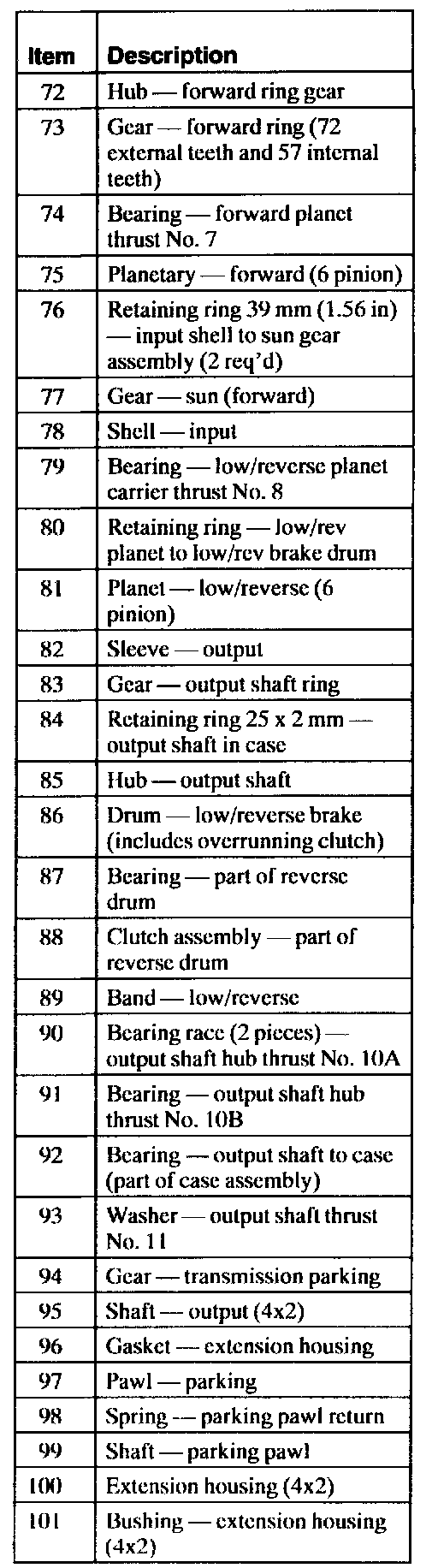

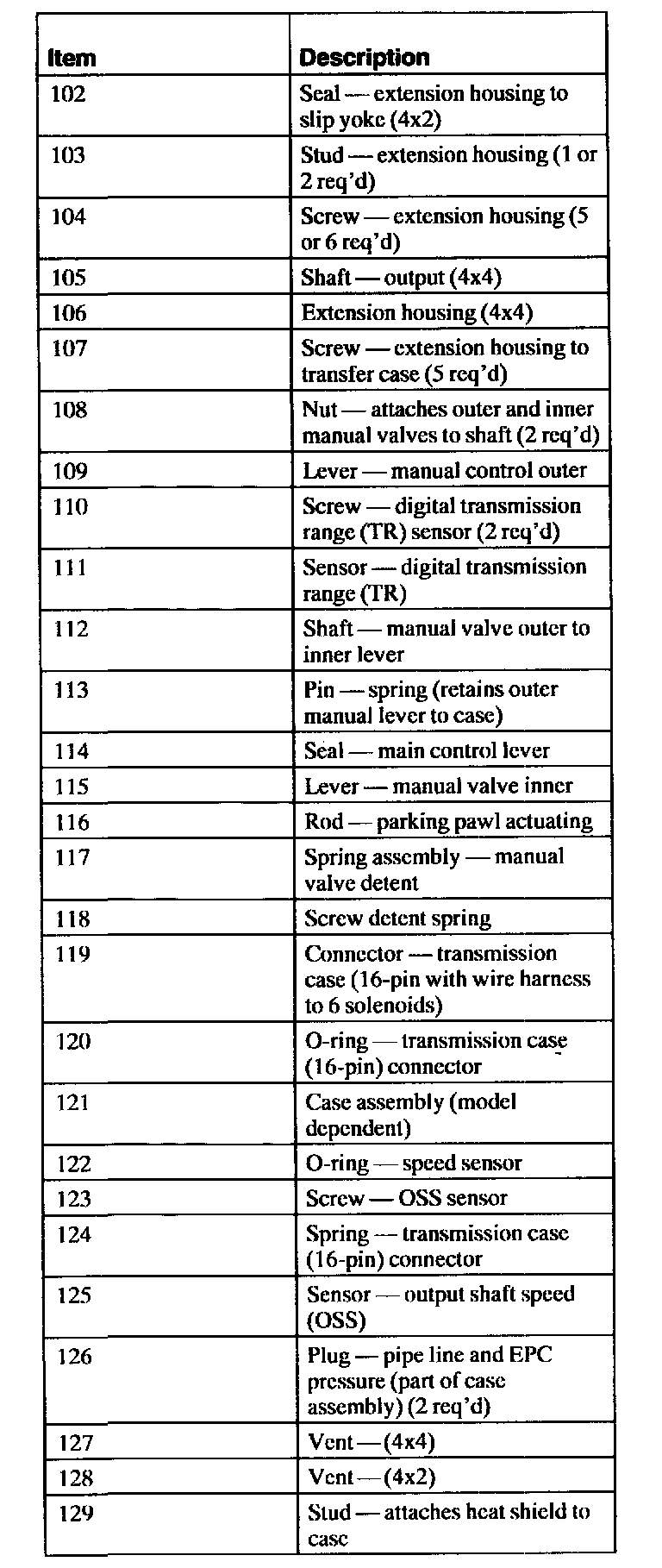

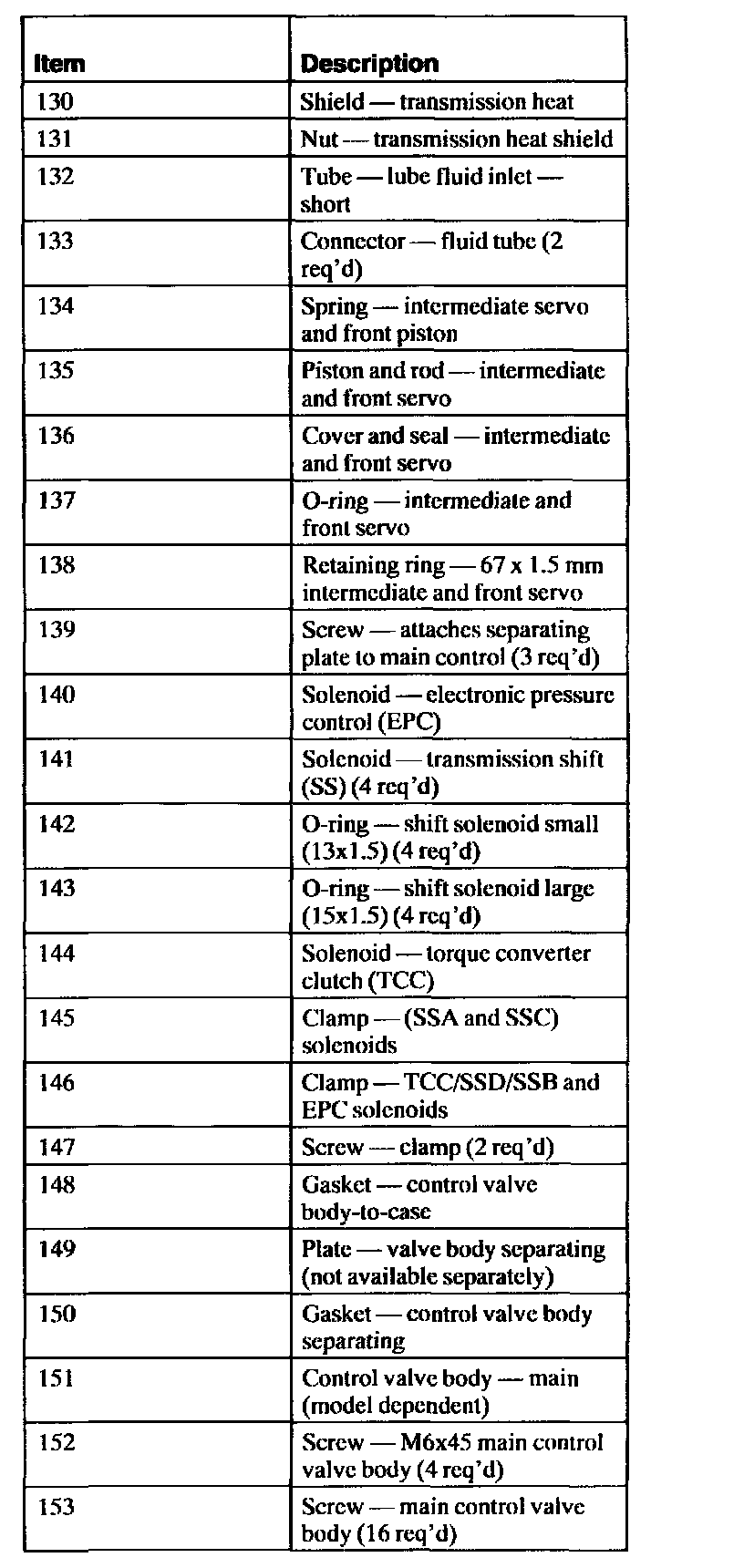

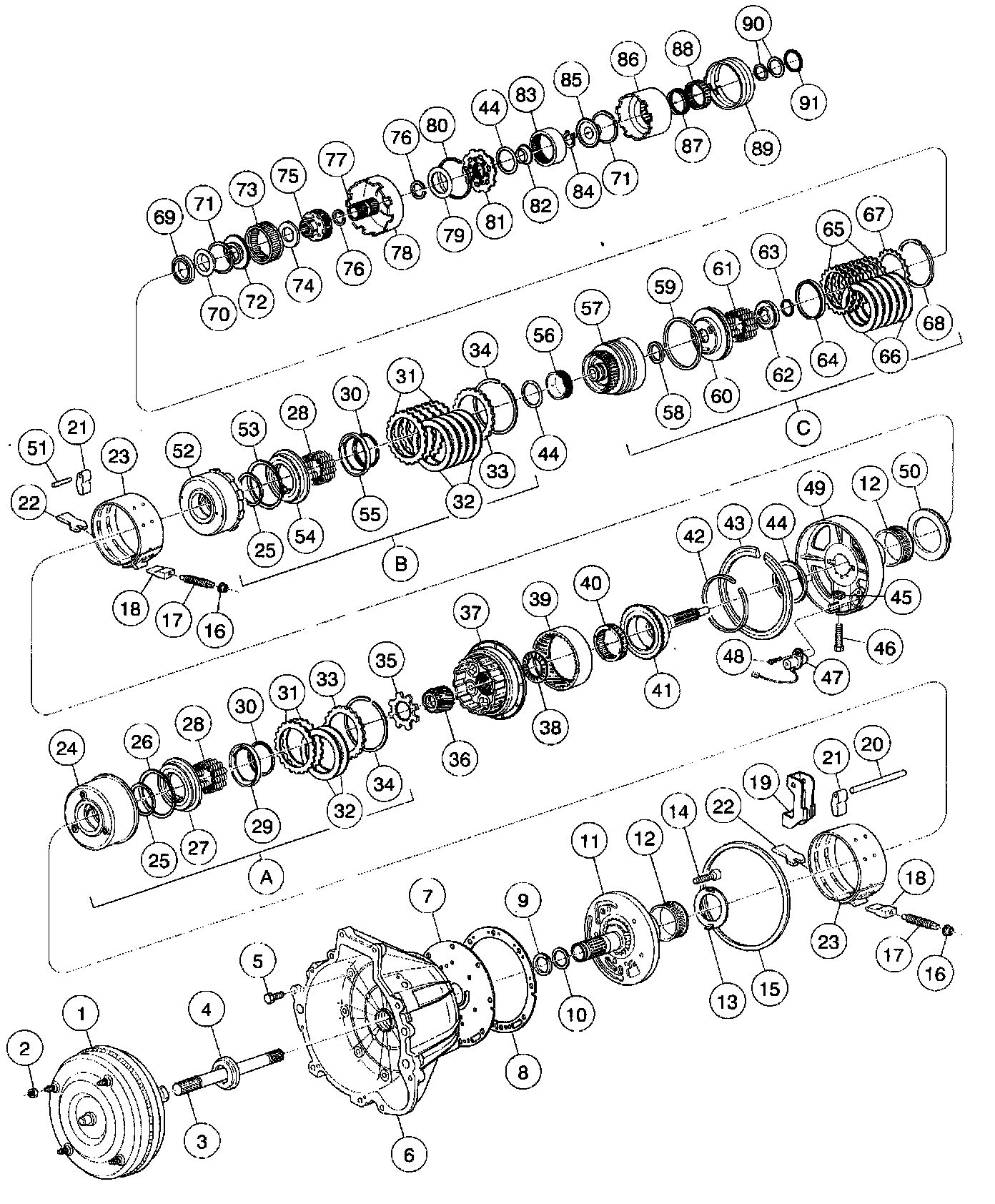

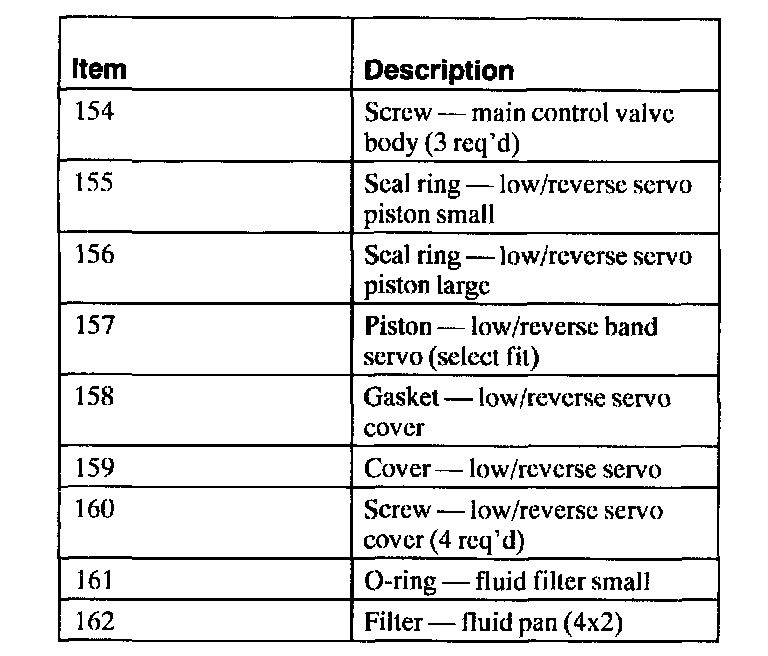

System Diagram





1 of 10





2 of 10





3 of 10





4 of 10





5 of 10





6 of 10





7 of 10





8 of 10





9 of 10





10 of 10
