Knock Sensor: Service and Repair

REMOVAL
1. Remove the lower in take manifold. For additional information, refer to Engine.







2. Remove the knock sensor.

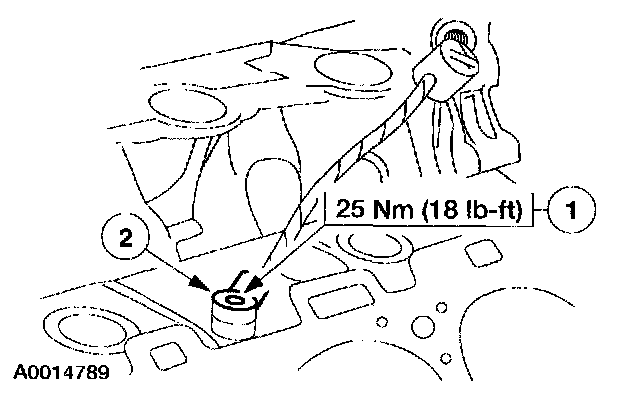

1 Remove the bolt.
2 Remove the knock sensor.


INSTALLATION
1. To install, reverse the removal procedure.
