Throttle Position Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.

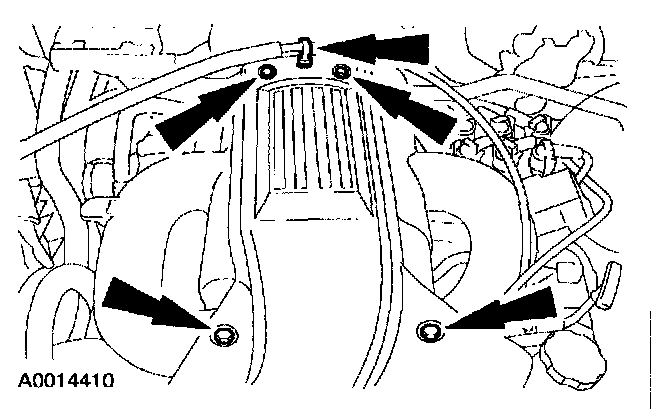

2. Remove the accelerator control snow shield.

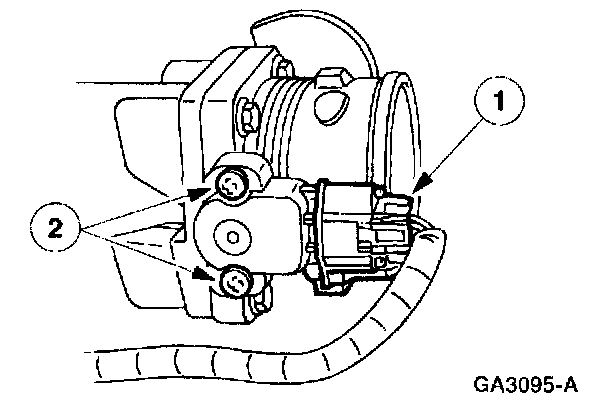

3. Remove the Throttle Position (TP) sensor.
1 Disconnect the TP sensor electrical connector.
2 Remove the sensor.

NOTE: The 4.0L (SOHC) is shown, the 4.0L push rod is similar.

INSTALLATION
1. To install, reverse the removal procedure.
