Ignition Cable: Service and Repair

Spark Plug Wire Remover:

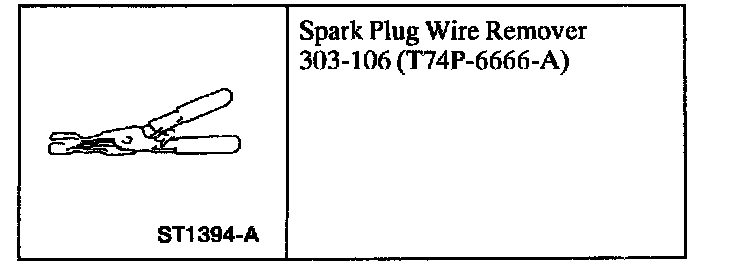

SPECIAL SERVICE TOOL(S)

REMOVAL

CAUTION:
^ Spark plug wires must be connected correctly. Mark the spark plug wires before removing them.
^ It is important to twist the spark plug wire boots while pulling upward to avoid possible damage to the spark plug wire.

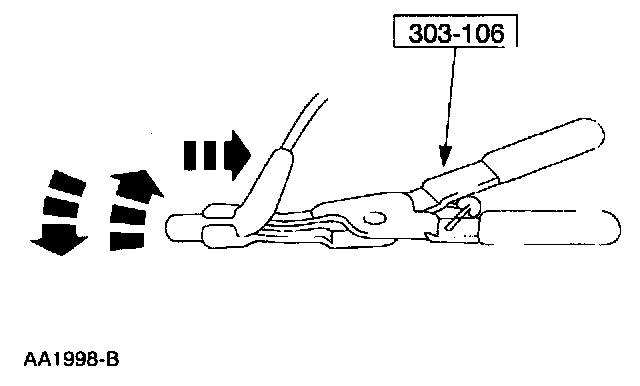

1. With a twisting motion, use the special tool to pull the spark plug wire off the spark plug.

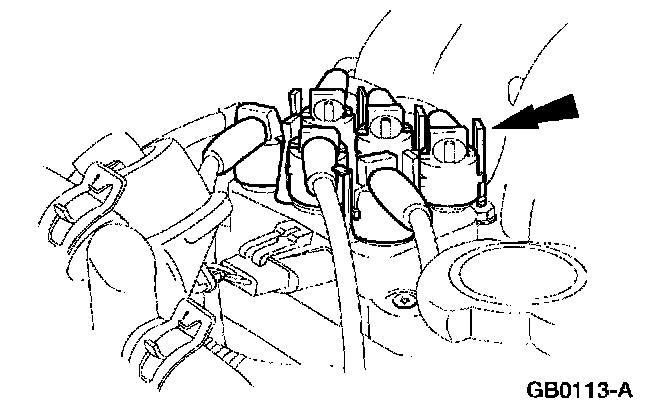

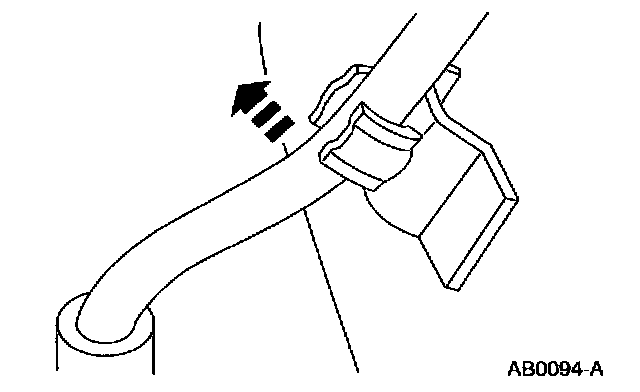

2. Squeeze the locking tabs and twist while pulling upward to remove the spark plug wires from the ignition coil.







3. Remove the spark plug wires.


INSTALLATION
1. To install, reverse the removal procedure.

CAUTION: Be sure to orient the spark plug boots so the spark plug wires do not contact the exhaust manifold.

NOTE: Apply Silicone Brake Caliper Grease and Dielectric Compound D7AZ-19A331-A or equivalent meeting Ford specification ESE-M1C171-A to the inside of the spark plug and ignition coil boots of the spark plug wire.
