Cylinder Head Assembly

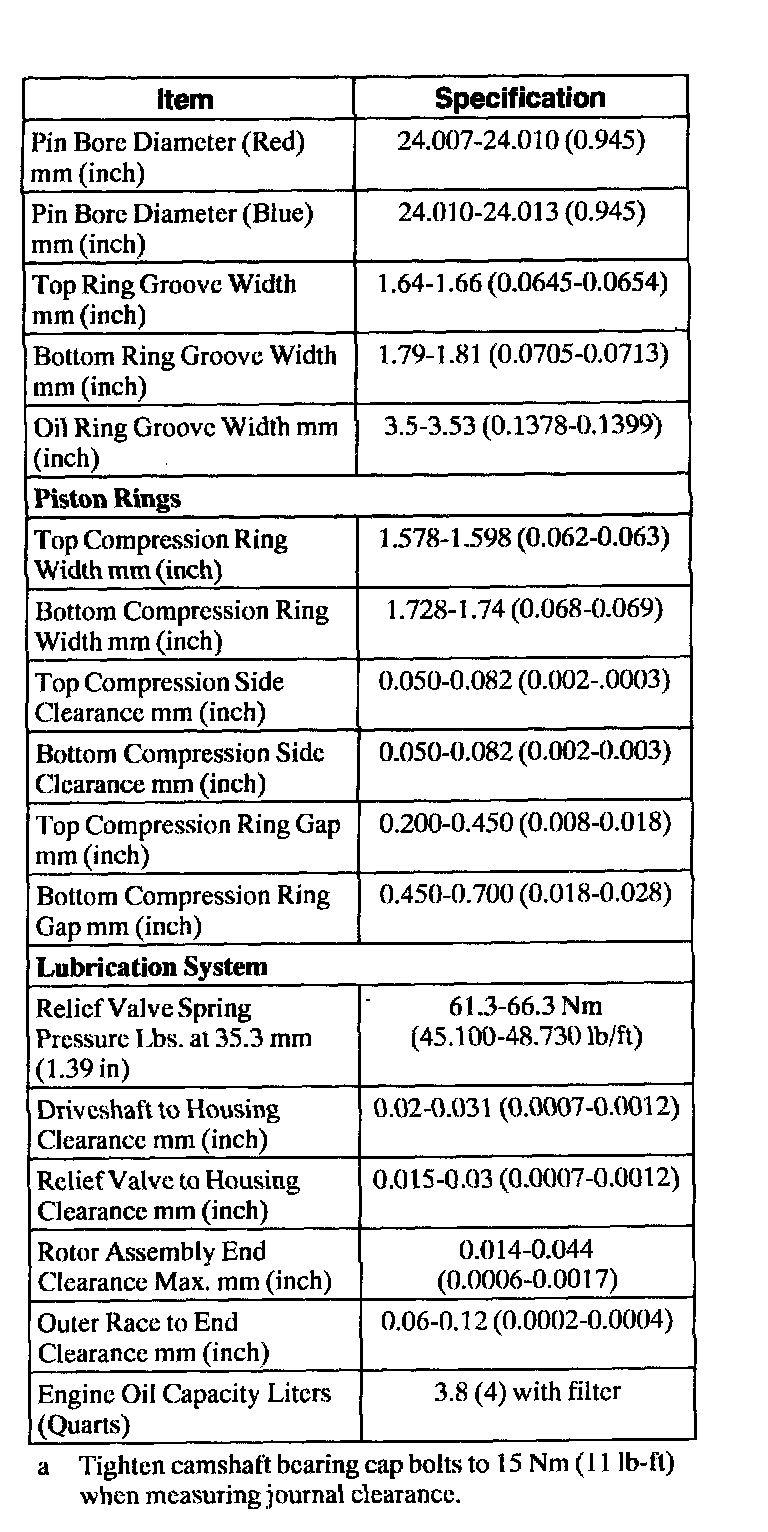

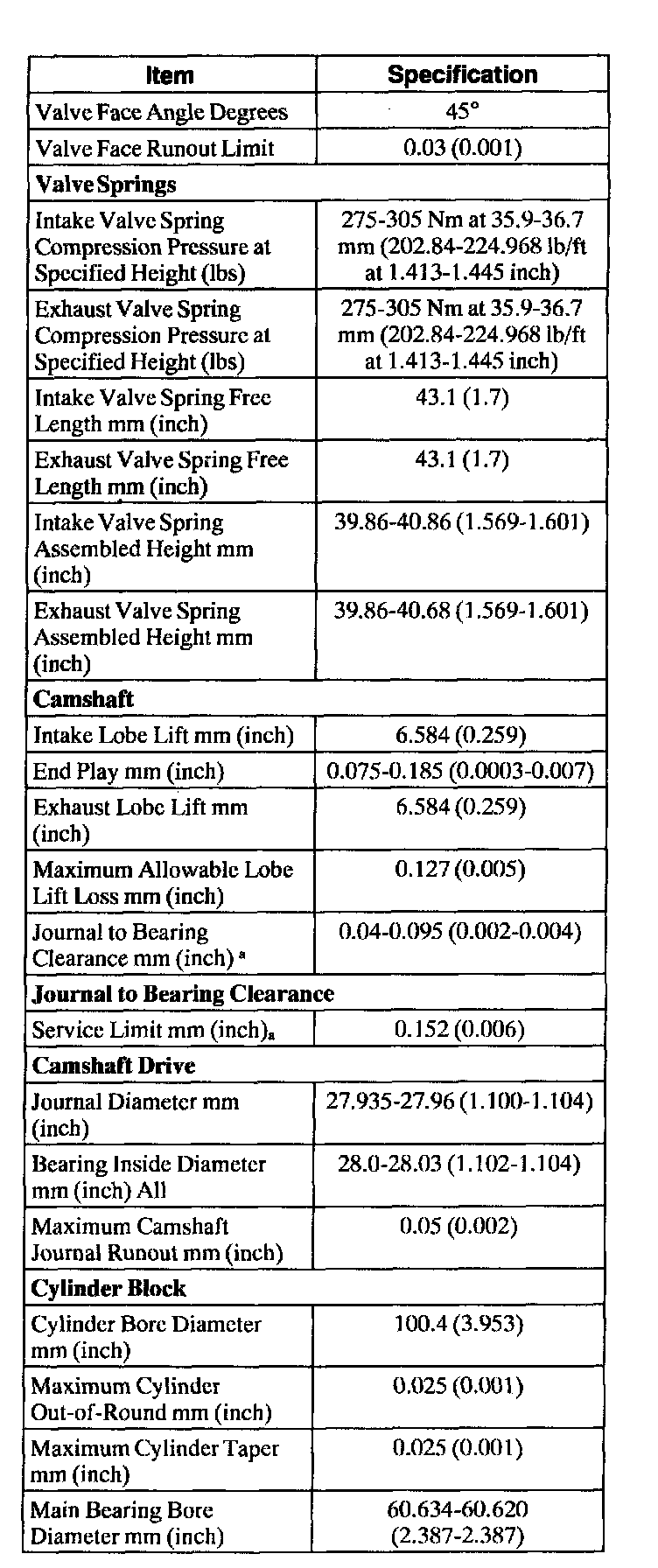

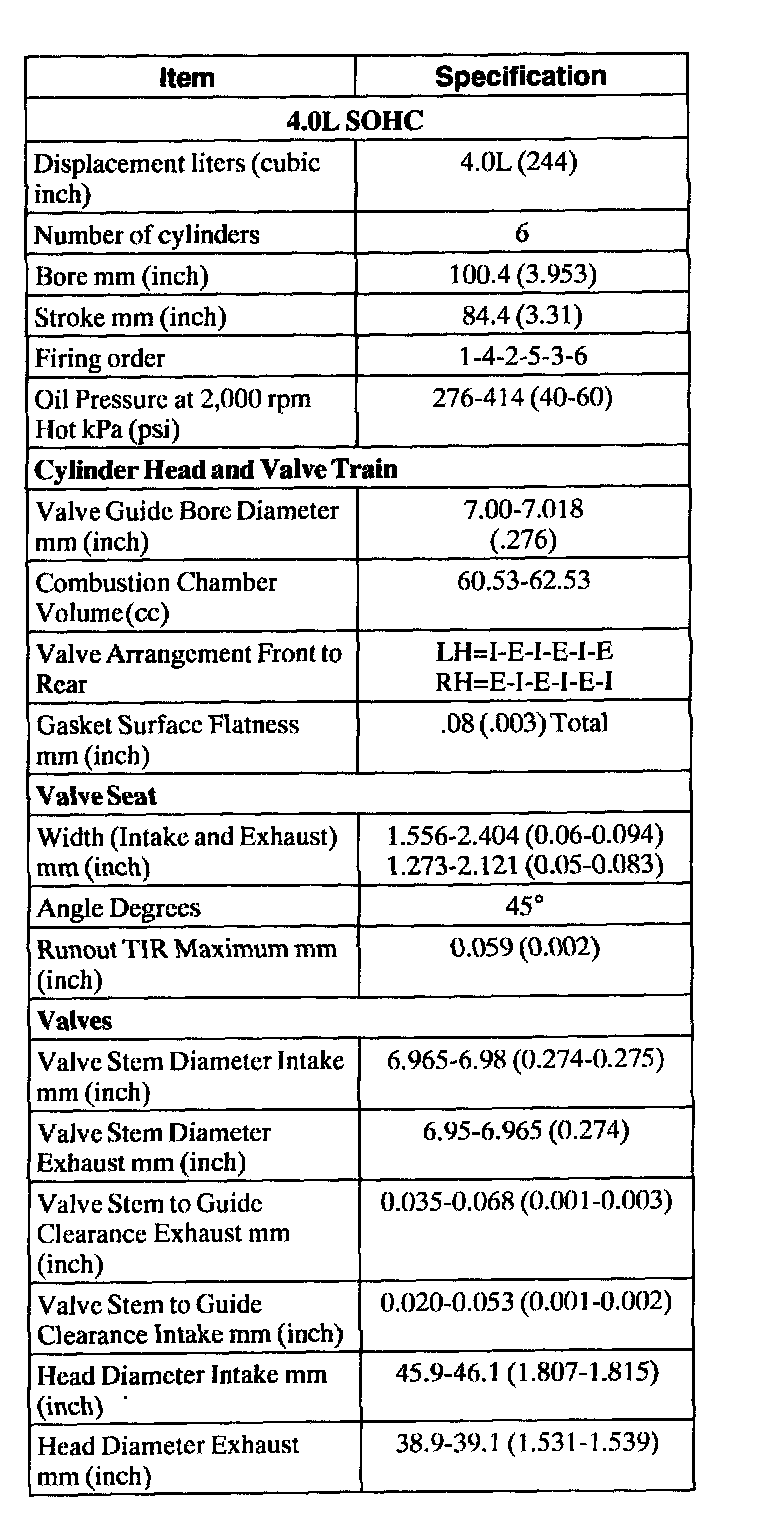

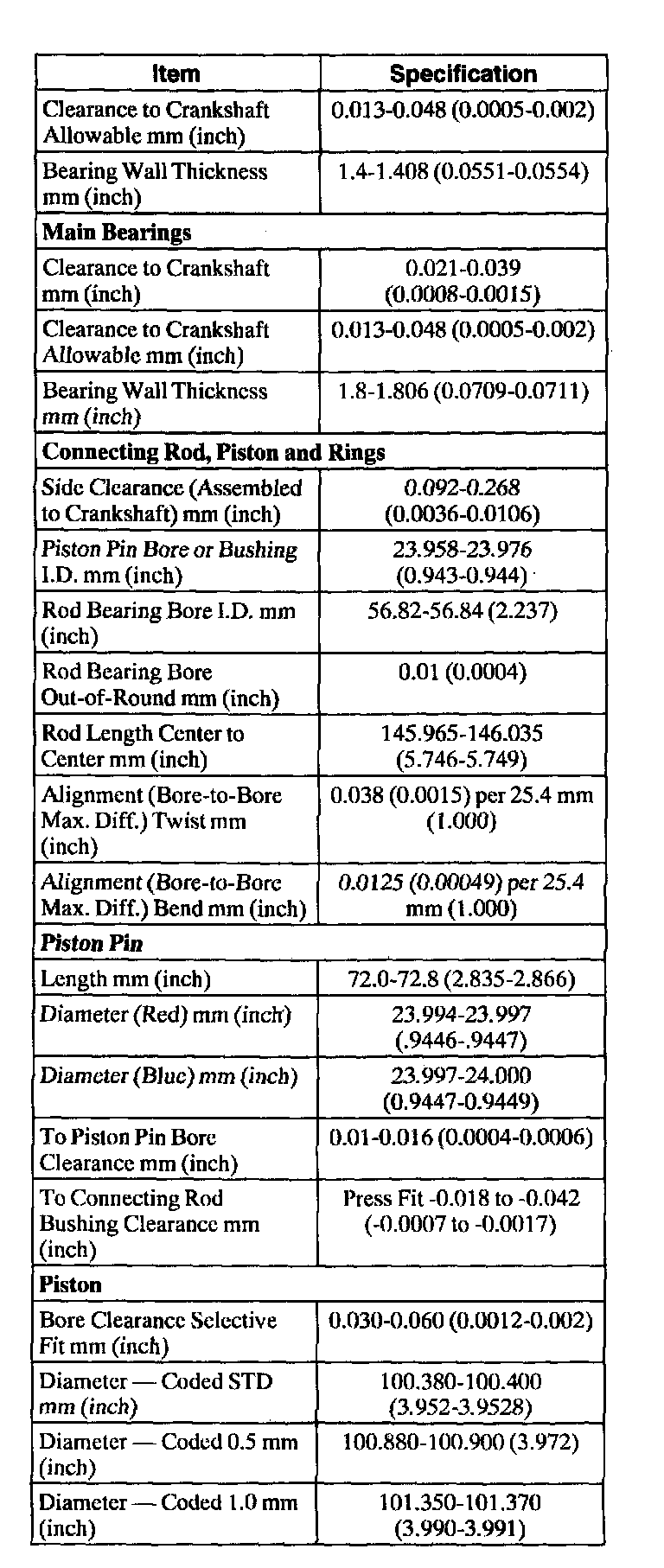

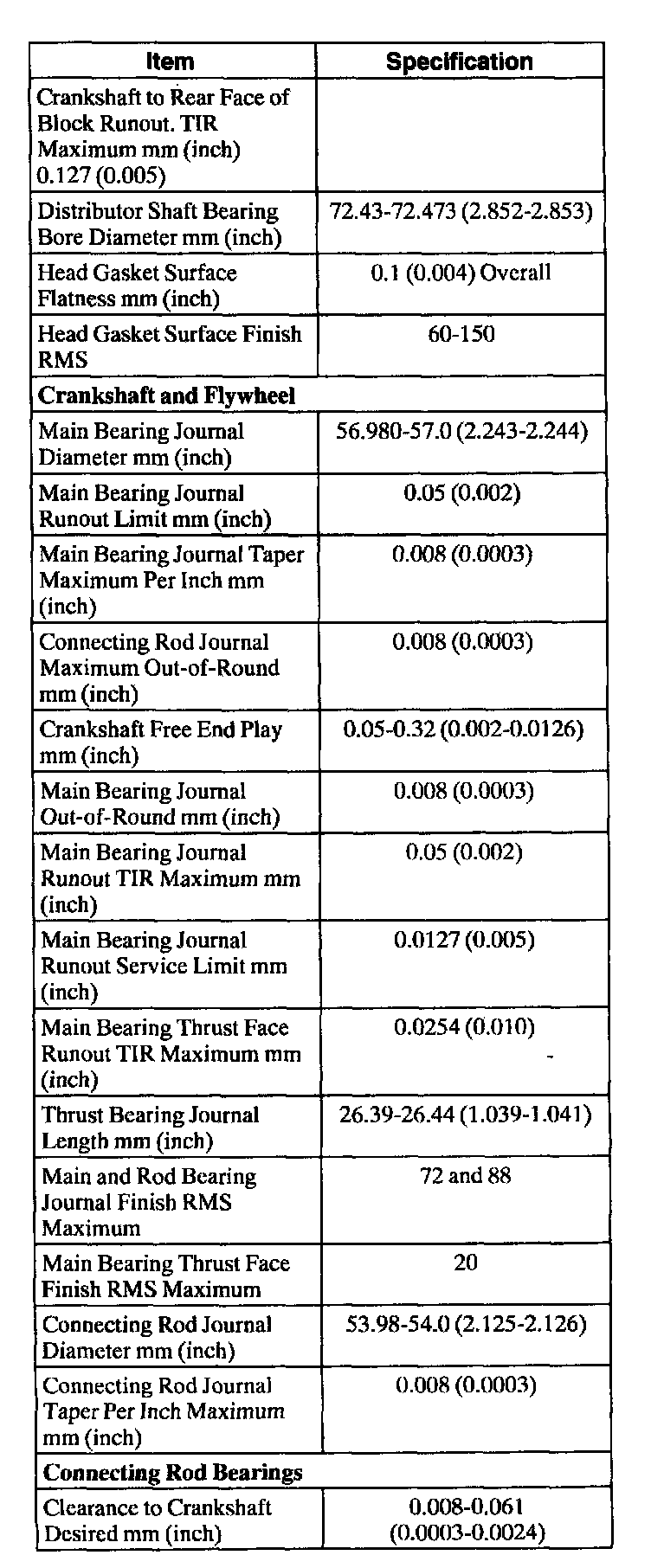

ENGINE GENERAL SPECIFICATIONS

TIGHTENING SPECIFICATIONS

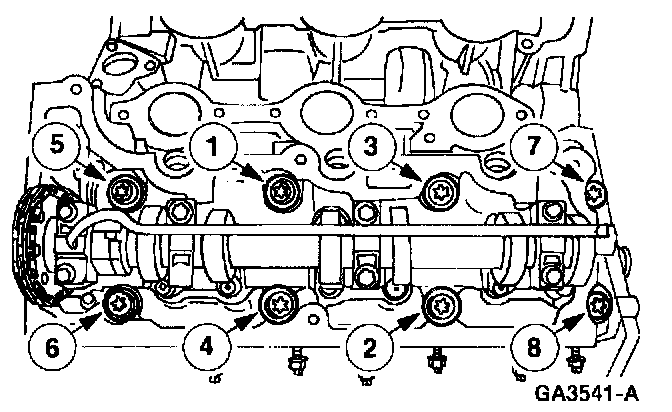

Note: The LH is shown, the RH is similar.

Install the eight 12 mm bolts and tighten to 35 Nm (26 ft. lbs.) in the sequence shown.





Note: The LH is shown, the RH is similar.

Install the two 8 mm bolts.





Note: The LH is shown, the RH is similar.

Tighten the eight 12 mm bolts in the sequence shown in two stages.
- Stage 1: Tighten 90 degrees.
- Stage 2: Tighten an additional 90 degrees.
