General Module

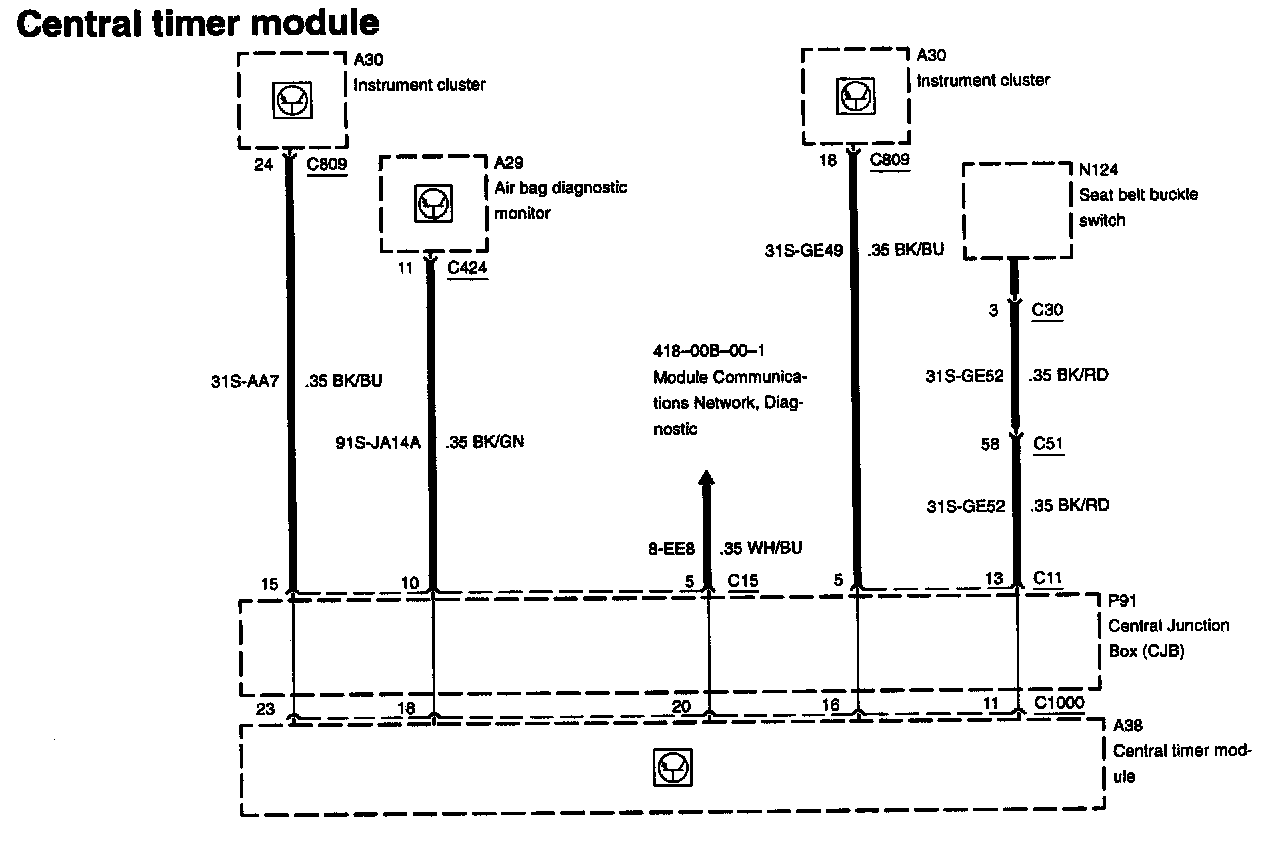

DETAILED DIAGRAMS (Central Timer Module)Diagram 419-10-00-1:

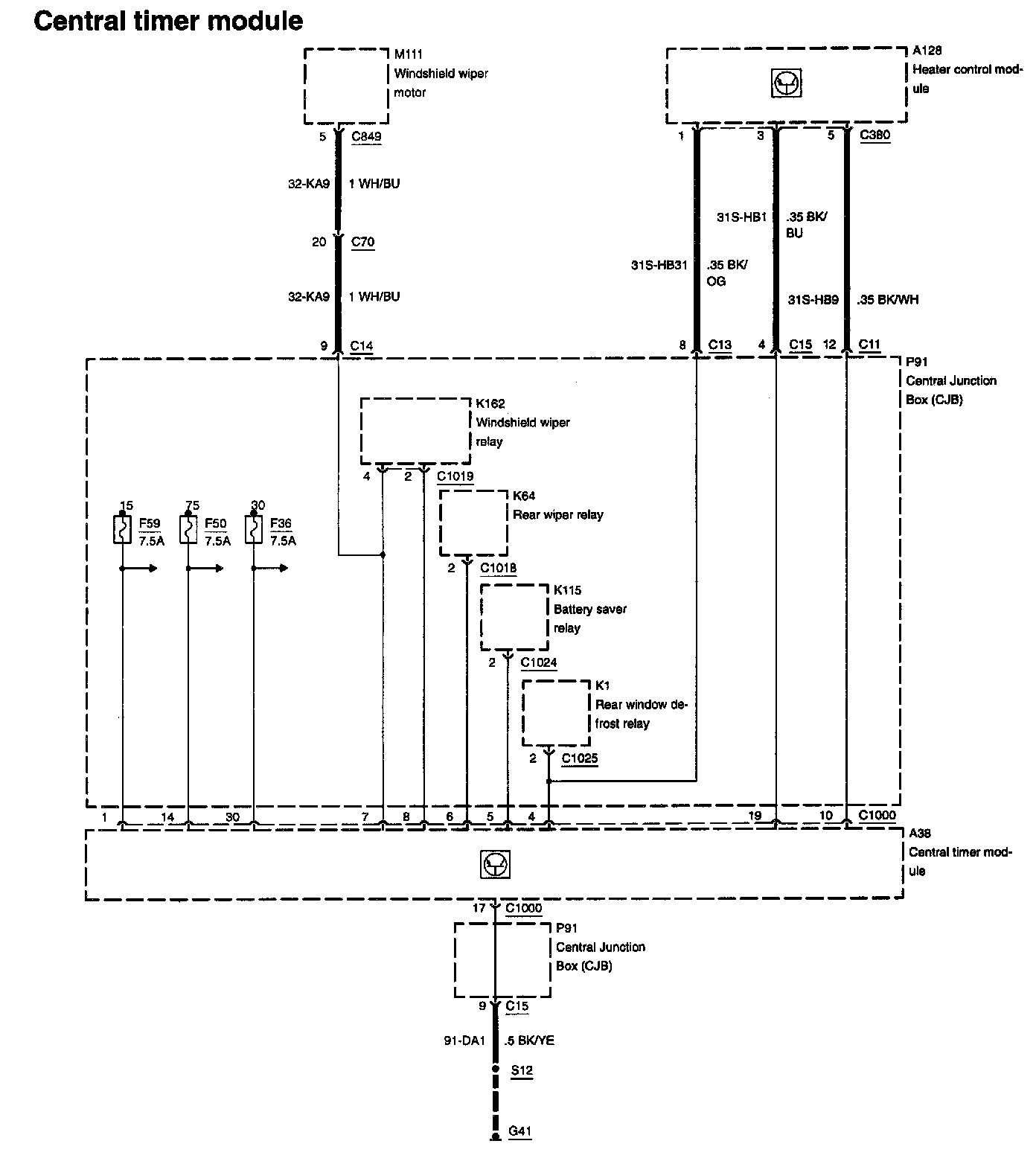

Diagram 419-10-00-2:

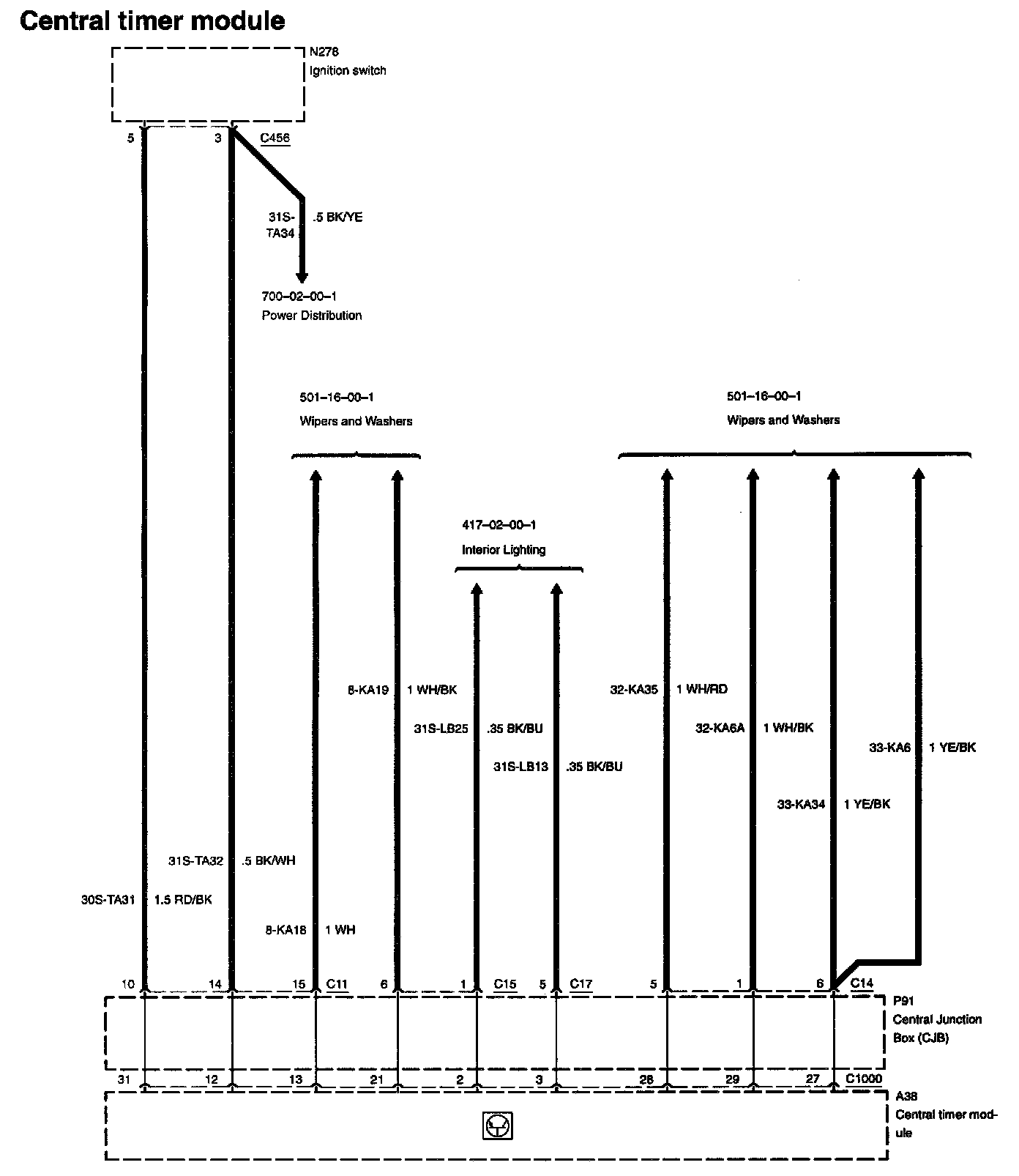

Diagram 419-10-00-3:

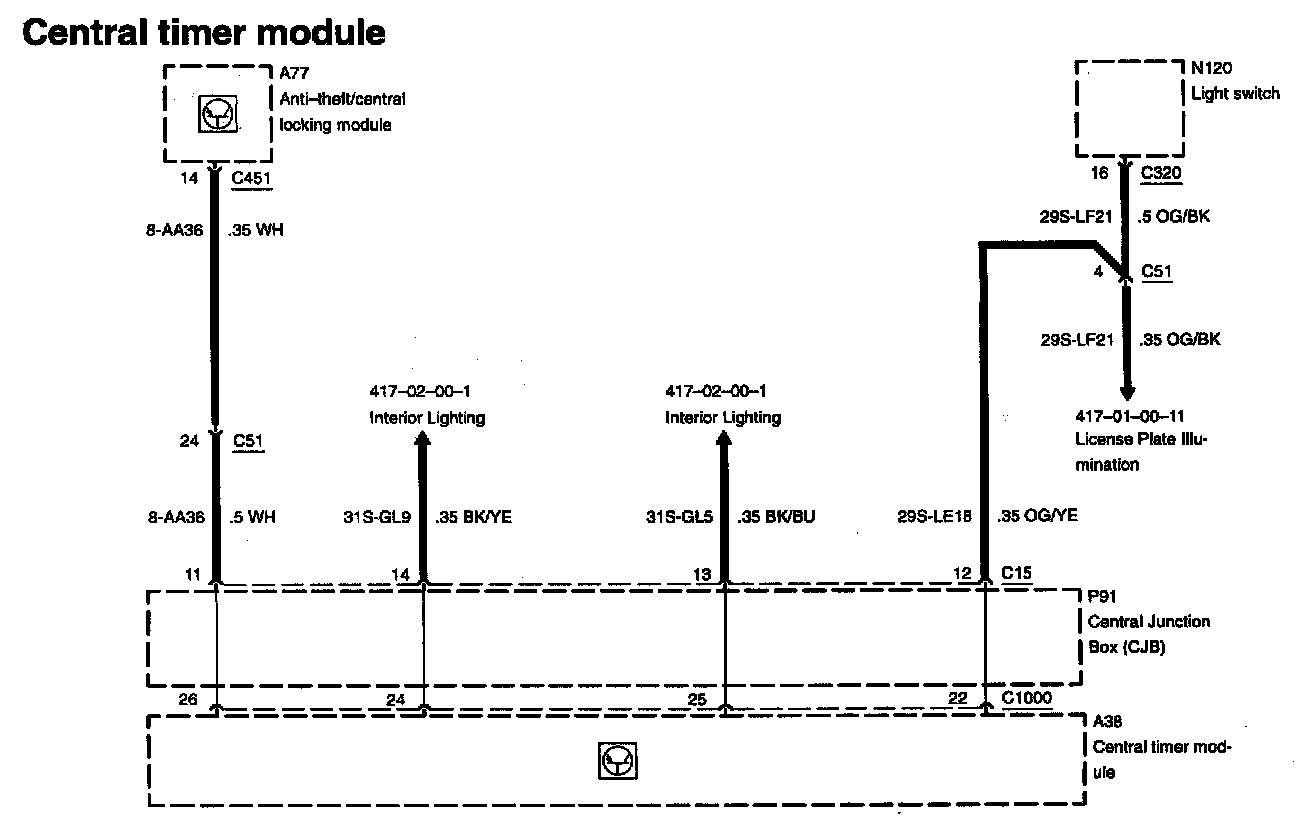

Diagram 419-10-00-4:
RELATED DIAGRAMS

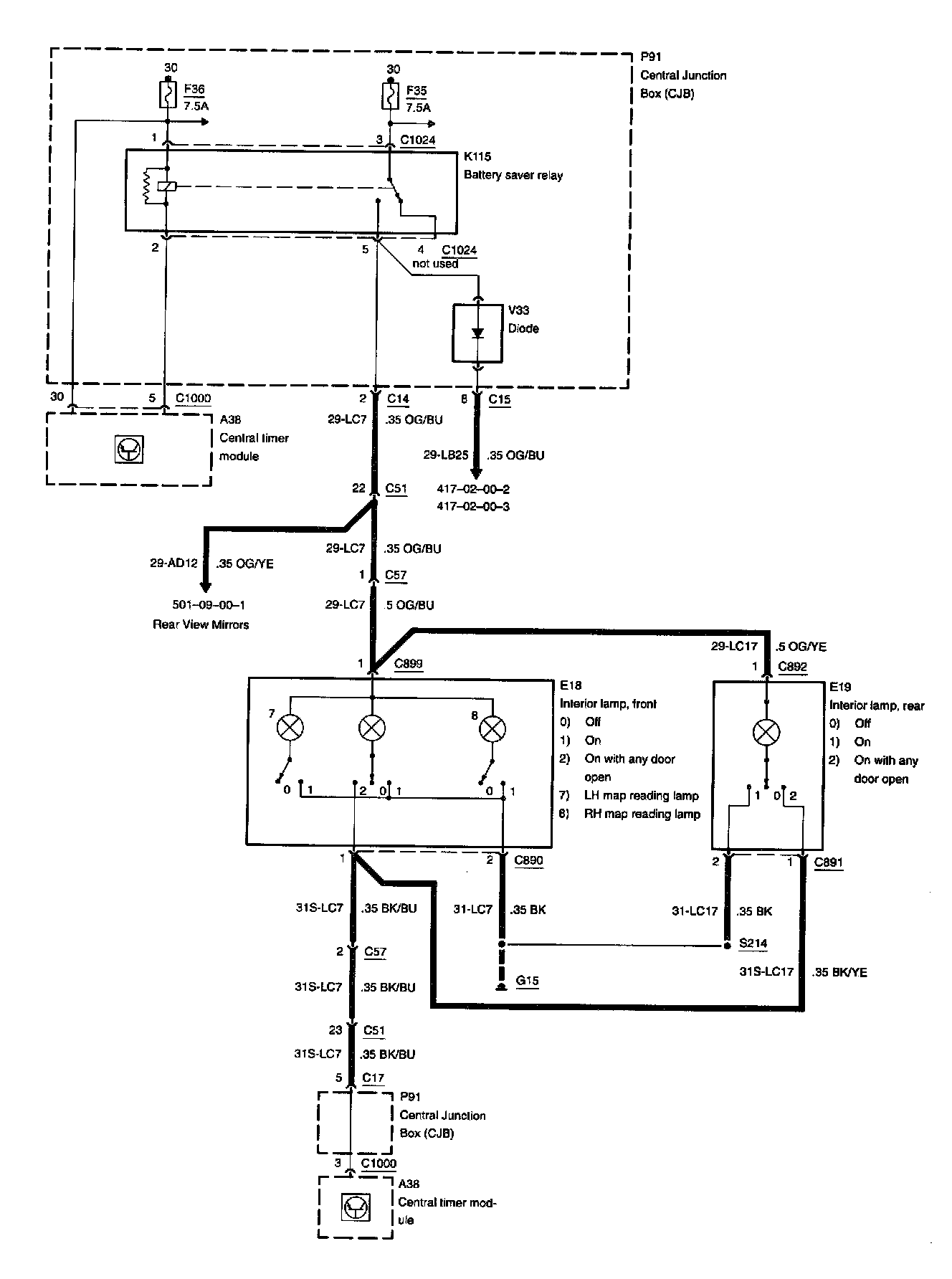

Diagram 417-02-00-1:

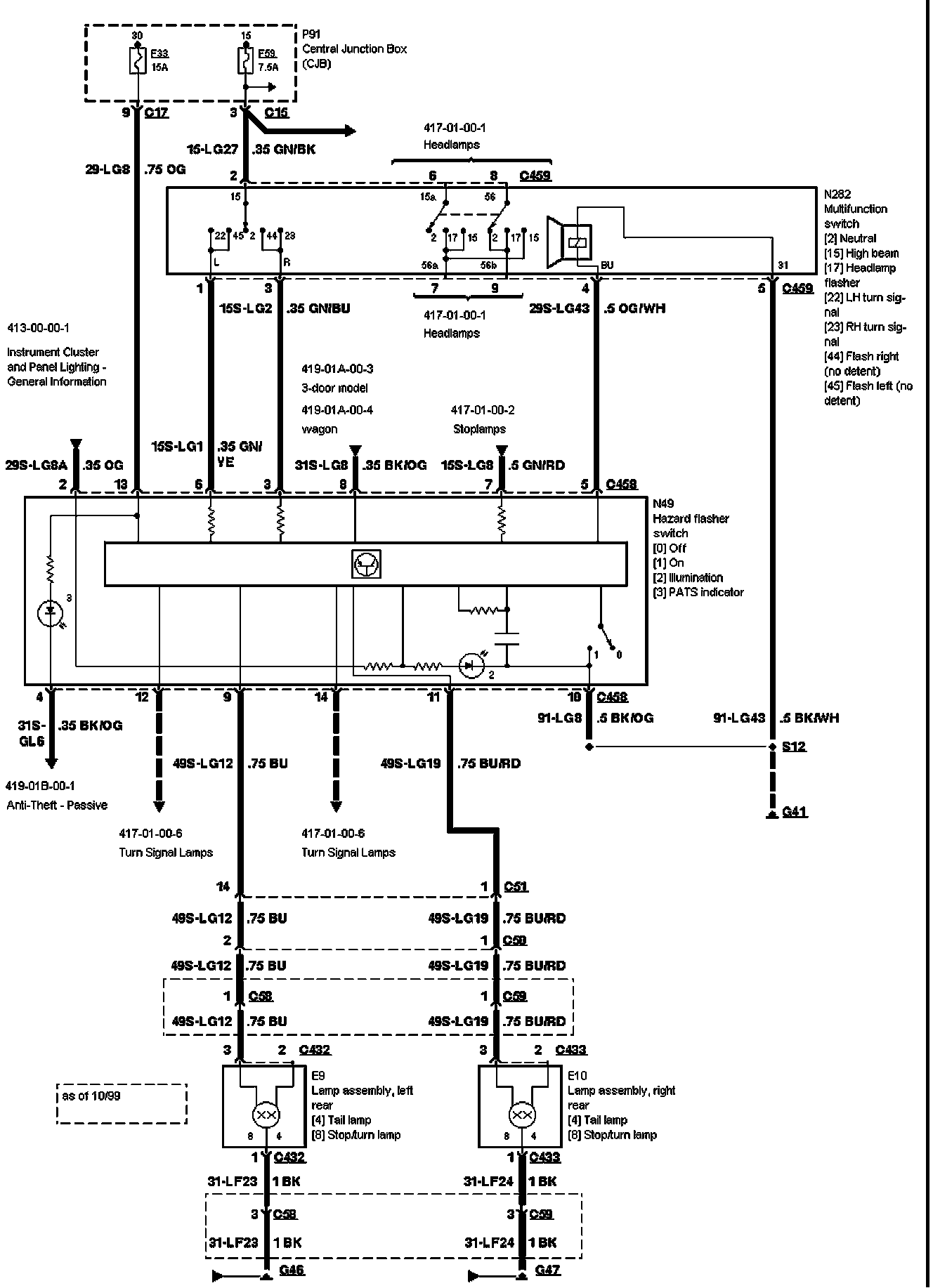

417-01-00-011 Exterior Lighting, Headlamps Turn Signal Lamps, rear, 3-door model, wagon:

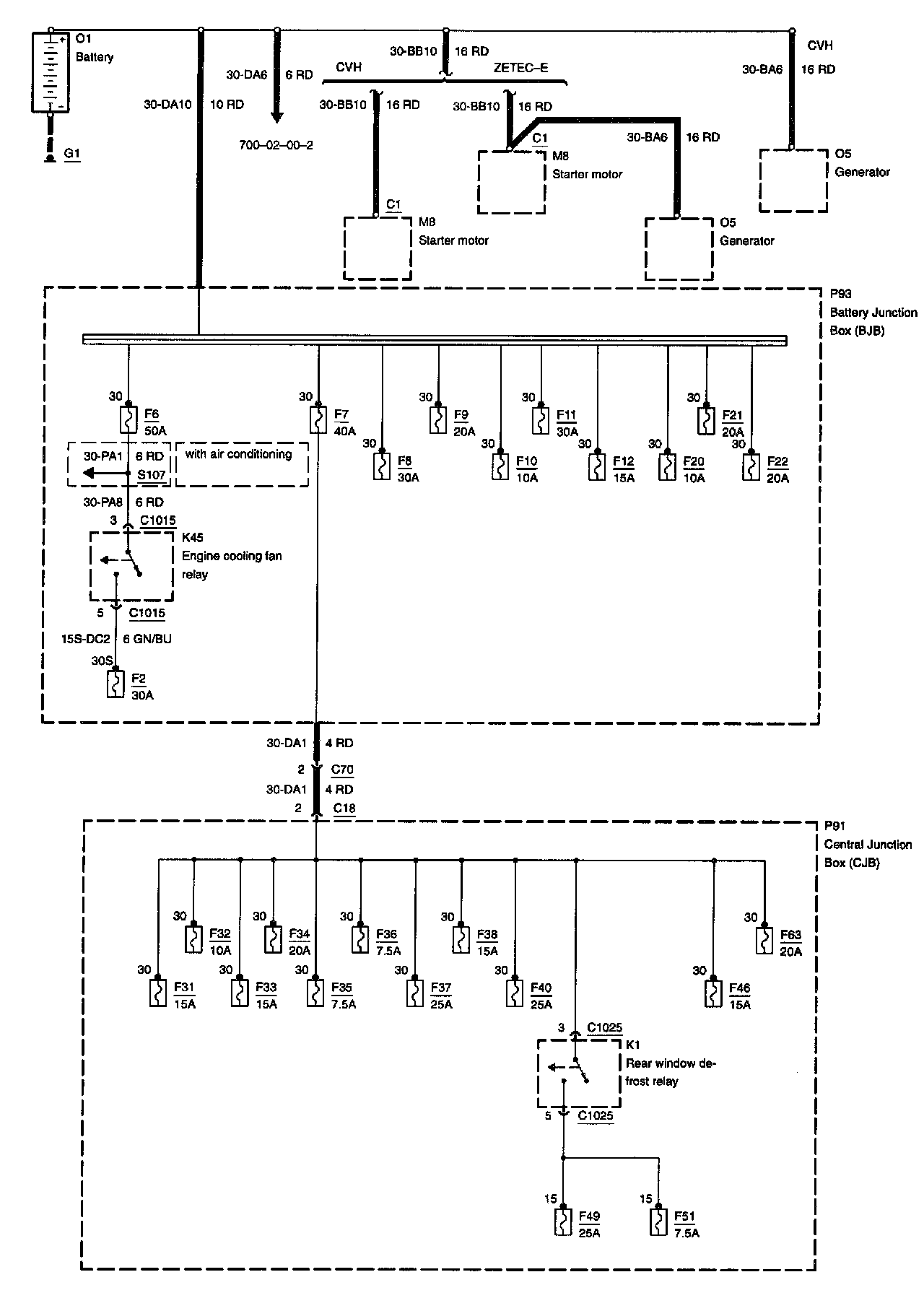

Diagram 700-02-00-1:

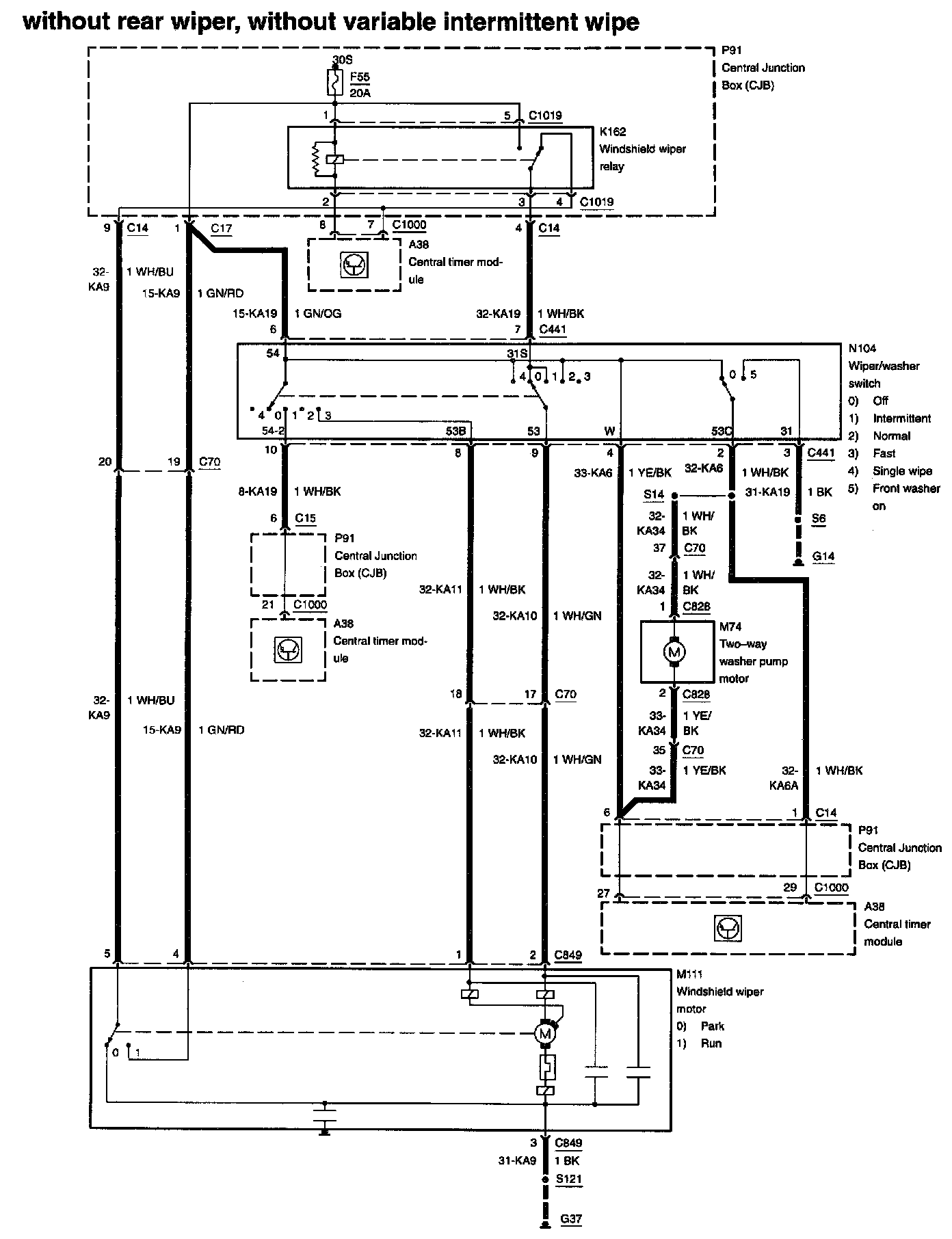

Diagram 501-16-00-1:

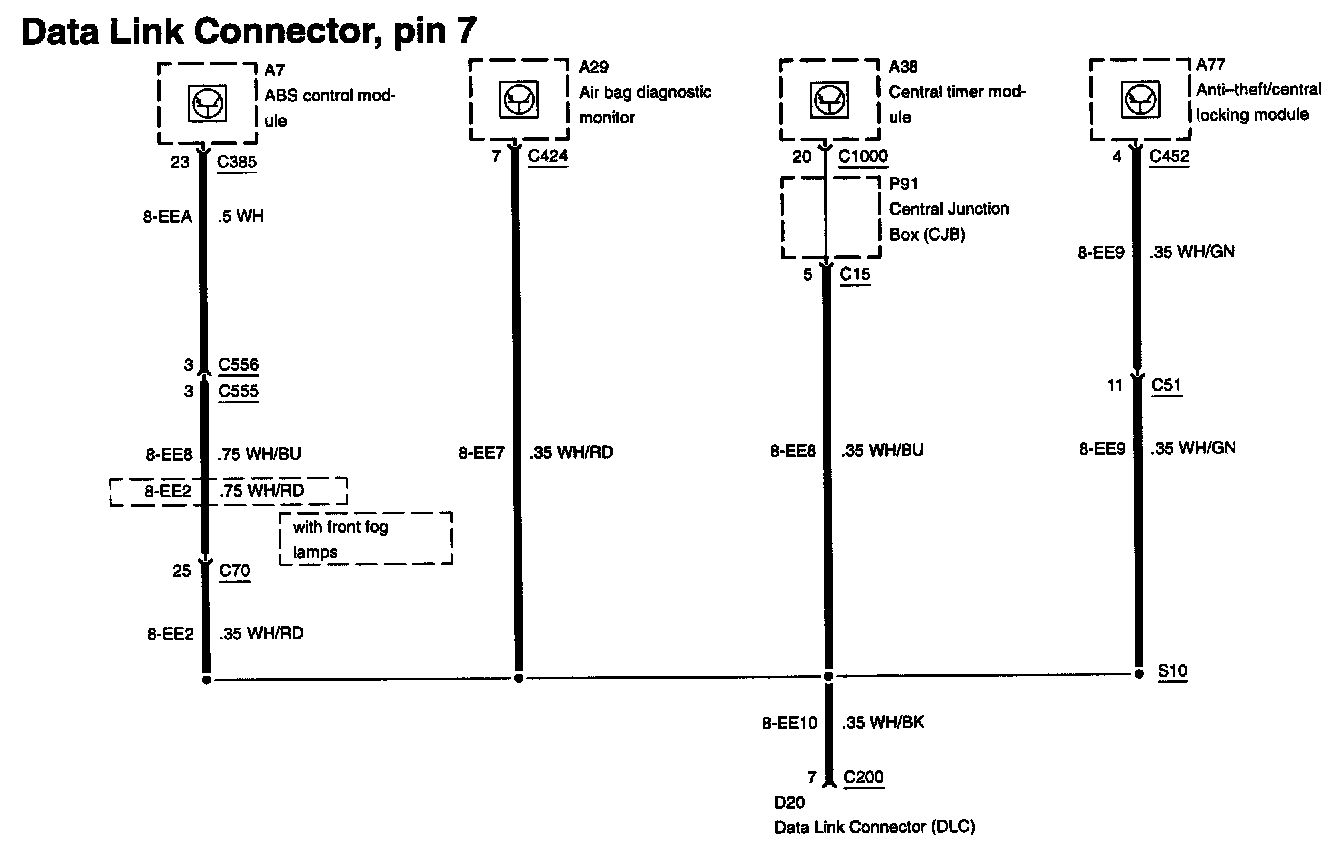

Diagram 418-00B-00-1:
