Component Locations

Use illustrations for component locations. See Fig 1 and Fig 2 .

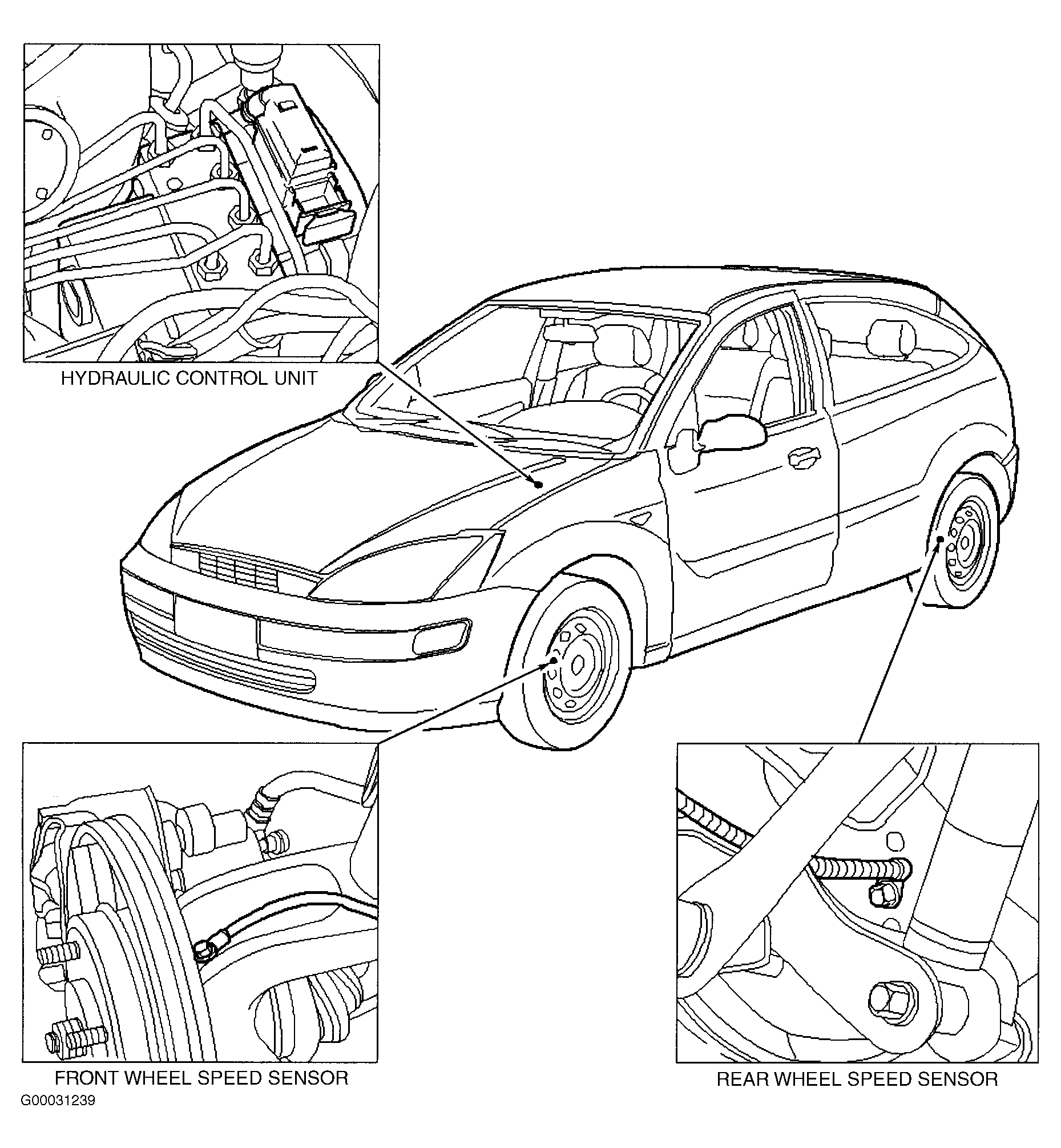

Fig 1: ABS Component Locations

Courtesy of FORD MOTOR CO.

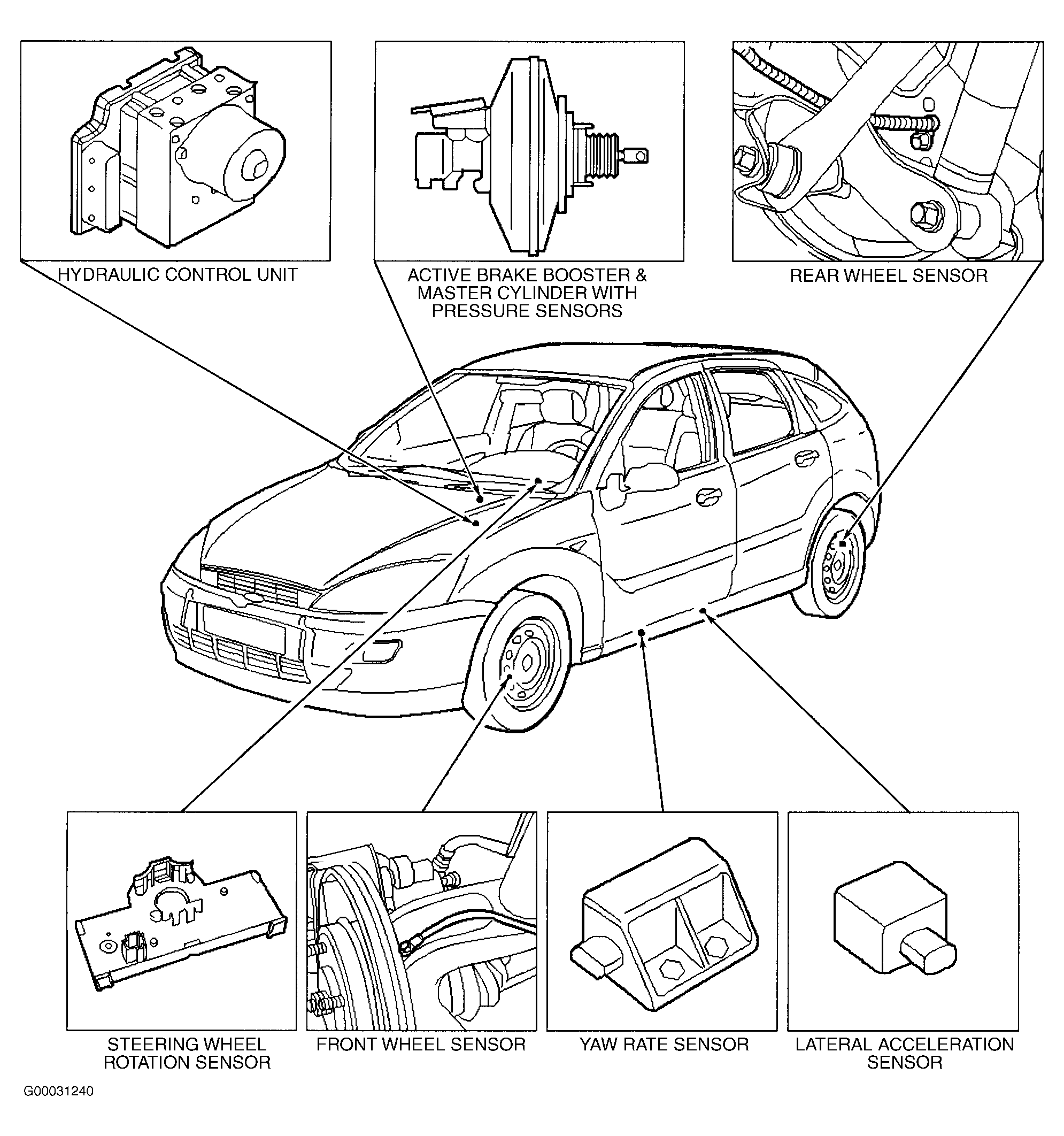

Fig 2: TCS Component Locations

Courtesy of FORD MOTOR CO.
