Passenger's Window/Door Lock Switch

Remove passenger's window/door lock switch. Check continuity between appropriate switch terminals with switch in appropriate position. See PASSENGER'S WINDOW/DOOR LOCK SWITCH TESTING table. See Fig 1 . If continuity is not as specified, replace passenger's window/door lock switch.

PASSENGER'S WINDOW/DOOR LOCK SWITCH TESTING

Switch Position

⁽¹⁾ Continuity Between Terminals No.

Window

Down

6 & 8; 7 & 10

Neutral

6 & 9; 7 & 10

6 & 9; 8 & 10

Lock

2 & 3; 4 & 5

Neutral

⁽²⁾ 1 & 2; 4 & 5

Unlock

1 & 2; 3 & 4

⁽¹⁾	Continuity should never exist between terminals No. 7 and 8 or between 8 and 9.

⁽²⁾	With door lock switches at rest, continuity should not exist between terminals No. 1 and 3 or between terminals No. 3 and 5.

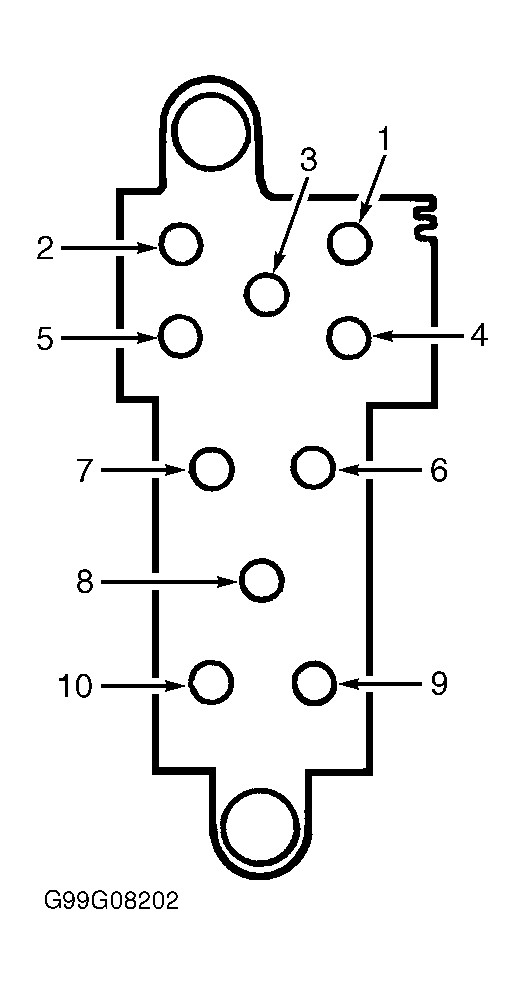

Fig 1: Identifying Passenger's Window/Door Lock Switch Terminals
