| Anchor Plate Bolts |
85 (115) |
| Axle Hub Nut |
258 (350) |
| Brake Caliper Bolt |
85 (115) |
| Brakeline Fittings |
14 (19) |
| Front Brake Flow Bolt |
30 (40) |
| Front Disc Brake Caliper Bleed Screws |
9-13 (12-18) |
| Front Disc Brake Caliper Bolts |
23 (31) |
| HCU Bracket-To-Frame Rail |
| Nut |
13 (18) |
| Bolt |
7-10 (10-14) |
| HCU-To-Bracket Nut |
13 (18) |
| Hydro-Booster-To-Firewall Nut (4.6L) |
15-20 (21-28) |
| Master Cylinder-To-Booster Nut |
19 (25) |
| Power Brake Booster Nuts |
19 (25) |
| Power Steering Hoses (4.6L) |
11-14 (14-20) |
| Rear Bleeder Screw |
15 (20) |
| Wheel Lug Nut |
85-105 (115-142) |
| INCH Lbs. (N.m) |

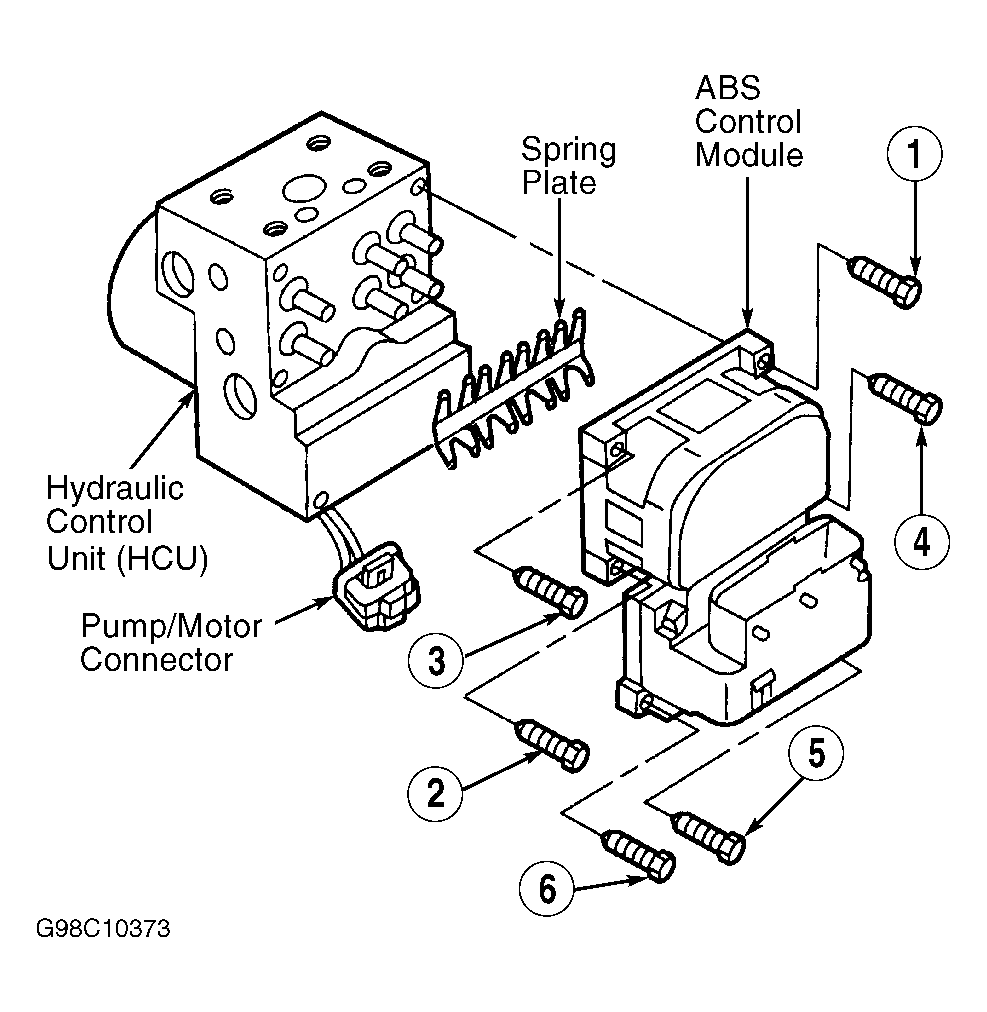

| ABS Control Module-To-HCU Screw |
21-30 (2.4-3.4) |
| Master Cylinder Bleeder Screw |
80 (9) |
| Rear Brake Pin Retainer Bolts |
80-106 (9-12) |
| Wheel Sensor Bolt |
62 (7) |
