Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

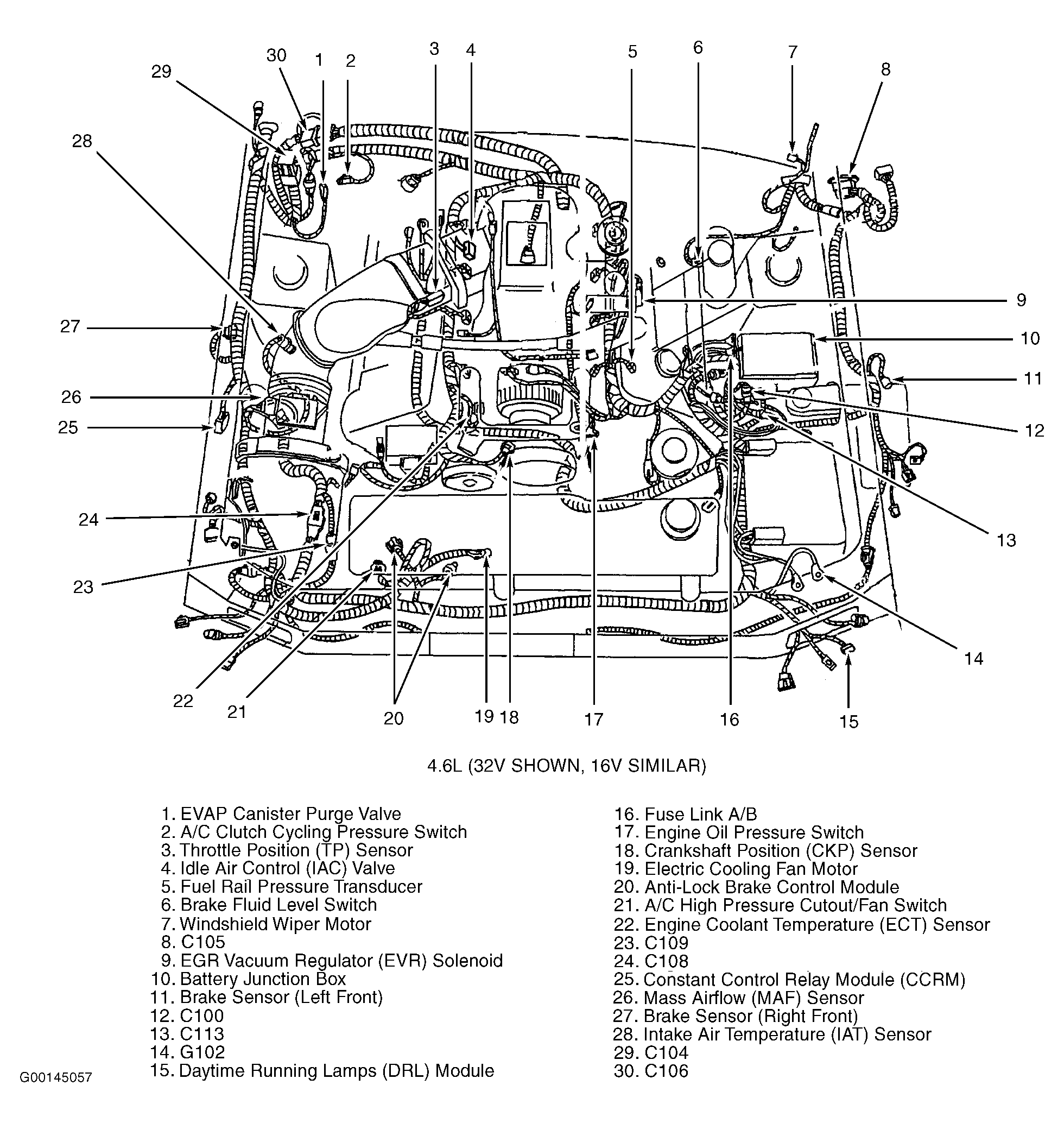

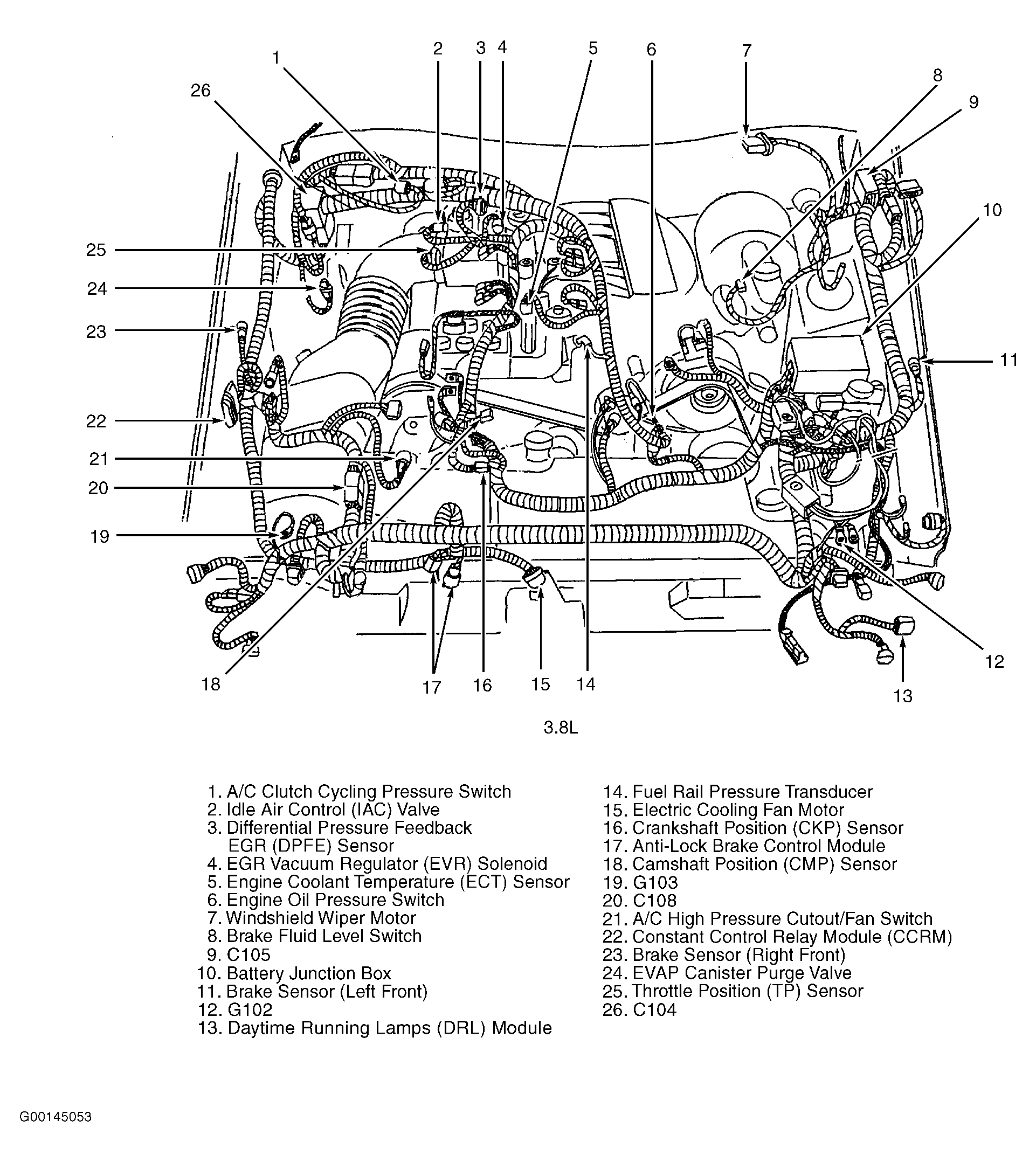

| Battery Junction Box (3.8L) | In left side of engine compartment, forward of strut tower. See Figure. |
| Battery Junction Box (4.6L) | In left side of engine compartment, forward of strut tower. See Figure. |

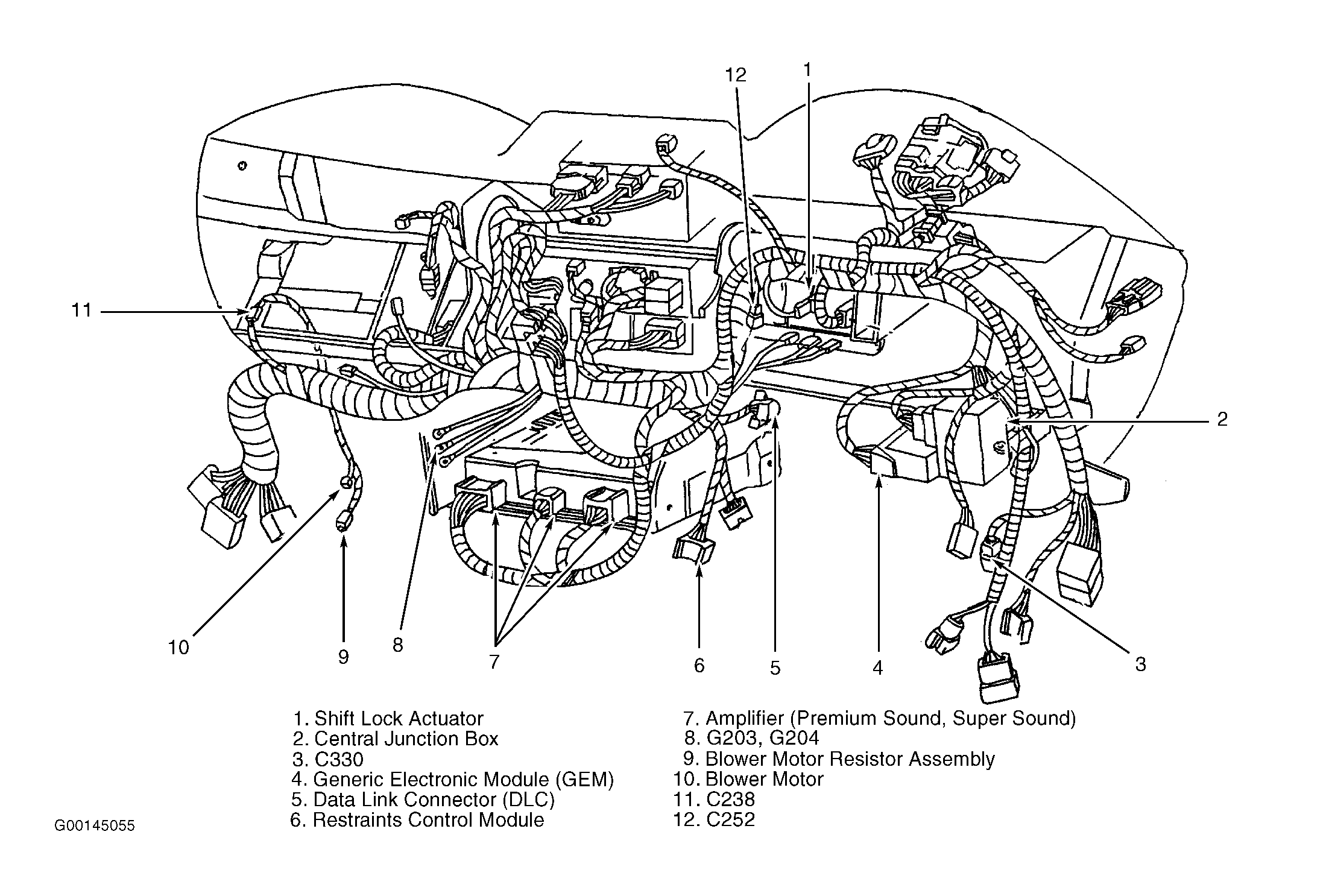

| Central Junction Box | Behind dash, left of steering column. See Figure. |
| Fuse Link "A" & "B" (3.8L) | On alternator rectifier system harness, near battery junction box. |
| Fuse Link "A" & "B" (4.6L) | On alternator rectifier system harness, near battery junction box. See Figure. |
| High Current Fuse Panel | In right side of engine compartment, on fender. |
| Relay Box | Behind left side of dash, near central junction box. |
