Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

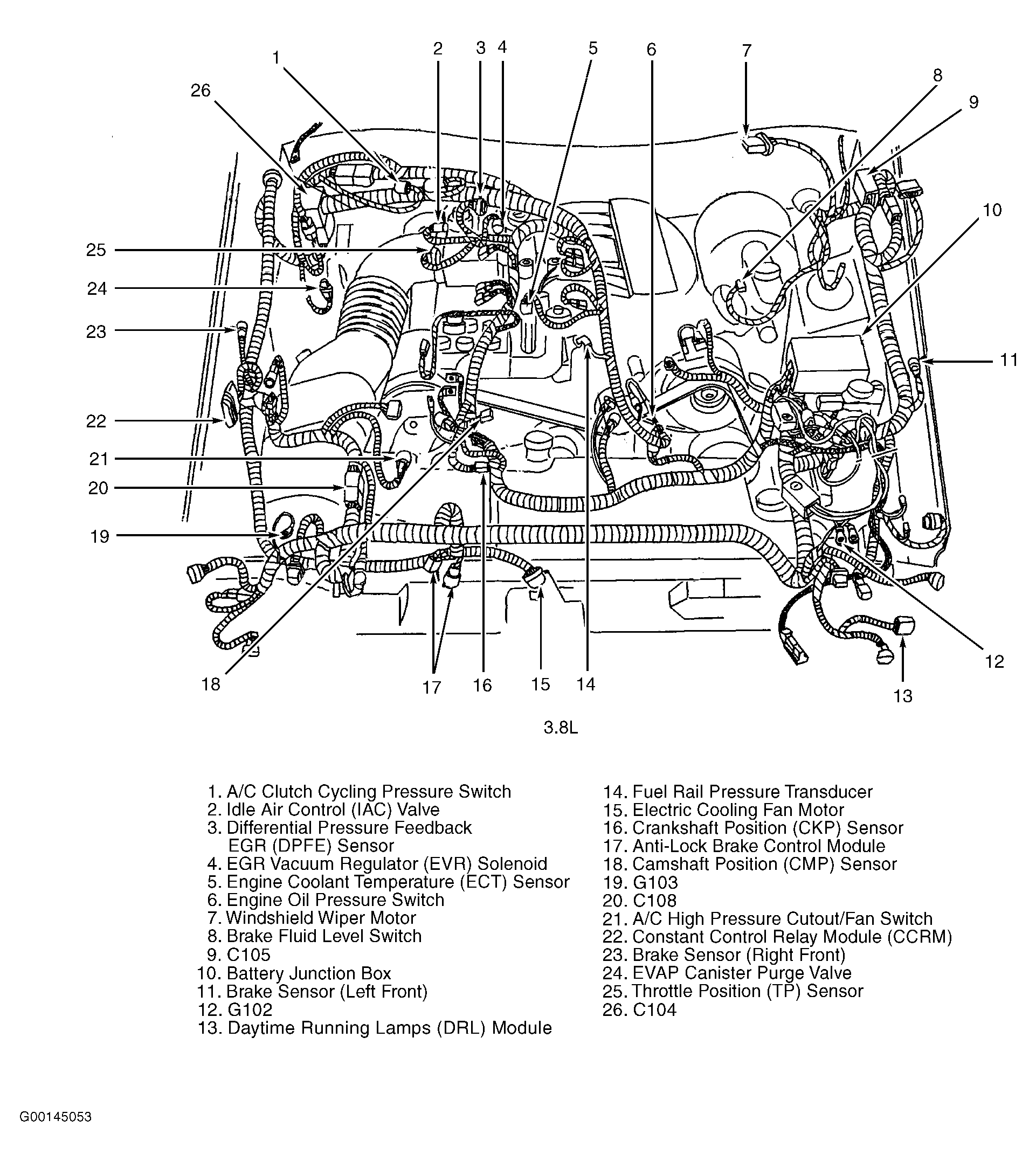

| Anti-Lock Brake Control Module (3.8L) | In right front of engine compartment, behind radiator. See Figure. |

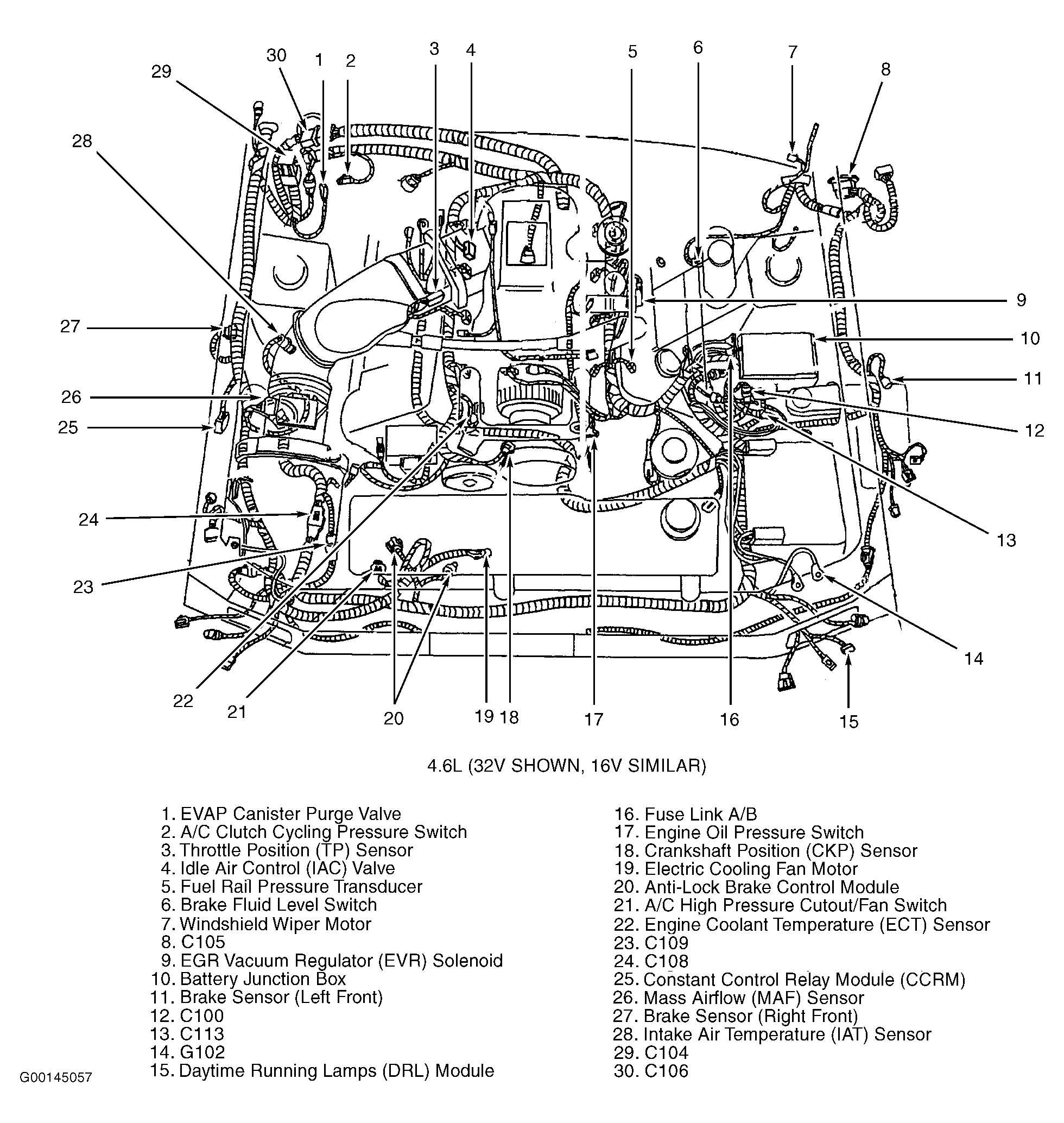

| Anti-Lock Brake Control Module (4.6L) | In right front of engine compartment, behind radiator. See Figure. |
| Constant Control Relay Module (CCRM) (3.8L) | Mounted on bracket, behind engine coolant reservoir. See Figure. |
| Constant Control Relay Module (CCRM) (4.6L) | Inside right front fender, behind air filter housing. See Figure. |
| Daytime Running Lamps (DRL) Module (3.8L) | In left front corner of engine compartment, below horns. See Figure. |
| Daytime Running Lamps (DRL) Module (4.6L) | In left front corner of engine compartment, below horns. See Figure. |

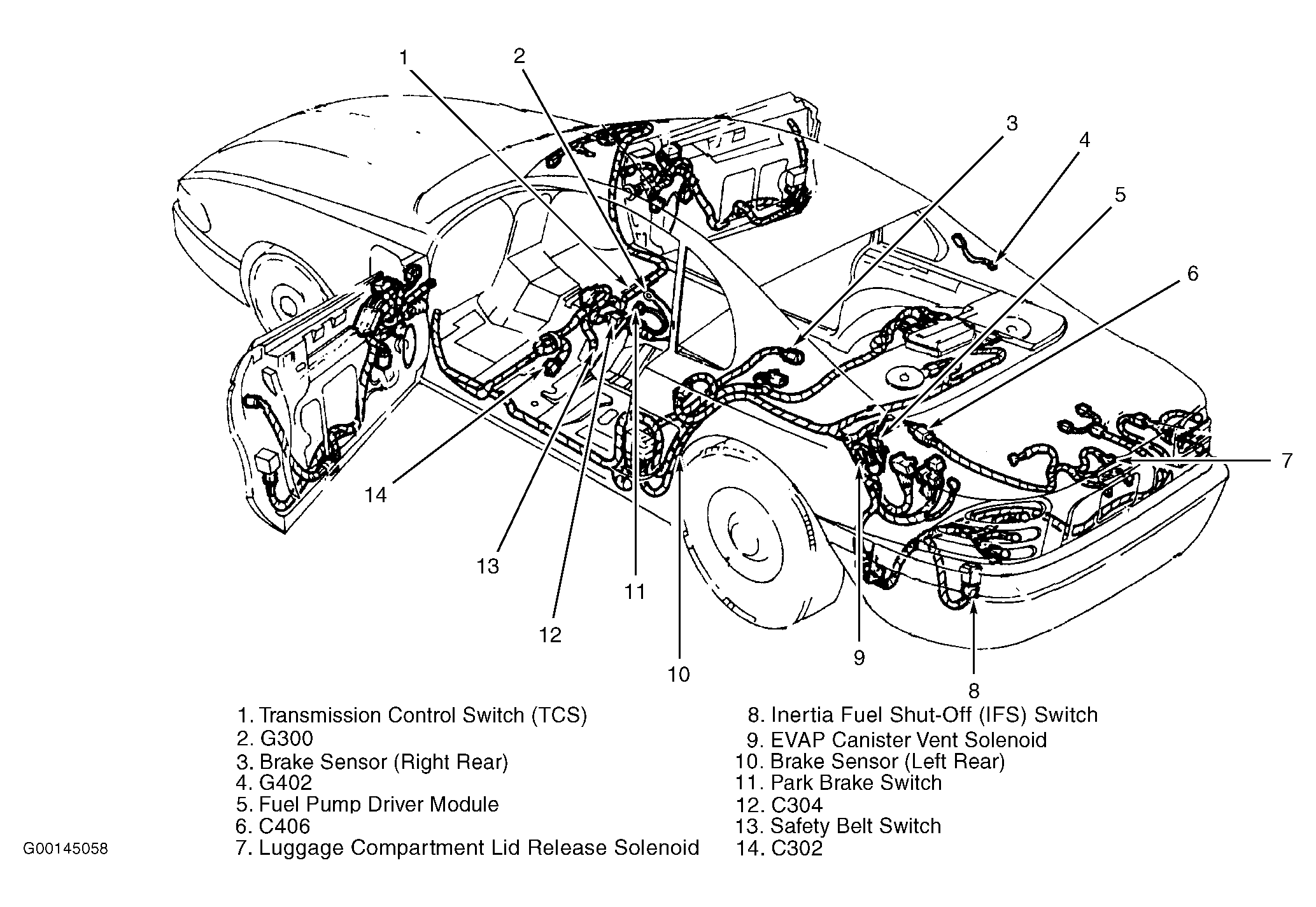

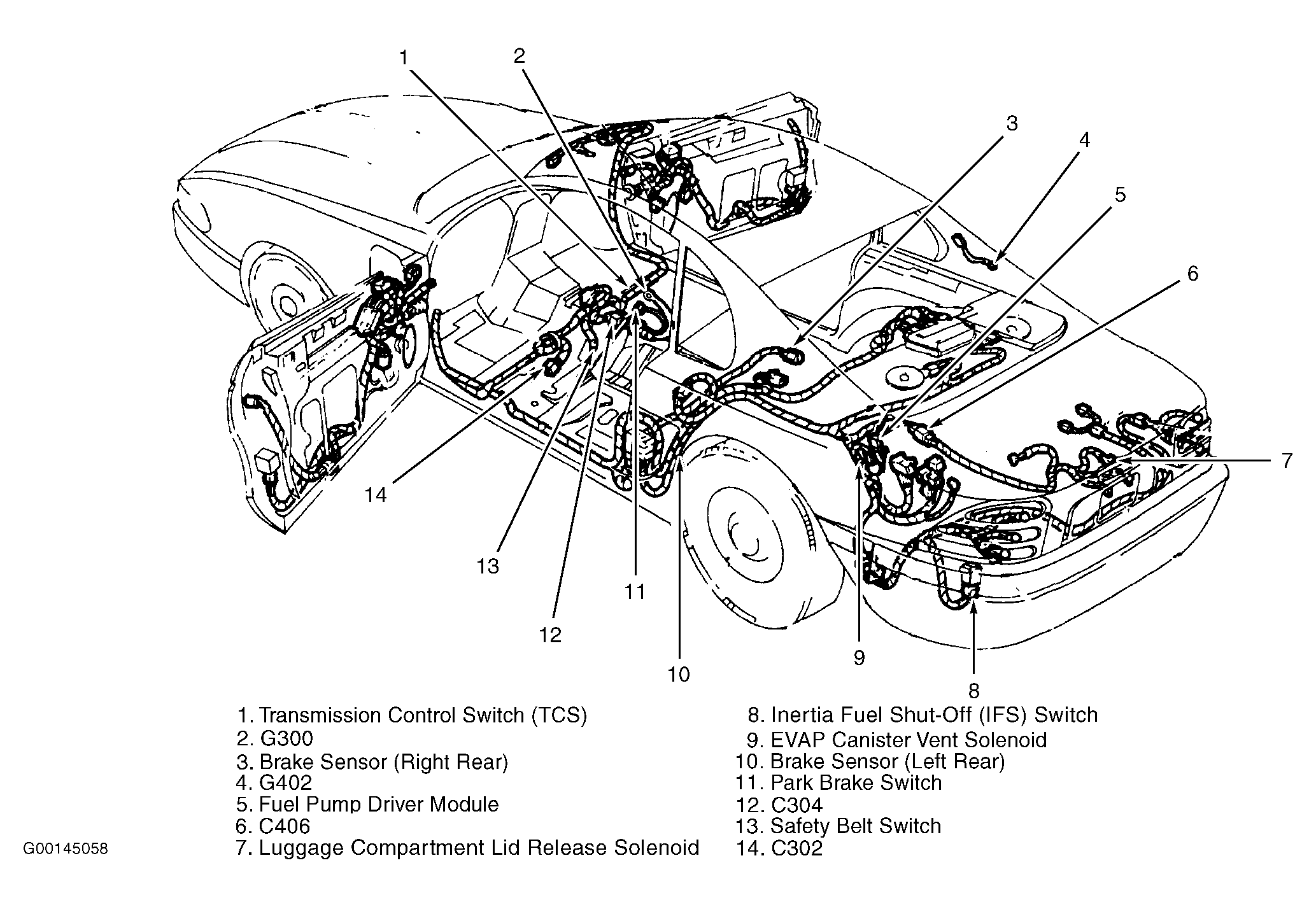

| Fuel Pump Driver Module | Underside of luggage compartment. See Figure. |

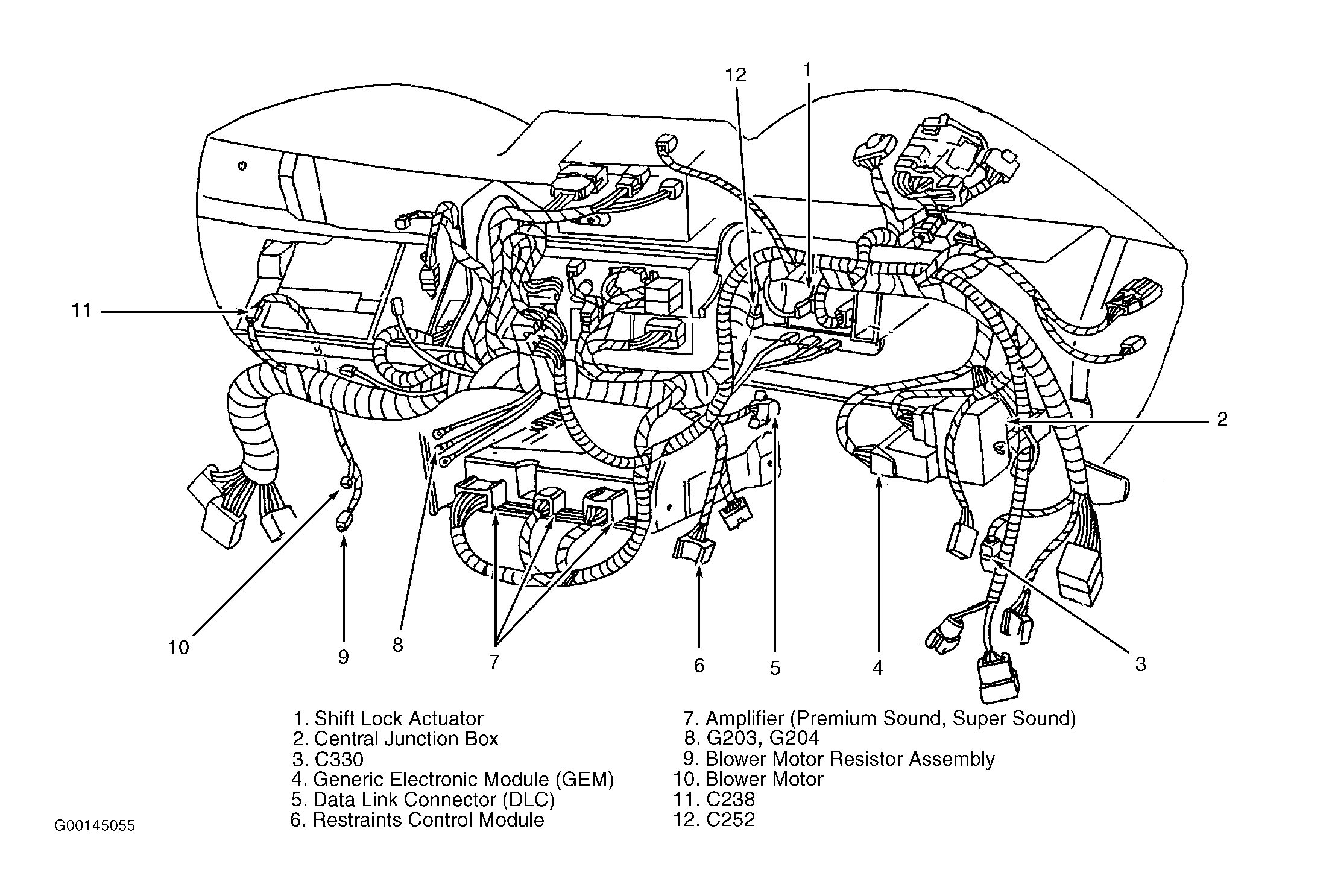

| Generic Electronic Module (GEM) | Below left side of dash. See Figure. |
| Passive Anti-Theft Transceiver Module | Underside of steering column. |
| Powertrain Control Module (PCM) | Behind right kick panel. |
| Restraints Control Module | Behind lower center of dash. See Figure. |
