General Module

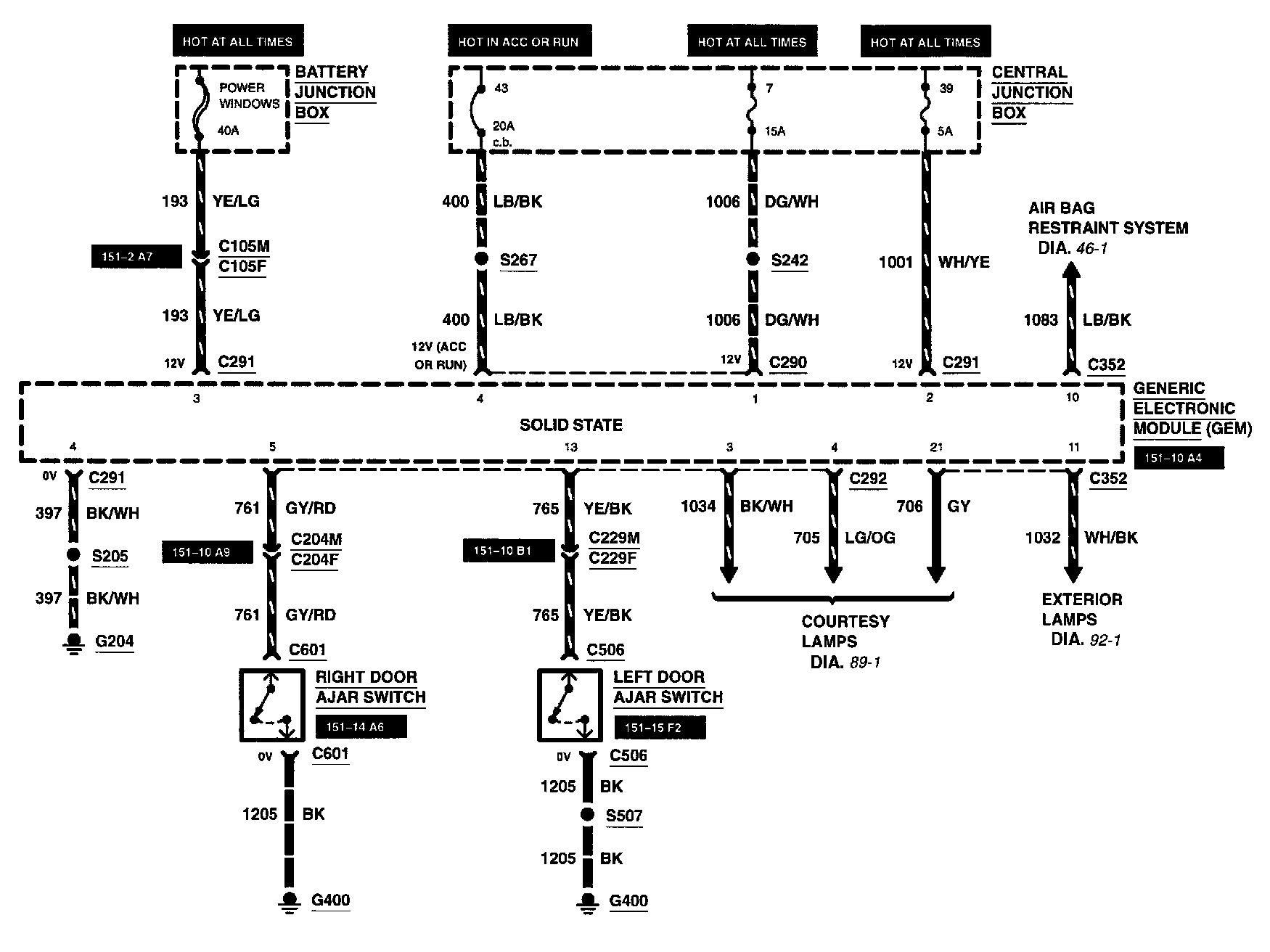

Diagram 59-1:

Battery Junction Box
Central Junction Box
Circuit Breaker 43
Fuse 7
Fuse 39
Fuse POWER WINDOWS
Generic Electronic Module
Left Door Ajar Switch
Right Door Ajar Switch

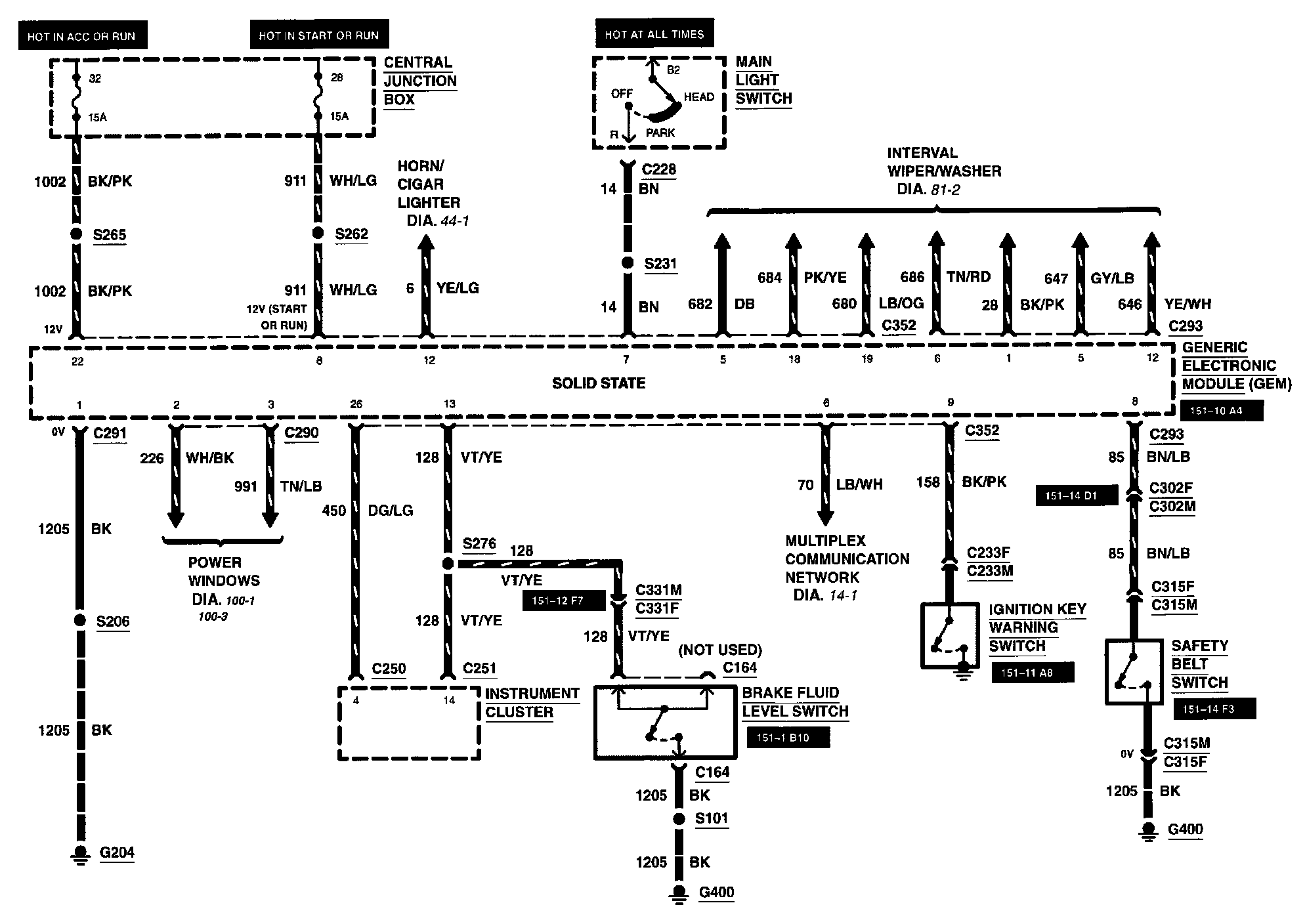

Diagram 59-2:

Brake Fluid Level Switch
Central Junction Box
Fuse 28
Fuse 32
Generic Electronic Module
Ignition Key Warning Switch
Instrument Cluster
Main Light Switch
Safety Belt Switch

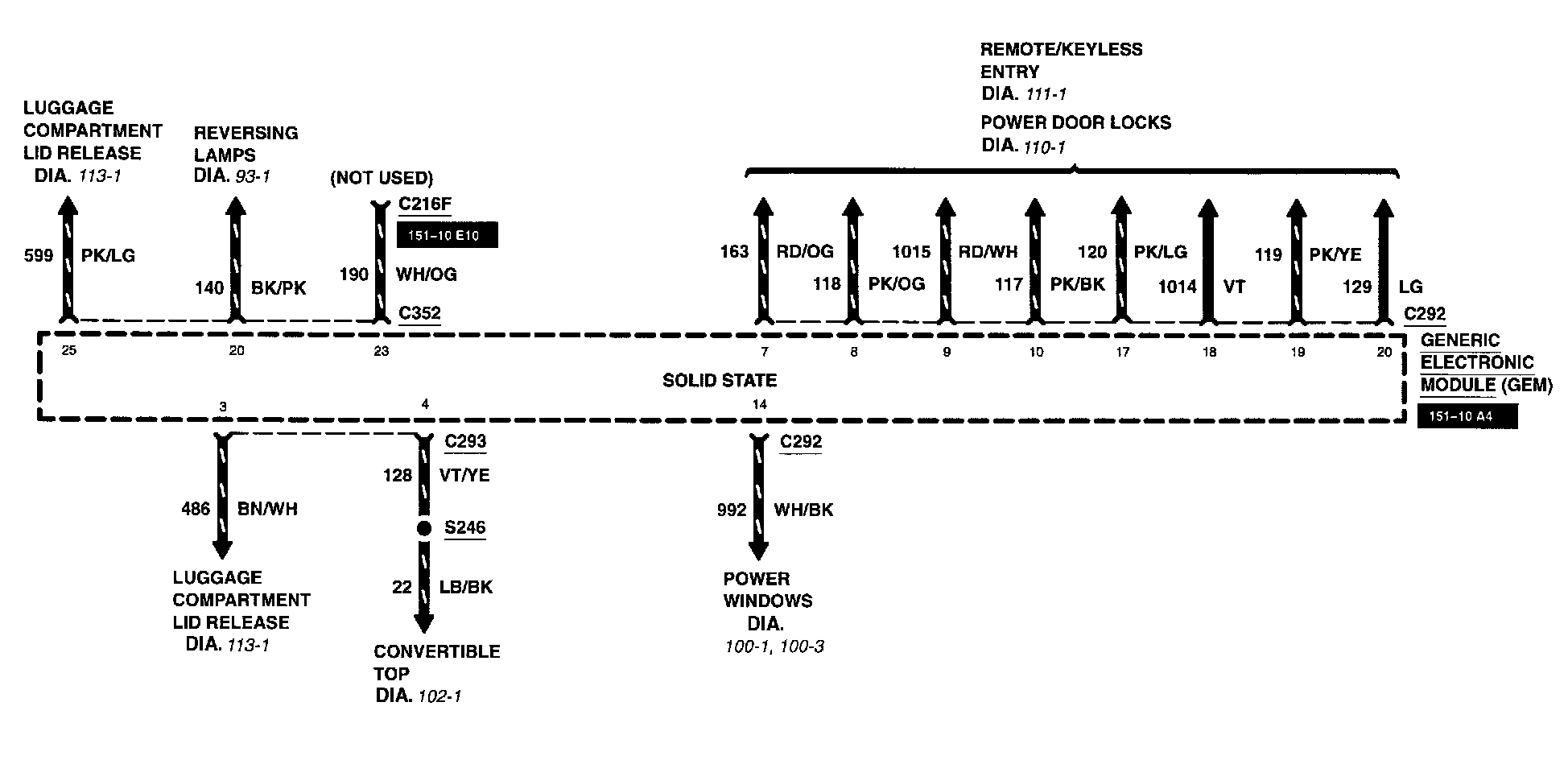

Diagram 59-3:

Generic Electronic Module
