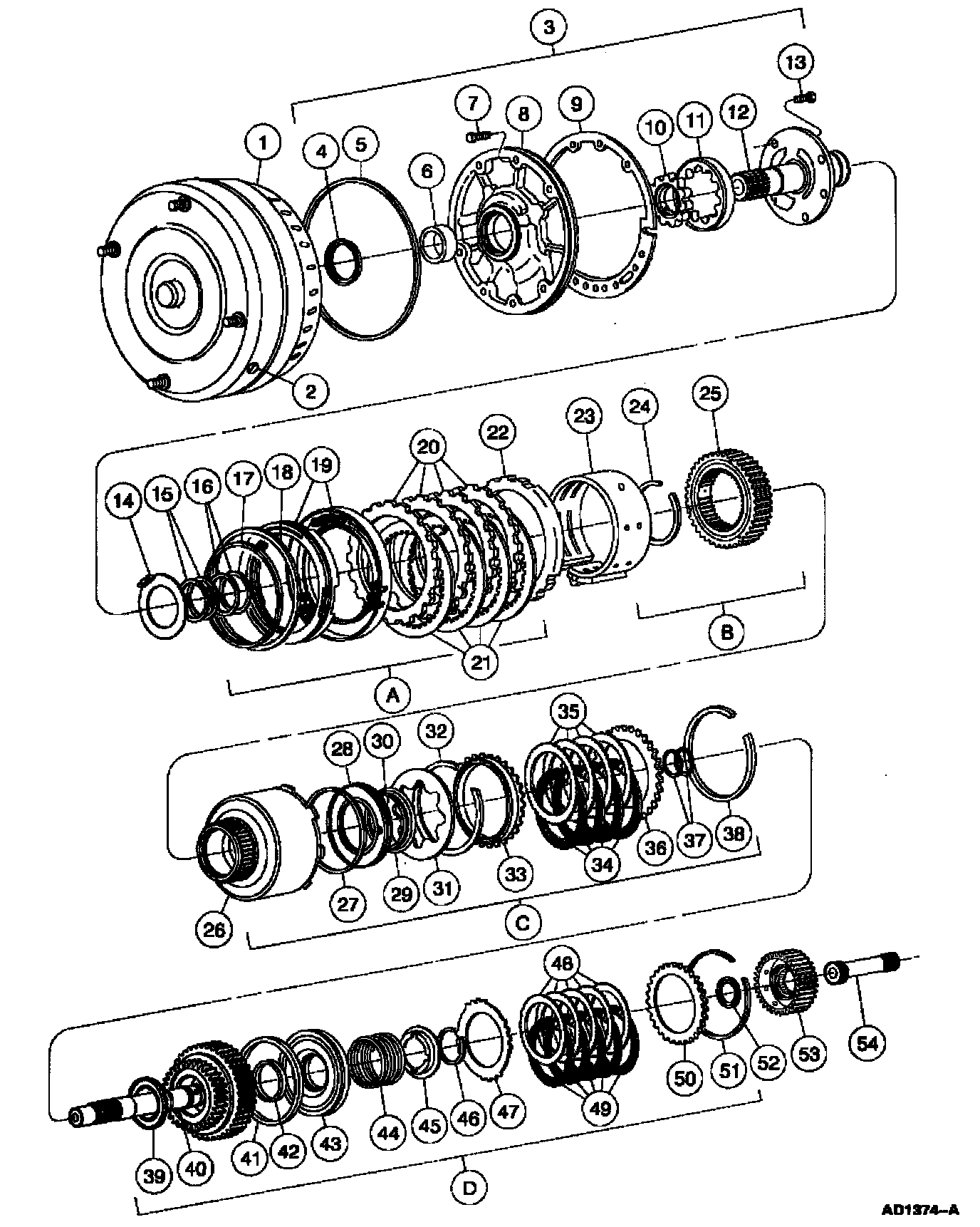

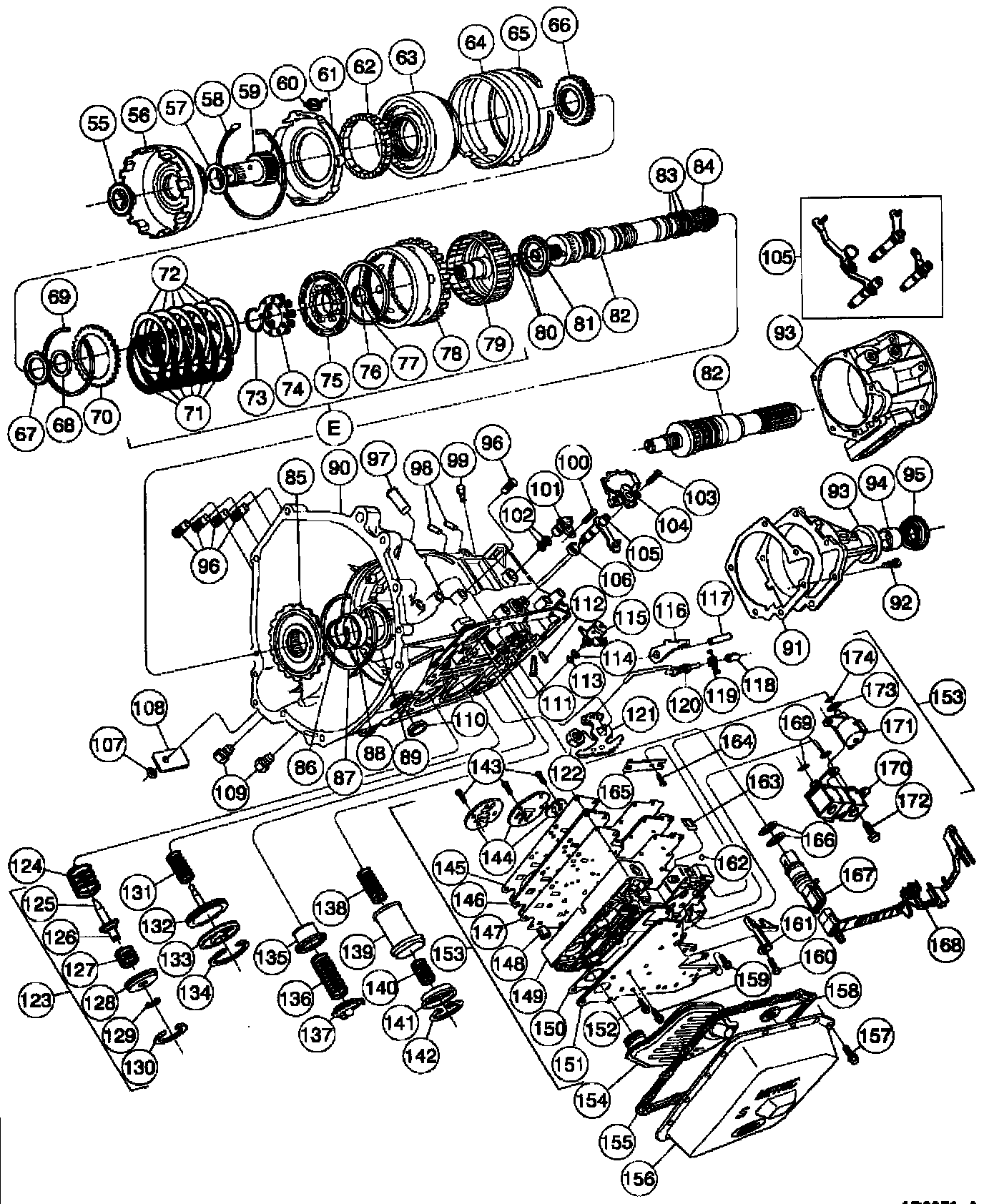

Automatic Transmission/Transaxle





1 of 6





2 of 6





3 of 6





4 of 6





5 of 6





6 of 6
