Coolant Temperature Sensor/Switch (For Computer): Service and Repair

REMOVAL

1. Disconnect the battery ground cable. For additional information refer to Battery.
2. Partially drain the cooling system. For additional information, refer to Cooling System.







3. Disconnect the Engine Coolant Temperature (ECT) sensor connector.

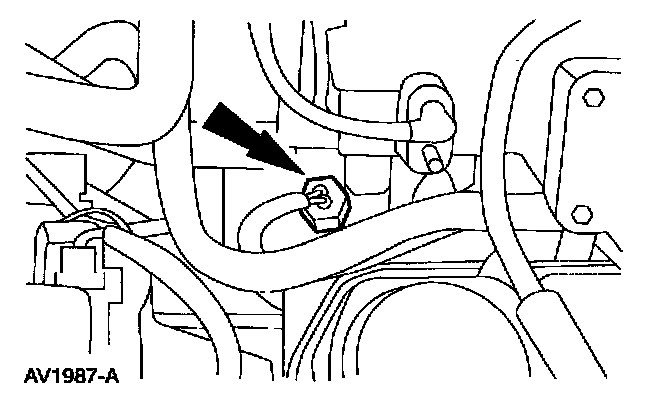

4. Remove the ECT sensor.

INSTALLATION

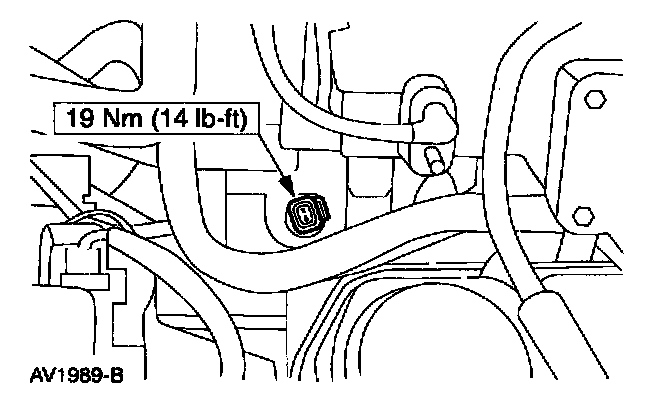

1. To install, reverse the removal procedure.
