Idle/Throttle Speed Control Unit: Service and Repair

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.

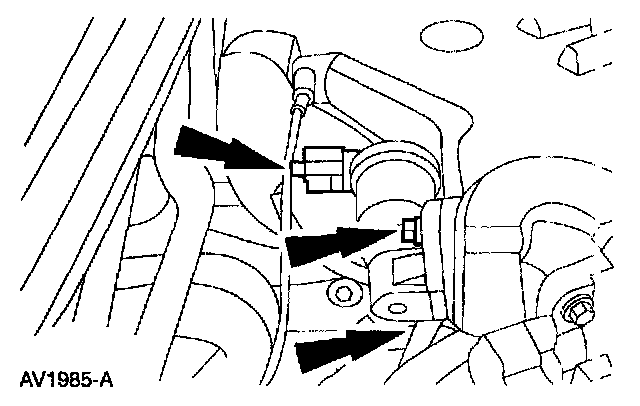

2. Remove the IAC valve:
^ Disconnect the connector.
^ Remove the two bolts, the IAC valve and the gasket.

NOTE: Discard the Idle Air Control (IAC) valve gasket.

INSTALLATION

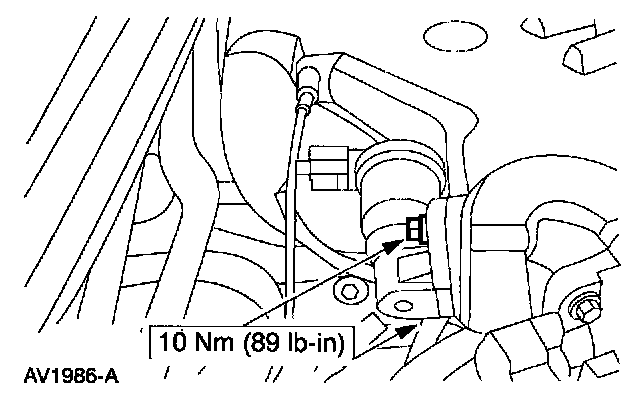

1. To install, reverse the removal procedure.
