Turn ignition switch to LOCK position. Remove appropriate door trim panel. Disconnect malfunctioning outside mirror harness connector. Inspect wiring. Measure voltage or resistance between ground and inoperative mirror harness connector terminals while operating mirror control switch to appropriate position as specified. See MIRROR LOGIC VOLTAGE/RESISTANCE TEST

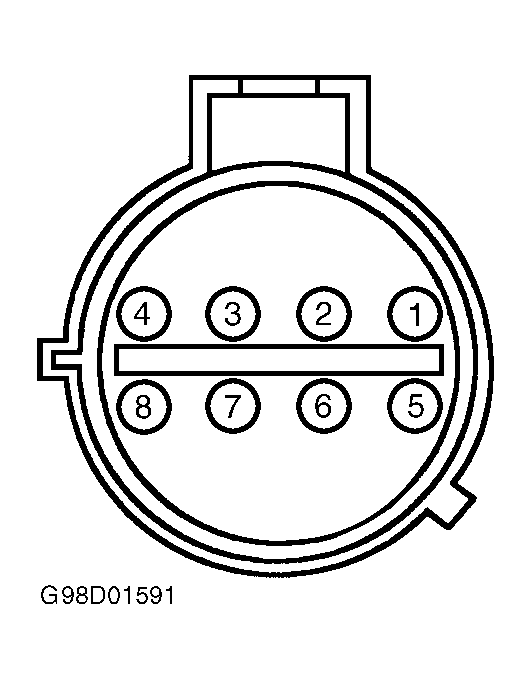

table. See Figure
. If voltage/resistance readings are not as specified, go to next step. If voltage/resistance readings are as specified, replace appropriate outside mirror.MIRROR LOGIC VOLTAGE/RESISTANCE TEST
| Mirror Connector Terminal No. (Wire Color) |
Control Switch Position |
Measurement |
| Driver's Side Mirror |
| 5 (Yellow) |
Left/Up |
Less Than 5 Ohms |
| 5 (Yellow) |
Right/Down |
Greater Than 10 Volts |
| 6 (Dark Blue) |
Up |
Greater Than 10 Volts |
| 6 (Dark Blue) |
Down |
Less Than 5 Ohms |
| 7 (Red) |
Left |
Greater Than 10 Volts |
| 7 (Red) |
Right |
Less Than 5 Ohms |
| Passenger's Side Mirror |
| 5 (Yellow) |
Left/Up |
Less Than 5 Ohms |
| 5 (Yellow) |
Right/Down |
Greater Than 10 Volts |
| 6 (Violet) |
Up |
Greater Than 10 Volts |
| 6 (Violet) |
Down |
Less Than 5 Ohms |
| 7 (White) |
Left |
Greater Than 10 Volts |
| 7 (White) |
Right |
Less Than 5 Ohms |
