Compressor Manifold and Tube Assembly - 6.0L Diesel: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

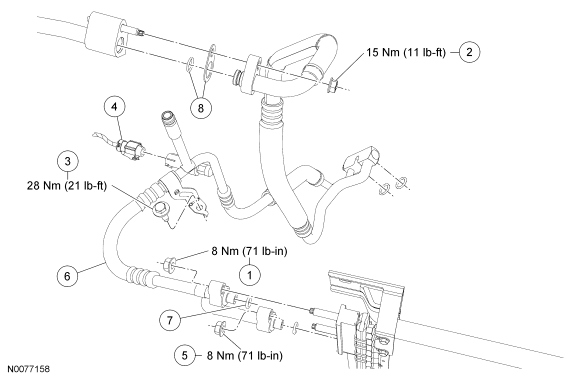

Fig 1: Exploded View Of Compressor Manifold & Tube Assembly With Torque Specifications - 6.0L Diesel
| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Condenser inlet fitting nut |
| 2 | W520413 | Suction accumulator outlet fitting nut |
| 3 | W701834 | Compressor manifold and tube bracket bolt |
| 4 | - | High-pressure cutoff switch electrical connector (part of 12A581) |
| 5 | W520413 | Condenser outlet fitting nut |
| 6 | 19D734 | Compressor manifold and tube assembly |
| 7 | 19E889 | O-ring seal (2 required) |
| 8 | 19B596 | O-ring seal and gasket seal kit |
