Compressor Manifold and Tube Assembly - 3.0L, 3.5L: Notes
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® PAG Refrigerant Compressor Oil YN-12-D |
WSH-M1C231-B |
NOTE:
3.0L shown in the illustration, 3.5L similar.

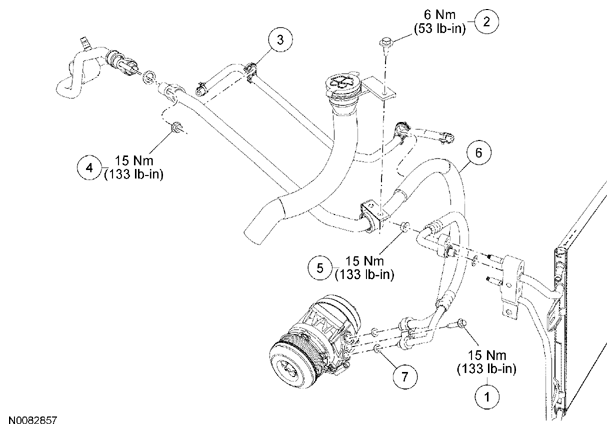

Fig 1: Exploded View Of Compressor Manifold And Tube Assembly Components With Torque Specifications - 3.0L
| Item | Part Number | Description |
|---|---|---|
| 1 | W701625 | Compressor manifold bolt |
| 2 | W503924 | Washer reservoir filler neck bolt |
| 3 | - | Coolant reservoir hose retainer (2 required) |
| 4 | W520413 | Compressor manifold and tube suction fitting nut |
| 5 | W520413 | Condenser inlet fitting nut |
| 6 | 19D734 | Compressor manifold and tube assembly |
| 7 | 19B596 | Gasket seal (4 pieces from kit required) |
