Accelerator Pedal: Notes

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Fixed Pedal

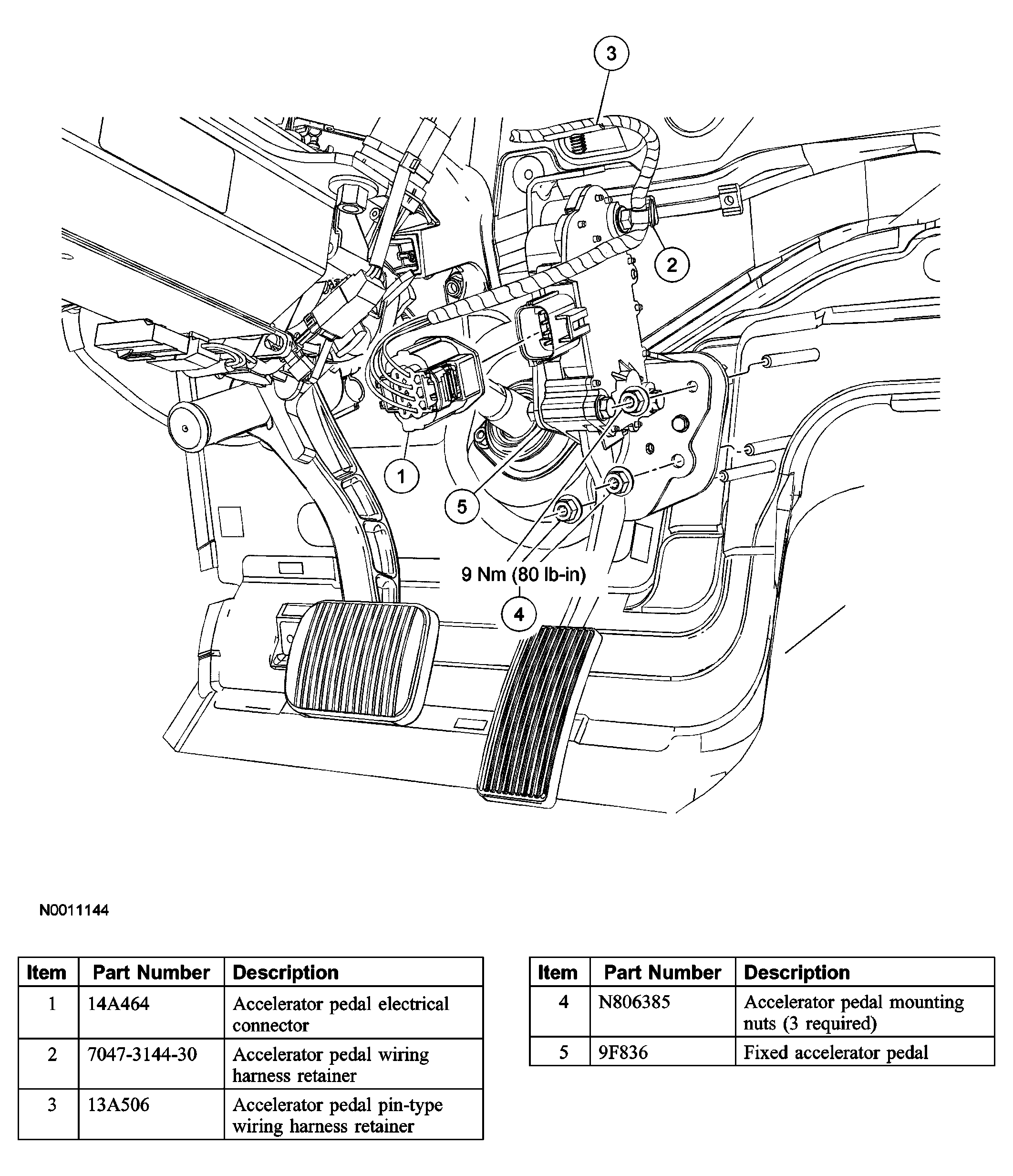

Fig 1: Removing Accelerator Pedal - Fixed Pedal
G03997940Courtesy of FORD MOTOR CO.

Adjustable Pedal

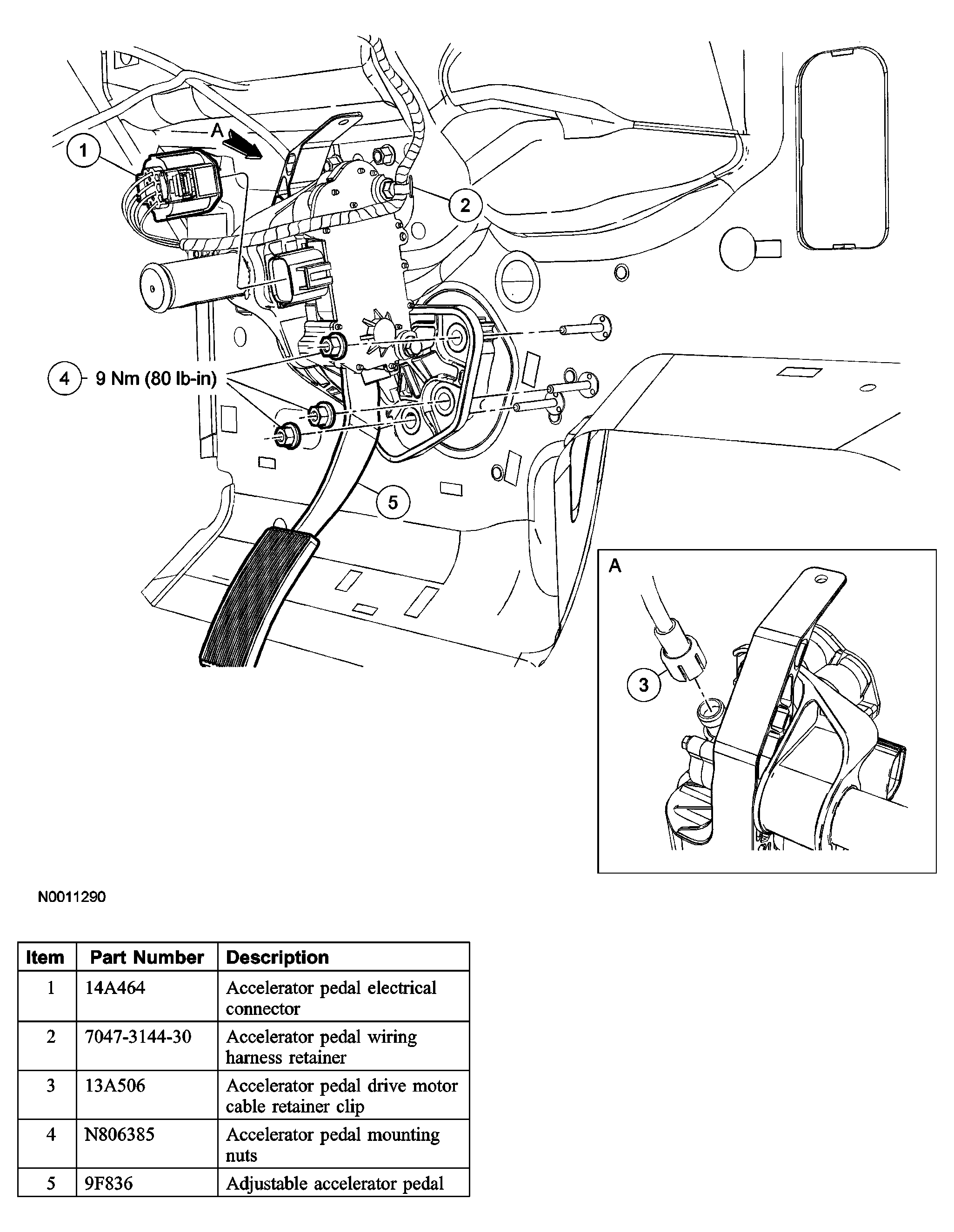

Fig 2: Removing Accelerator Pedal - Adjustable Pedal
G03997941Courtesy of FORD MOTOR CO.
