Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.
Disconnect the anti-lock brake control module electrical connector.

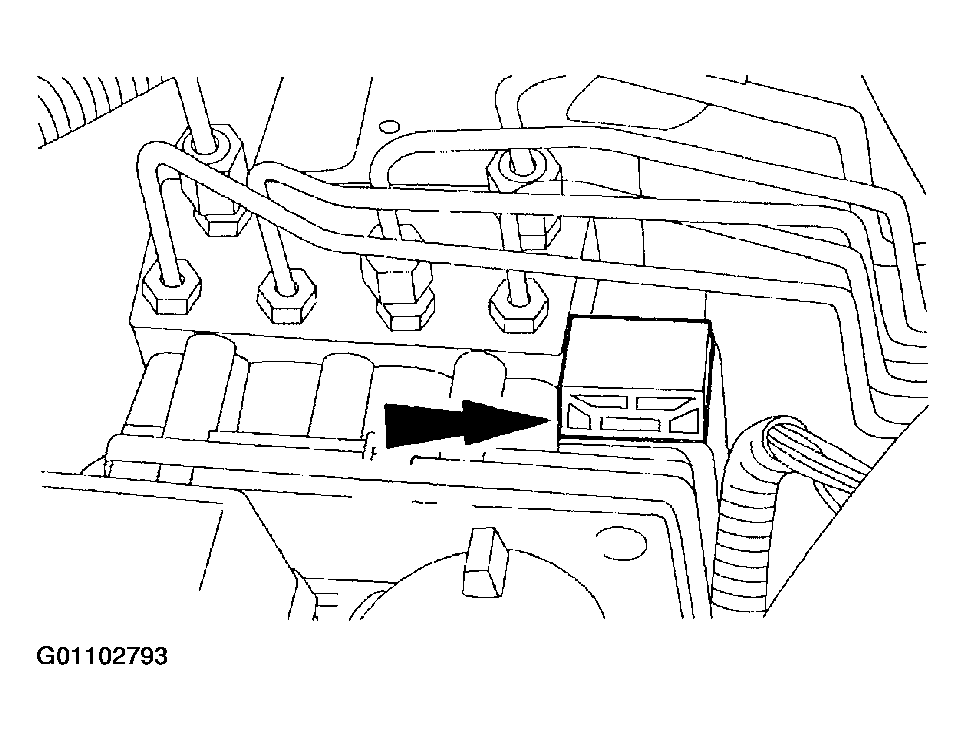

Fig 1: Disconnecting Anti-Lock Brake Control Module Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the anti-lock brake pump motor electrical connector.

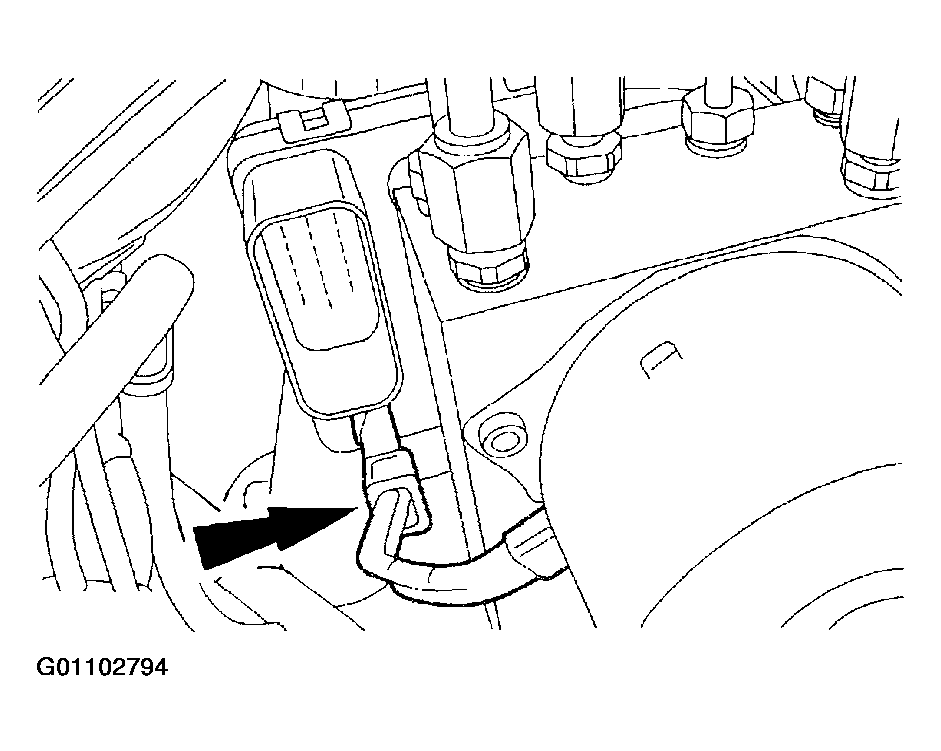

Fig 2: Disconnecting Anti-Lock Brake Pump Motor Electrical Connector
Courtesy of FORD MOTOR CO.
Position the underhood auxiliary junction box (AJB) aside.
1. Release the underhood AJB clips.
2. Position the underhood AJB aside.

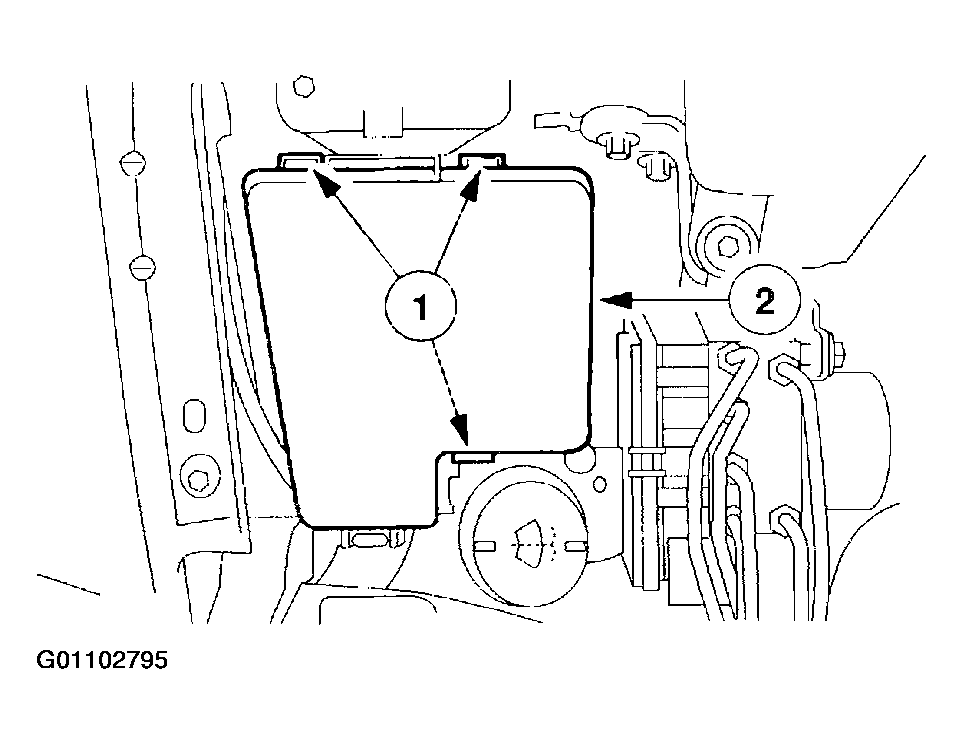

  Fig 3: Releasing AJB Clips
  Courtesy of FORD MOTOR CO.
Remove the anti-lock brake control module.
1. Remove the bolts.
2. Remove the control module.

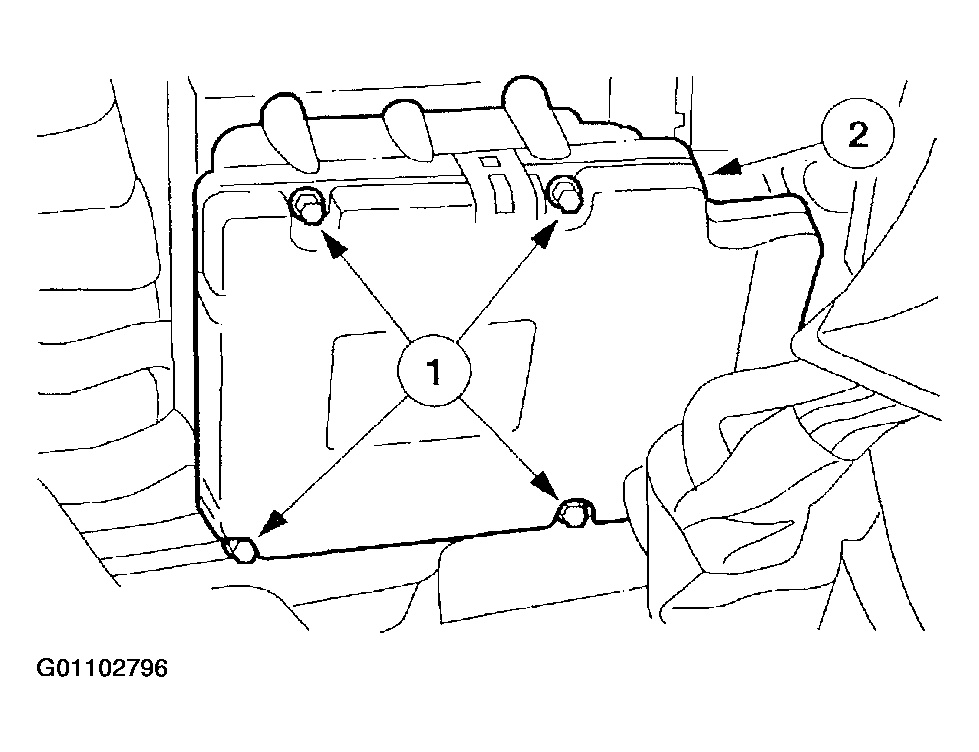

  Fig 4: Removing Anti-Lock Brake Control Module
  Courtesy of FORD MOTOR CO.

CAUTION: Once the new module is installed, it is necessary to download the module configuration information from the scan tool into the module. For additional information, see MODULE CONFIGURATION .

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.

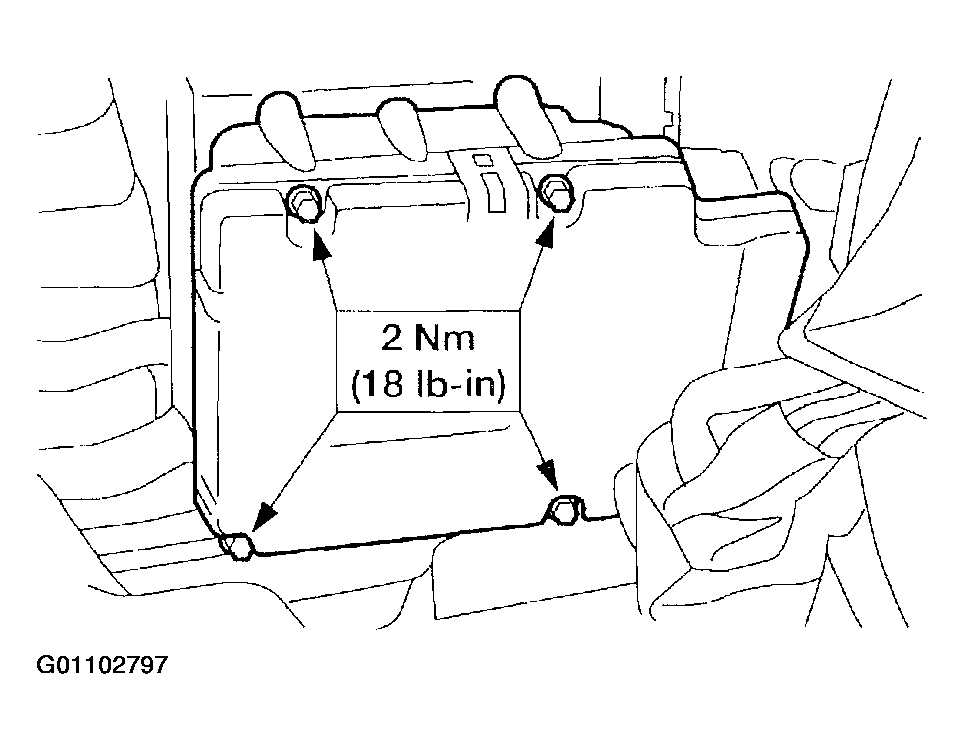

Fig 5: Installing Anti-Lock Brake Control Module

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
