System Precheck

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

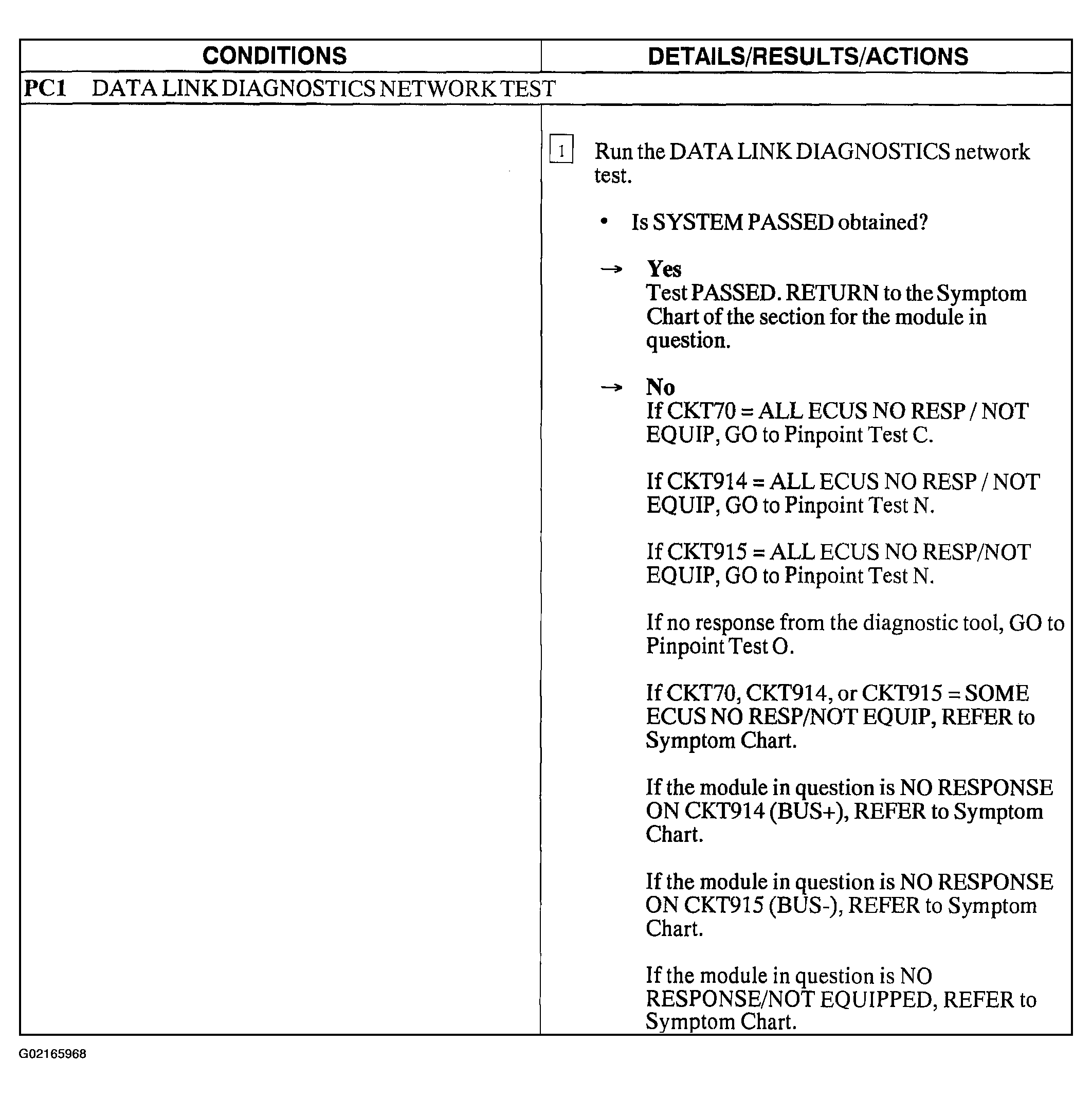

Fig 1: Pinpoint Test PC: Data Link Diagnostics Network Test
G02165968Courtesy of FORD MOTOR CO.
