Communication Circuit Wiring Repair

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

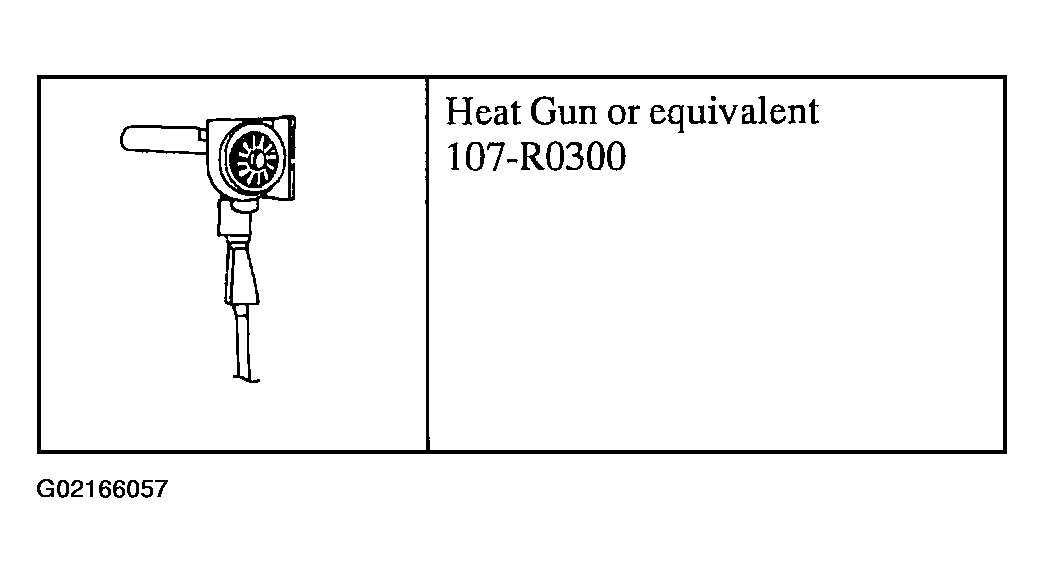

Fig 1: Special Tool(s)

Courtesy of FORD MOTOR CO.

Disconnect the battery ground cable.
Strip the wires.

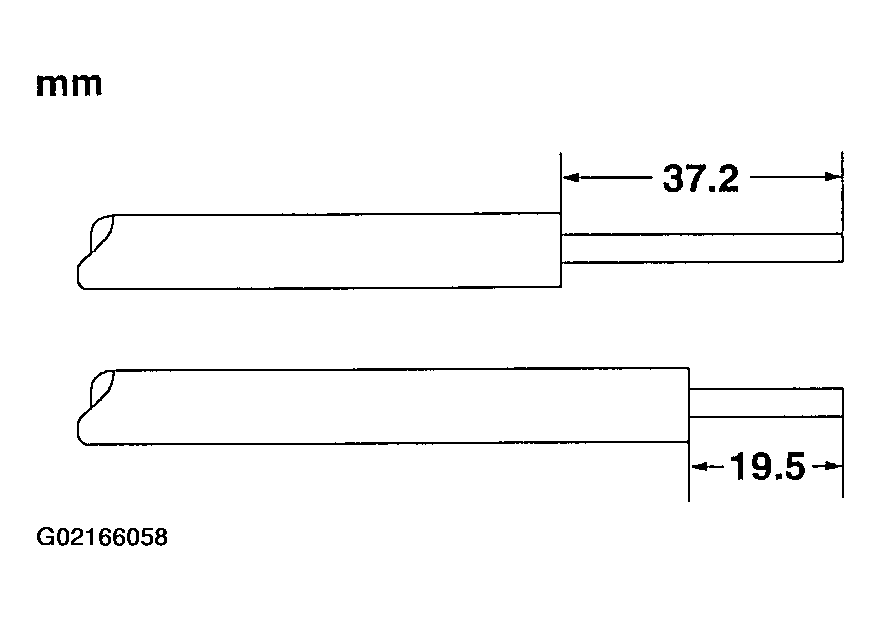

Fig 2: Striping Wires
Courtesy of FORD MOTOR CO.

NOTE: Use rosin core mildly activated (RMA) solder, not acid core solder.

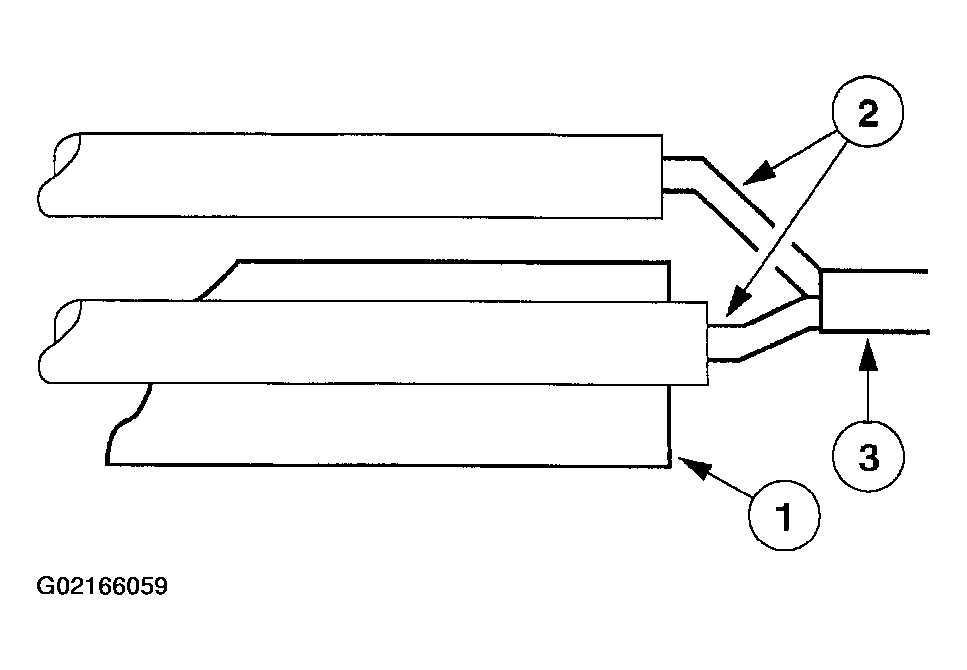

Fig 3: Soldering Wires

Courtesy of FORD MOTOR CO.

Solder the wires.
1. Install the heat shrink tube.
2. Twist the wires together.
3. Solder the wires together.

NOTE: Wait for the solder to cool before moving the wires.

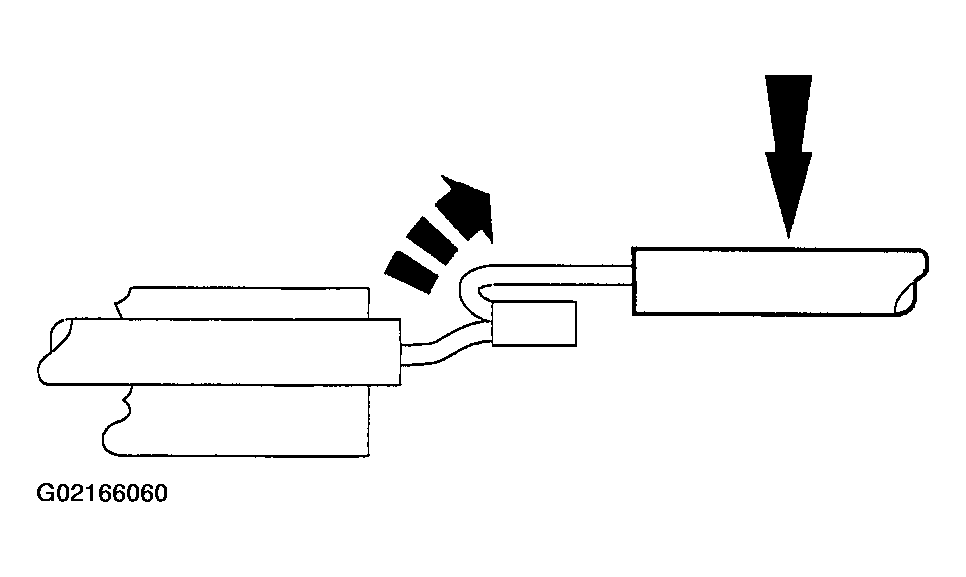

Fig 4: Bending Wires

Courtesy of FORD MOTOR CO.

Bend the wires back in a straight line.
Position the heat shrink tube over the wire repair.
- Overlap the heat shrink tube on both wires.

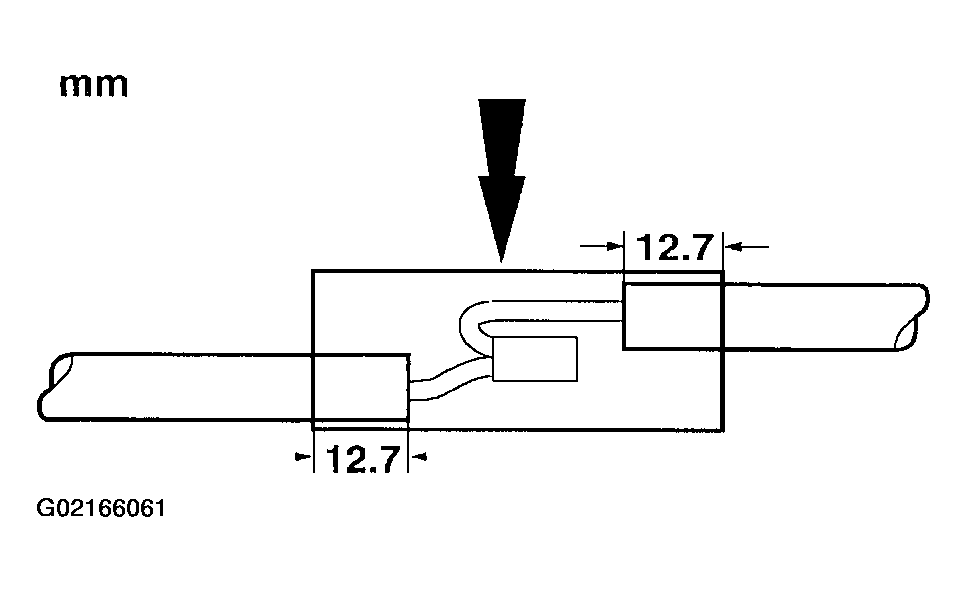

Fig 5: Positioning Heat Shrink Tubing
Courtesy of FORD MOTOR CO.
Use Heat Gun to heat the repaired area until adhesive flows out both ends of the heat shrink tube.

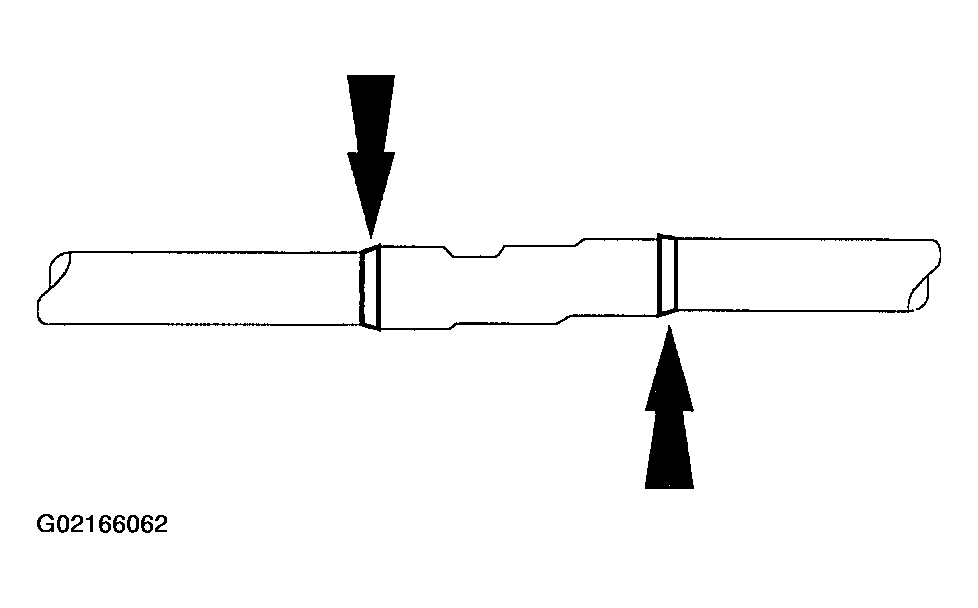

Fig 6: Shrinking Heat Shrink Tubing
Courtesy of FORD MOTOR CO.
Reconnect the battery ground cable.
