Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.
CAUTION: Prior to removal of the module, it is necessary to upload module configuration information to the appropriate diagnostic equipment. This information needs to be downloaded into the new module once installed. For additional information, see MODULE CONFIGURATION .

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.
Remove the LH scuff plate.

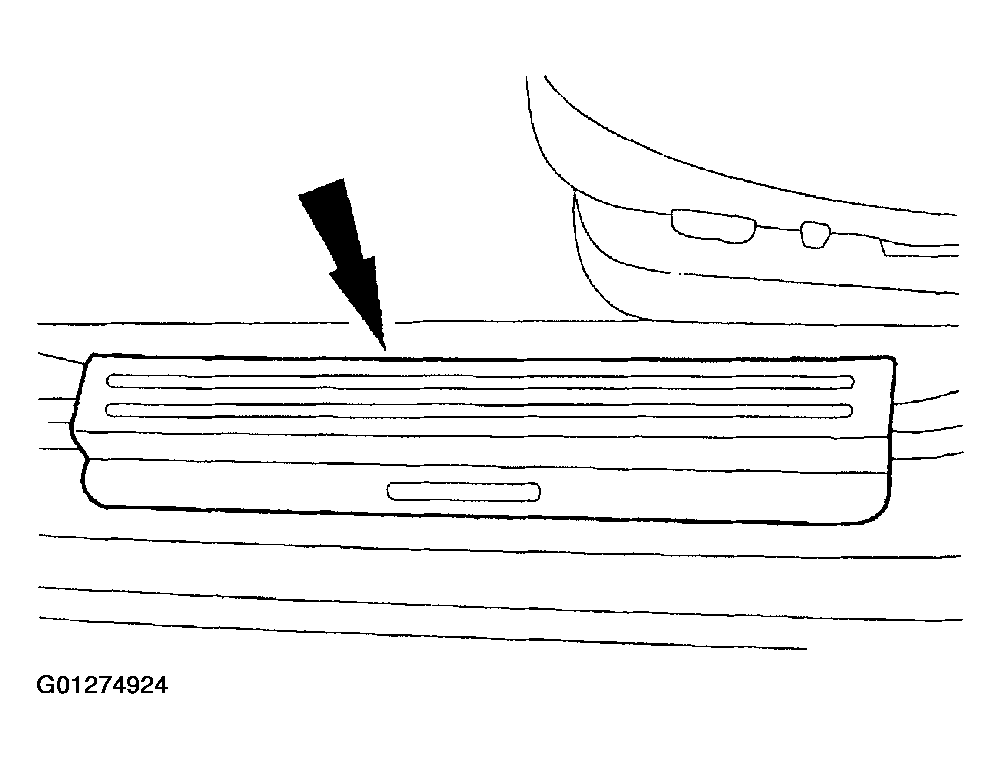

Fig 1: Removing Left Scuff Plate
Courtesy of FORD MOTOR CO.
Release the retaining clips and remove the LH A-pillar lower trim panel.

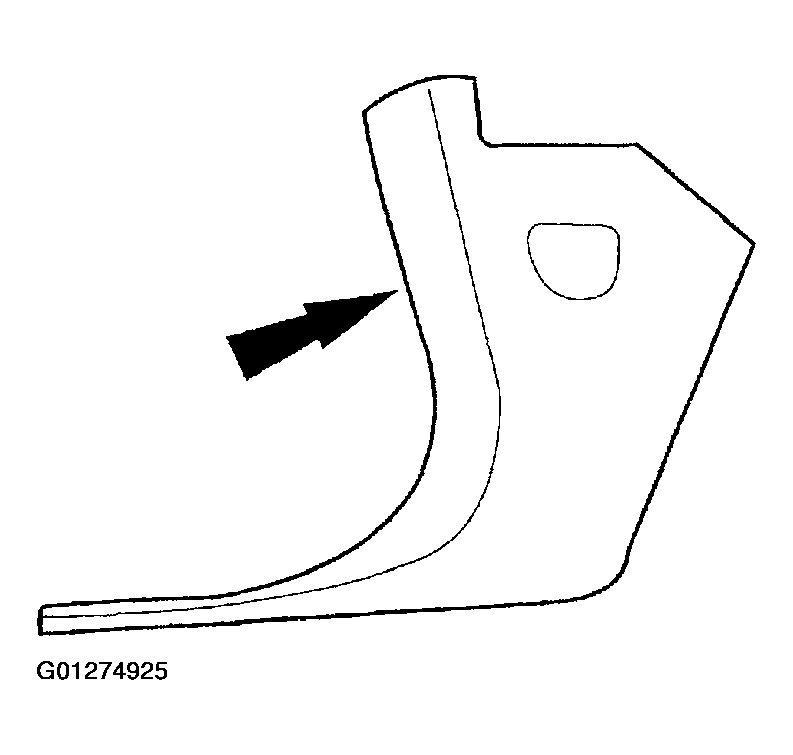

Fig 2: Removing Left A-Pillar Lower Trim Panel
Courtesy of FORD MOTOR CO.
Remove the lower instrument panel finish panel.
- Remove the courtesy lamp from the instrument panel finish panel.
Position the driver side carpet aside.
Position interior auxiliary junction box (AJB) aside.
1. Remove the nuts.
2. Position the AJB aside.

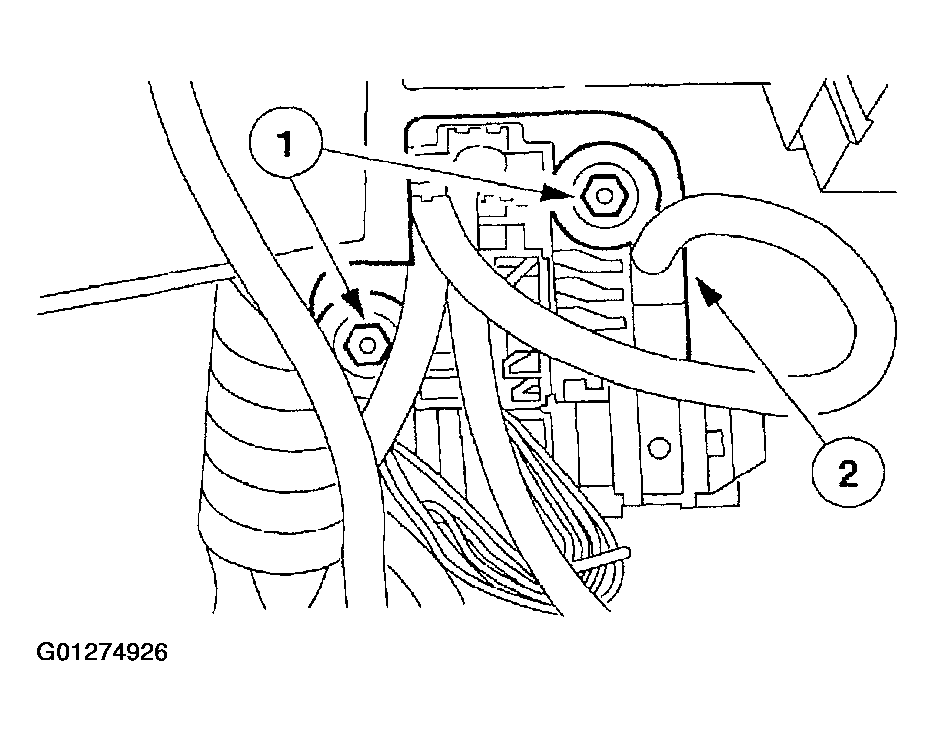

Fig 3: Positioning Interior AJB Aside
Courtesy of FORD MOTOR CO.
Remove the nuts, bolt and position the FEM aside.

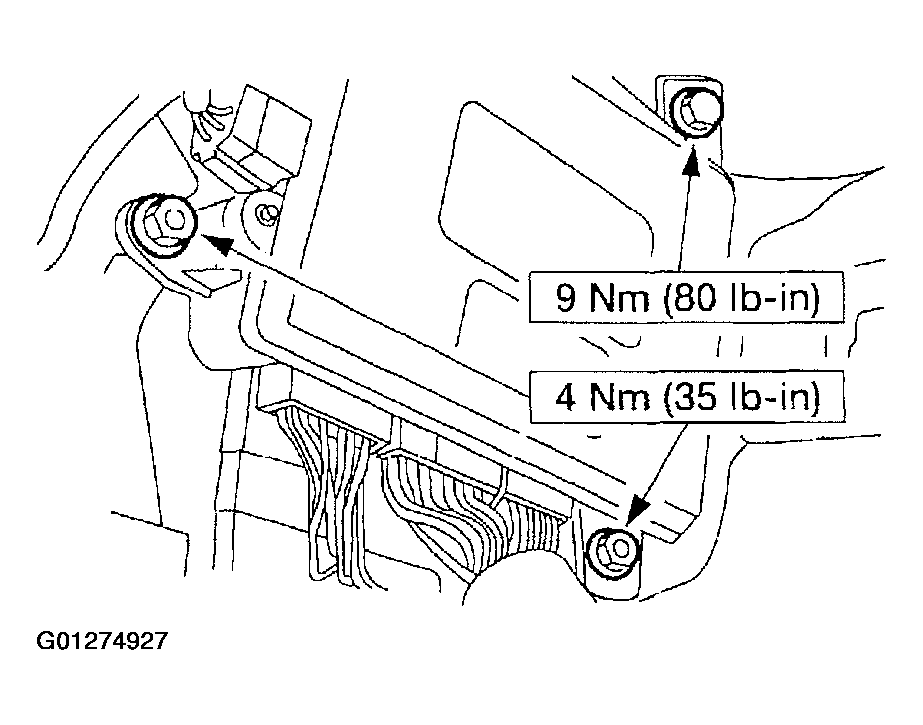

Fig 4: Positioning FEM Aside
Courtesy of FORD MOTOR CO.
Remove the FEM.
1. Disconnect the six electrical connectors.
2. Remove the FEM.

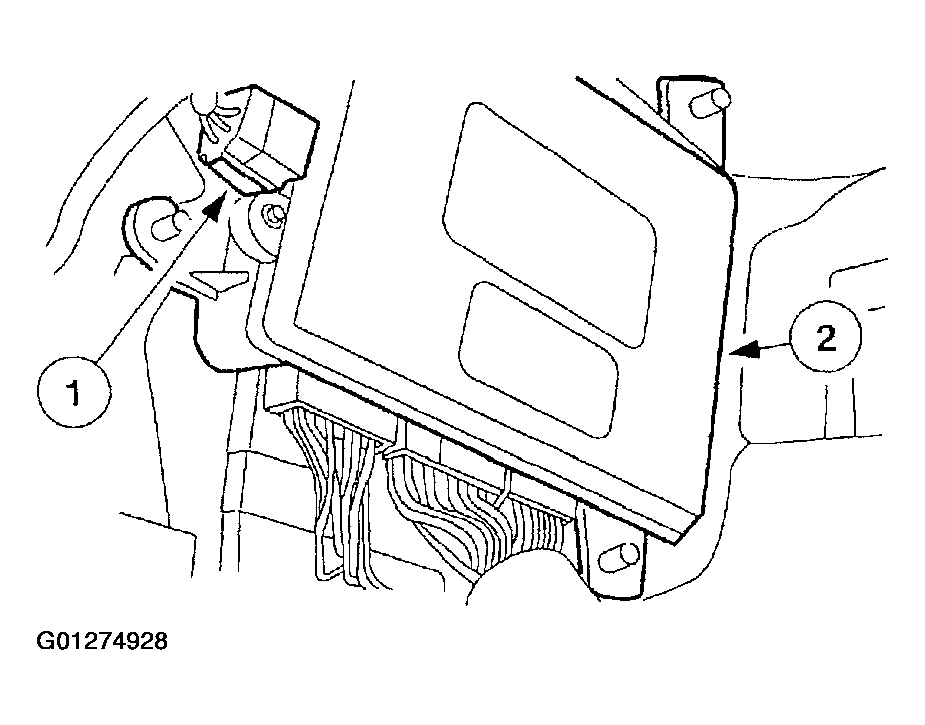

Fig 5: Removing FEM
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
