Home >> Ford >> 2000 >> Taurus V6-3.0L VIN 2 Flex Fuel >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Engine Control Module

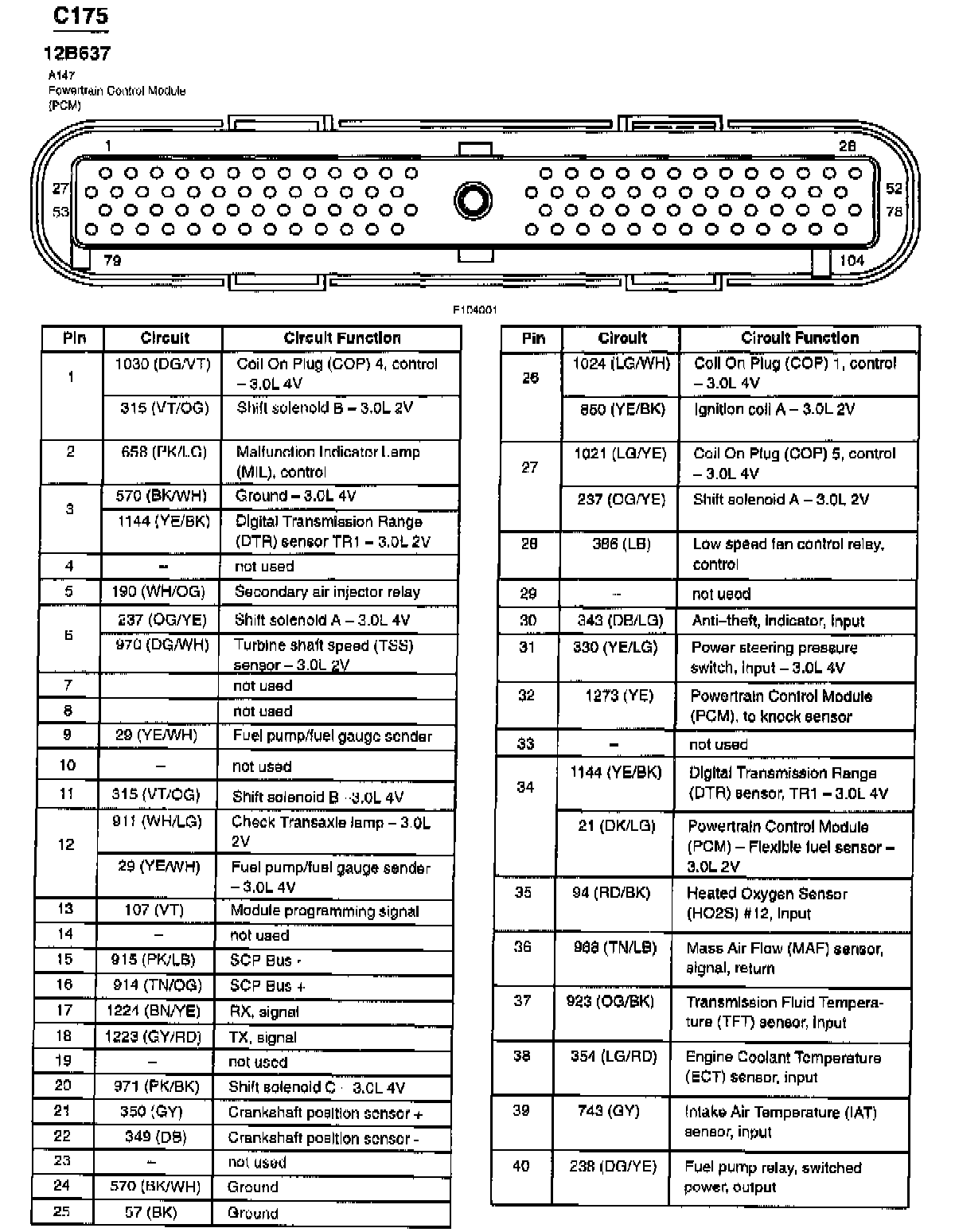

Part 1 Of 2:

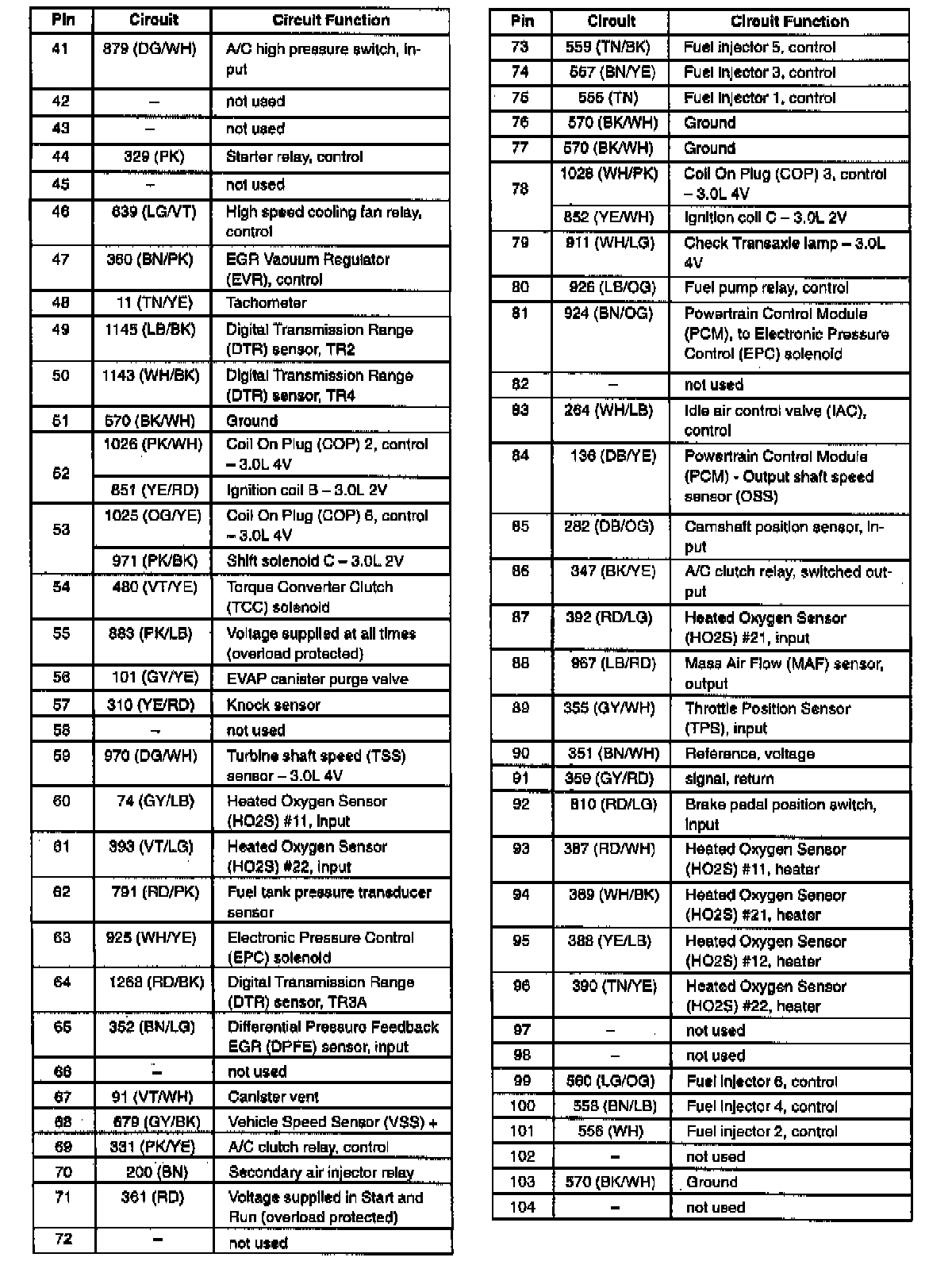

Part 2 Of 2:
