Test DB: MAP/BARO Sensor

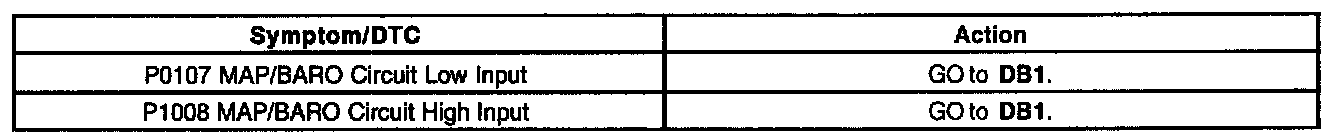

Symptom/DTC Chart:

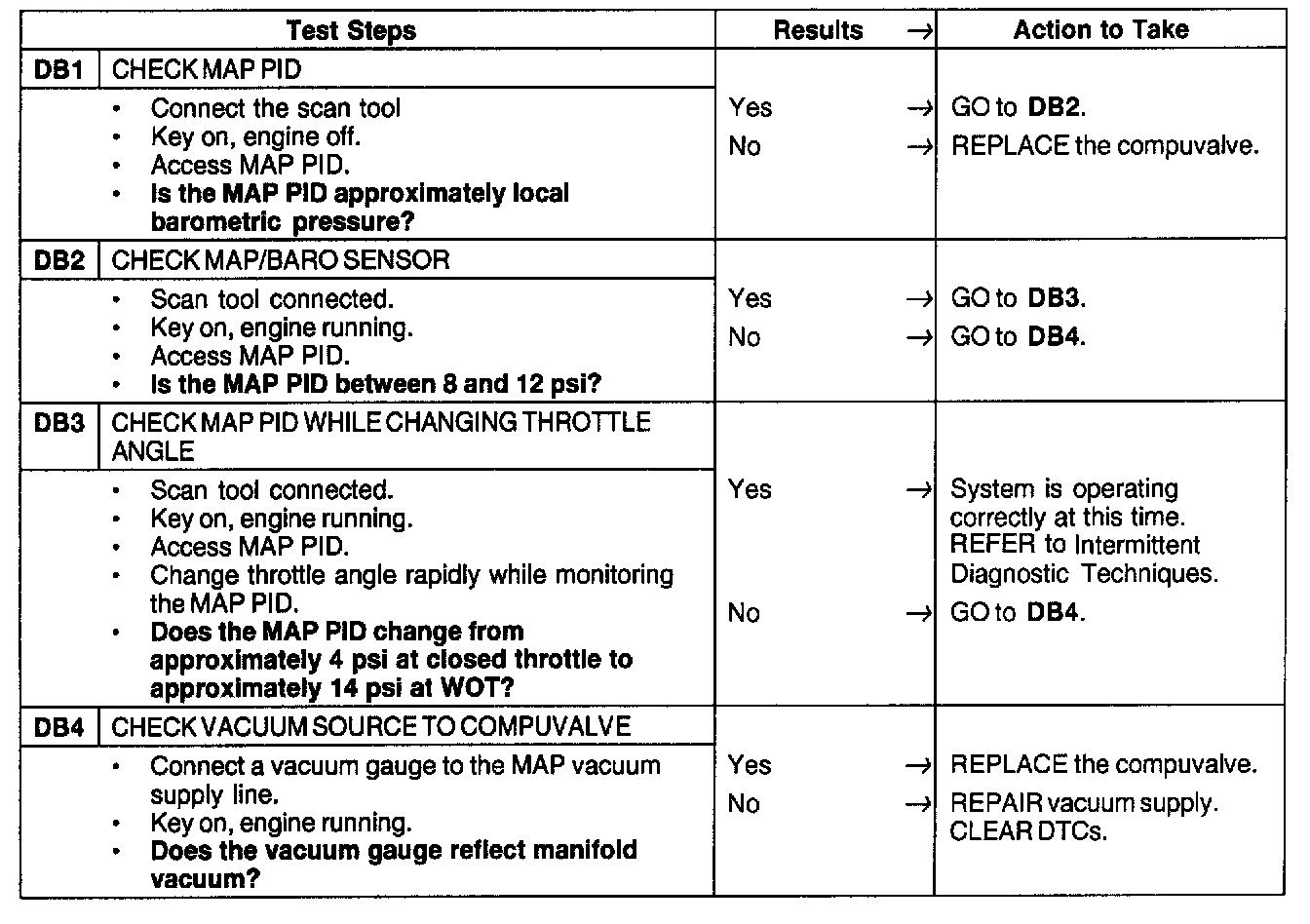

DB1 - DB4:






This pinpoint test is intended to diagnose only the following:
- Compuvalve MAP/BARO circuits
