Test DD: Fuel Tank Temperature Sensor

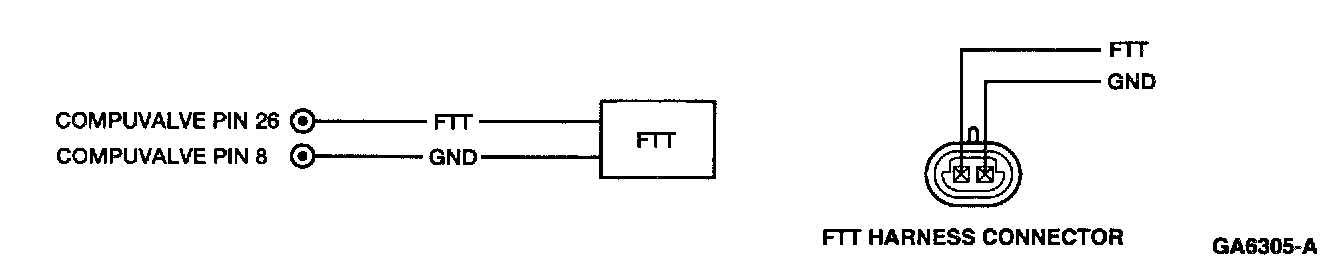

Pinpoint Test Schematics and Connectors:

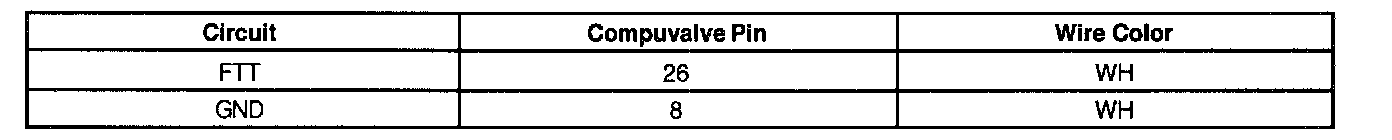

Tables/Graphs - Compuvalve Circuit Data Sheet:

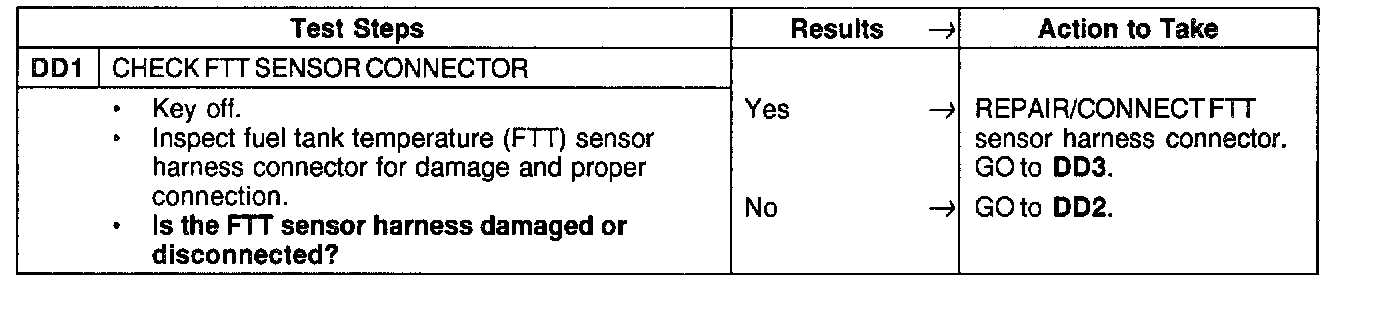

DD1:

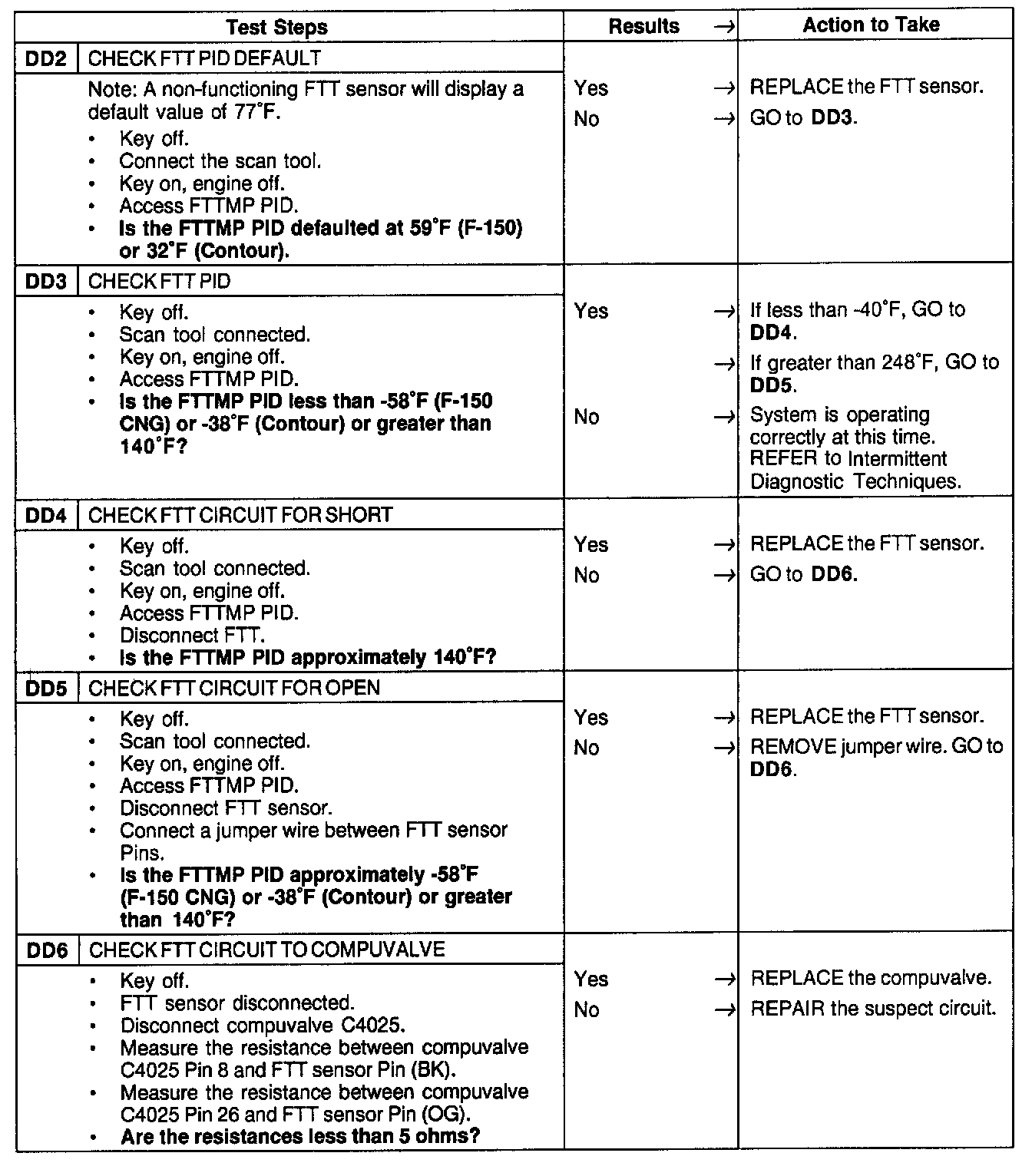

DD2 - DD6:

This pinpoint test is intended to diagnose only the following:
- Fuel Tank Temperature (FTT)
- Harness circuit: KS
- Powertrain Control Module (PCM)
