Test H: Fuel Control

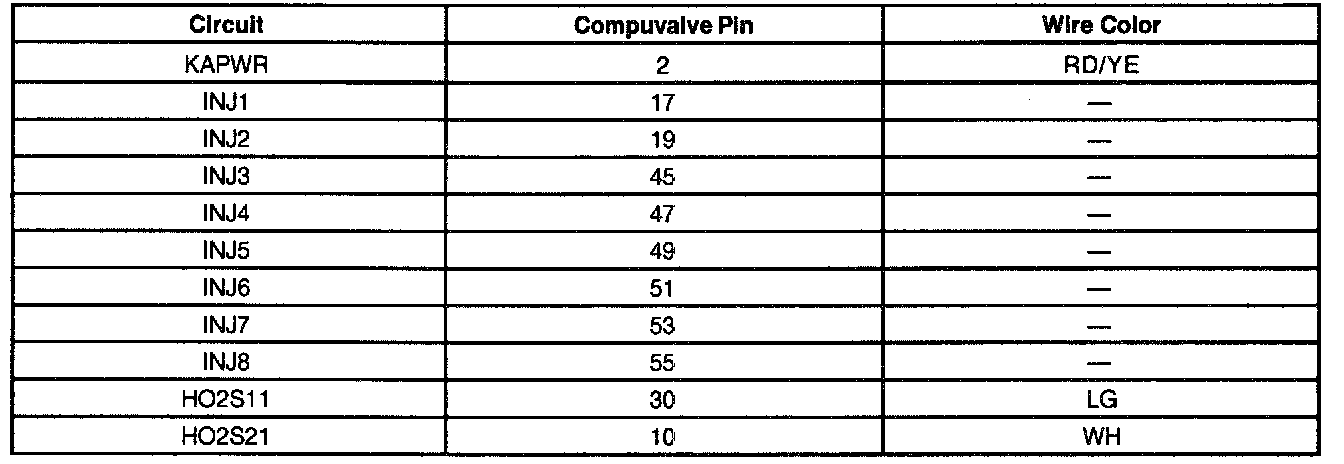

Compuvalve Circuit Data Sheet:

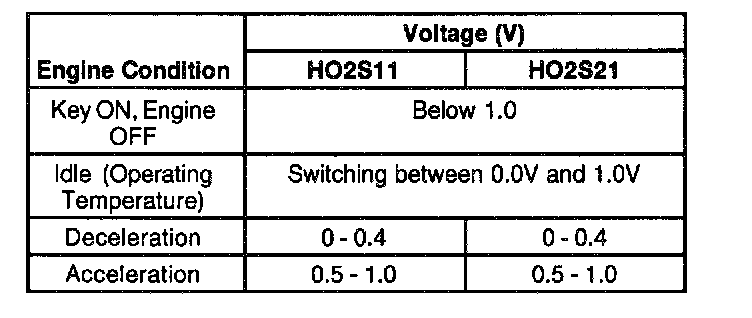

02S Voltage Specification:

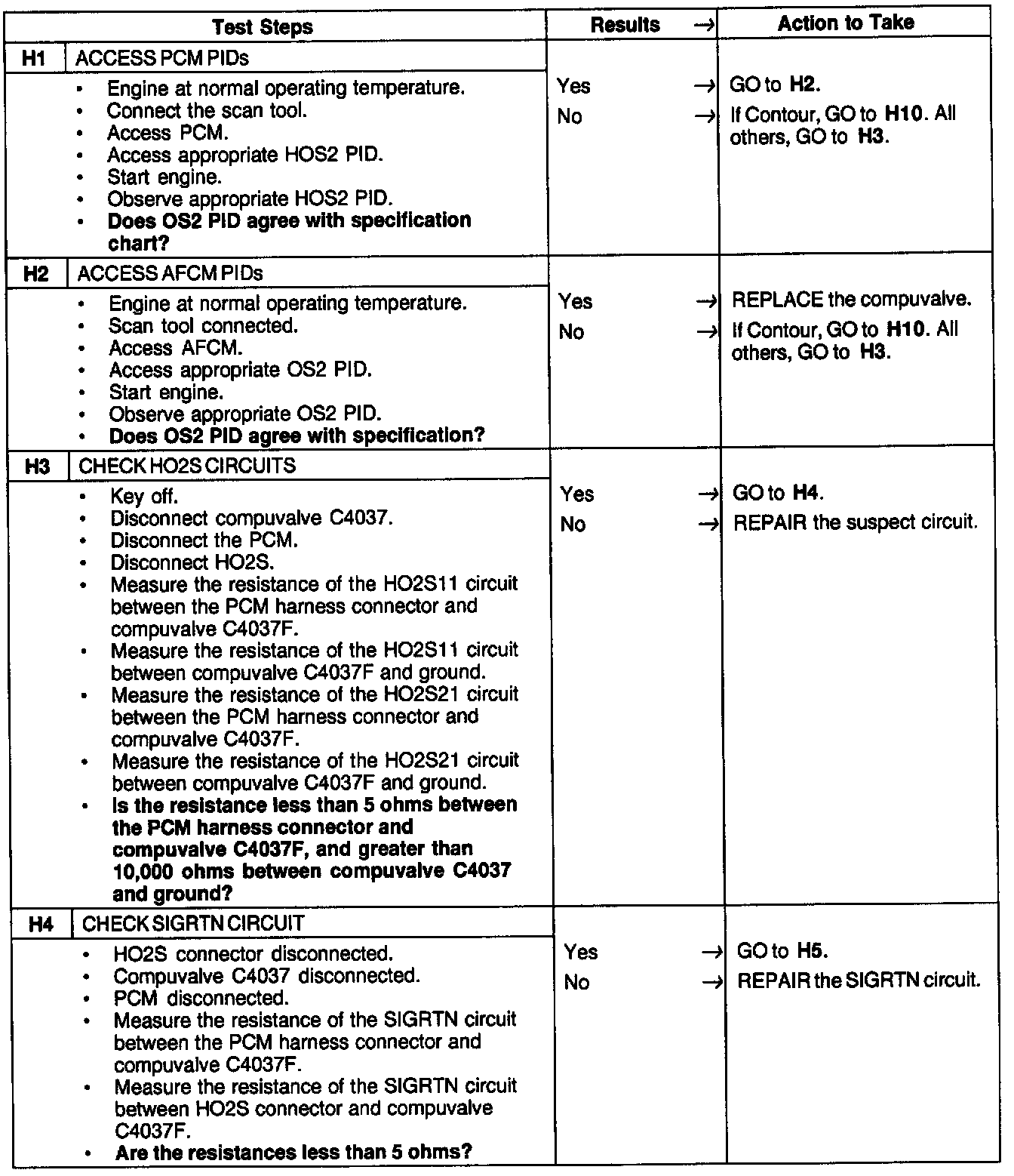

H1 - H4:

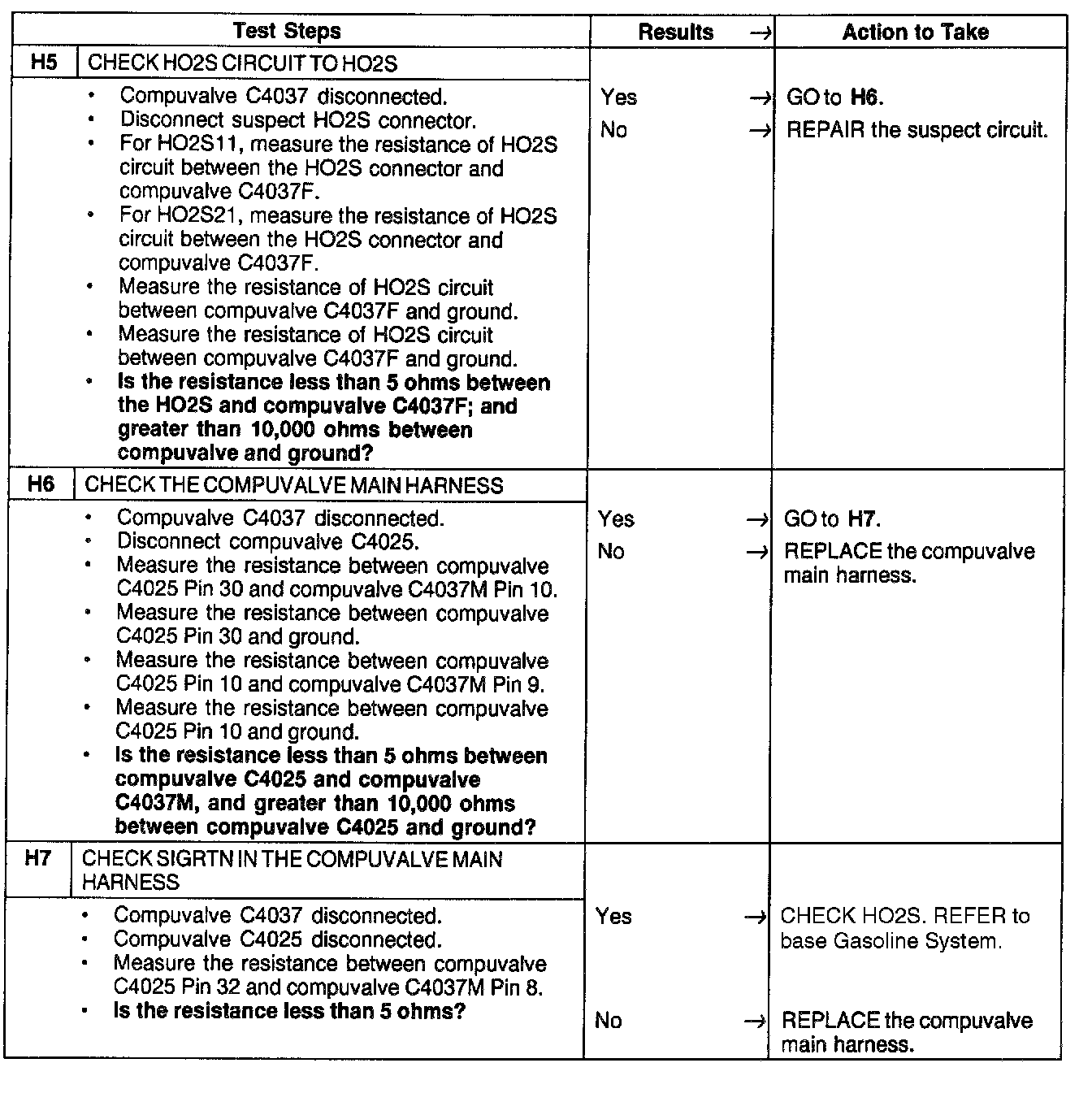

H5 - H7:

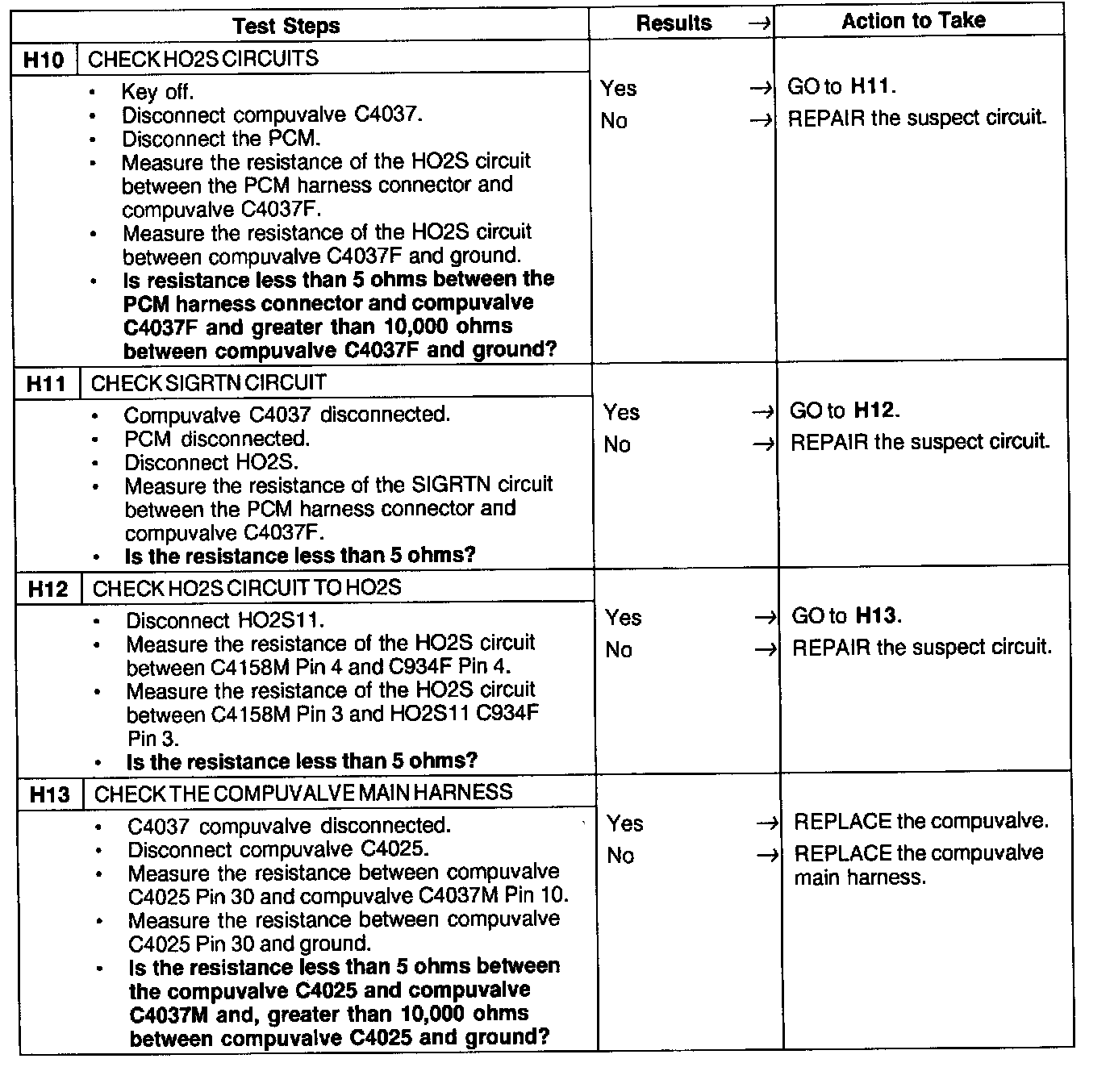

H10 - H13:

This pinpoint test is intended to diagnose:
- HO2S
- HO2S connections
- Vacuum systems
- Compuvalve
- Harness circuits: HO2S and VPWR

CAUTION: Probing or piercing wiring insulation is not permitted and may allow water entry, causing corrosion and shorting which may result in HO2S failure.
