Reference Value Symptom Chart

Reference Value Symptom Chart:

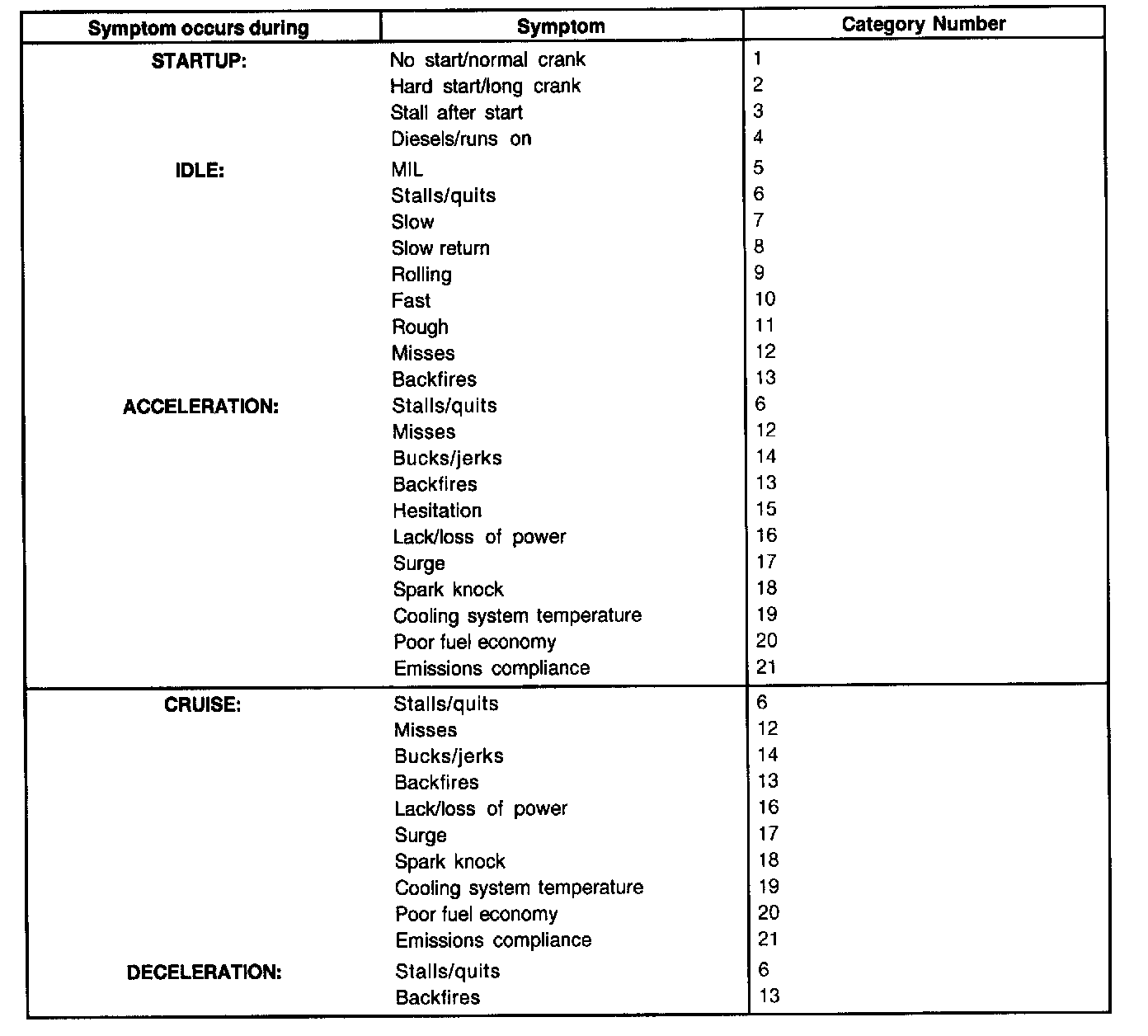

The Reference Value Symptom Chart is used to provide guidance in selecting the appropriate PID or measured signal related to the fault area. Select a symptom from the symptom chart along with the category number and proceed to the PID/Measured Signal Chart. For multiple symptoms, select the most evident. Reference Value PID/Measured Signal Chart
