ABS Control Module Parameter Identification (PID) Index

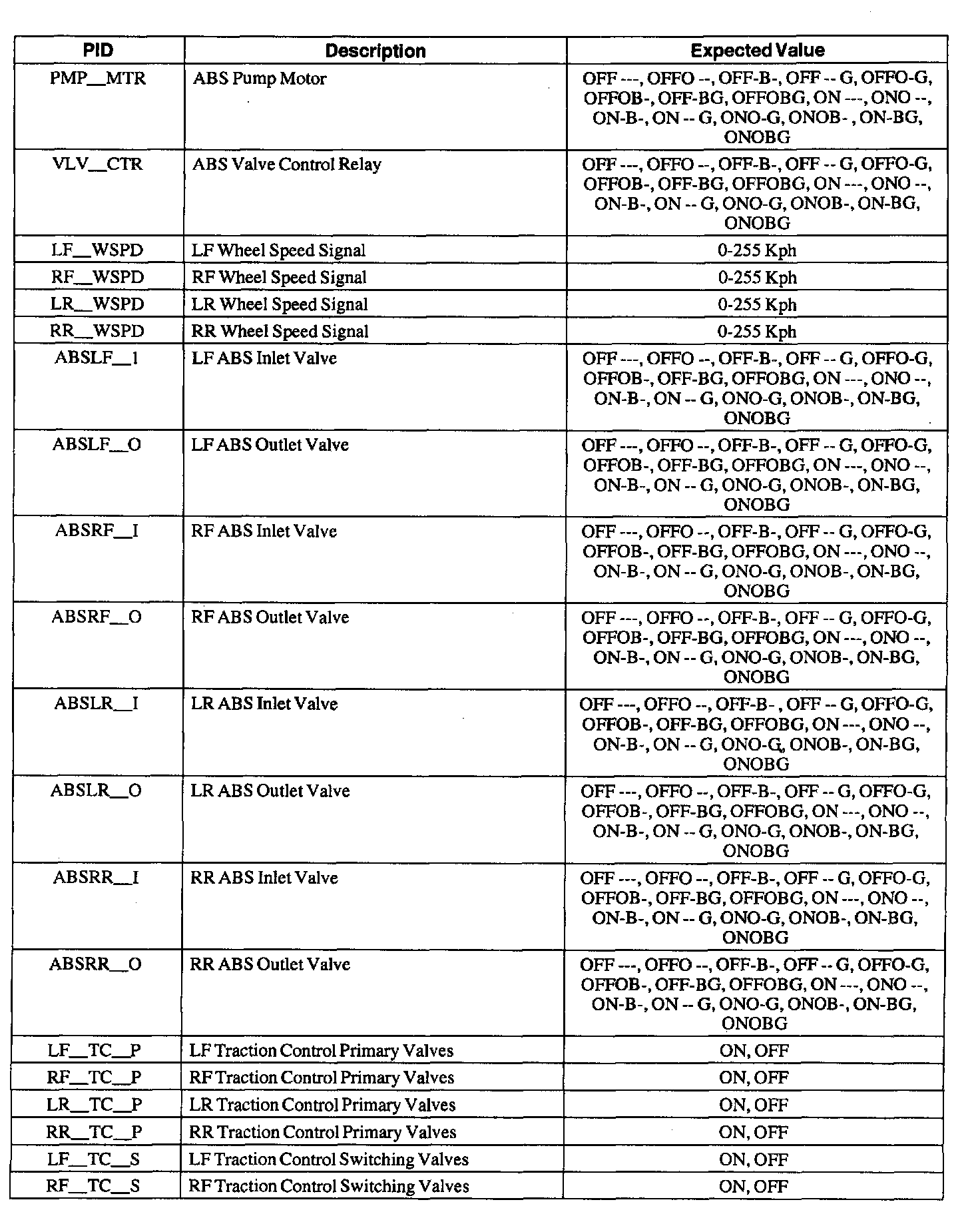

1 Of 3:





Part 1 of 3

2 Of 3:





Part 2 of 3

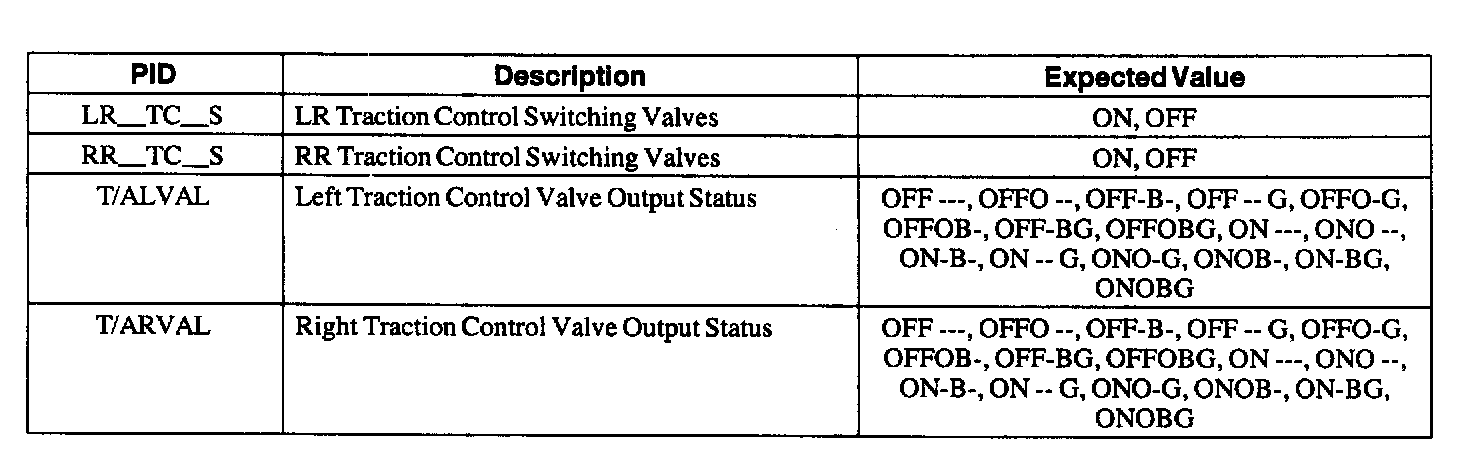

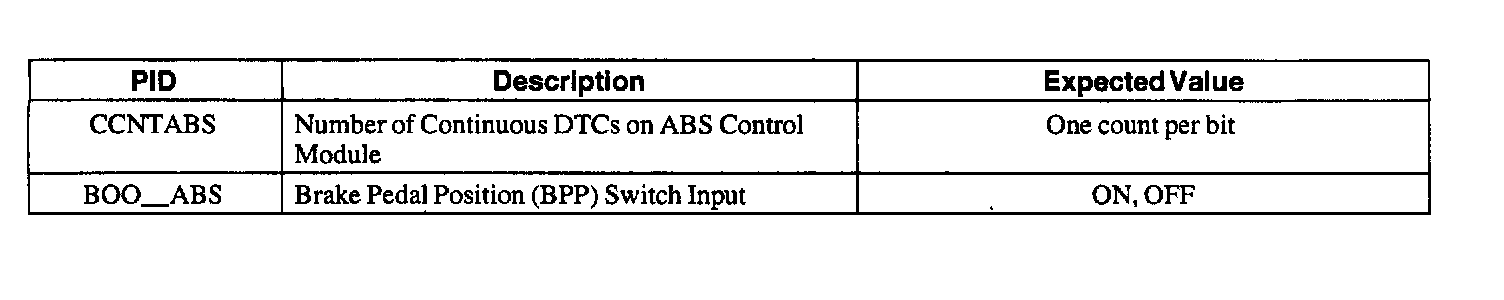

3 Of 3:





Part 3 of 3
