Blower Motor Speed Control

REMOVAL







1. Remove the right-side instrument panel insulator.

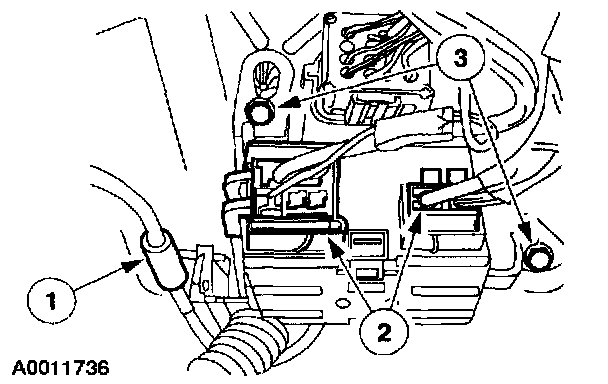

2. Remove the blower motor speed control.
1. Disconnect the vacuum line.
2. Disconnect the electrical connectors.
3. Remove the screws and the blower motor speed control.

INSTALLATION
1. To install, reverse the removal procedure.
