Crankshaft Position Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.
2. Raise and support the vehicle. For additional information, refer to Maintenance/Service and Repair.

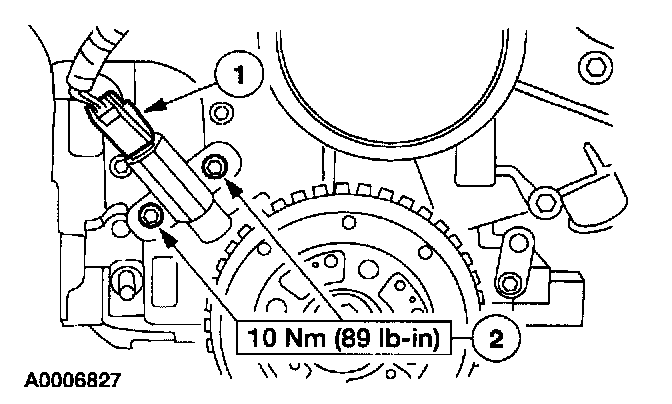

3. Remove the Crankshaft Position (CKP) sensor.
1 Disconnect the electrical connector.
2 Remove the bolts and the CKP sensor.

INSTALLATION
1. To install, reverse the removal procedure.
