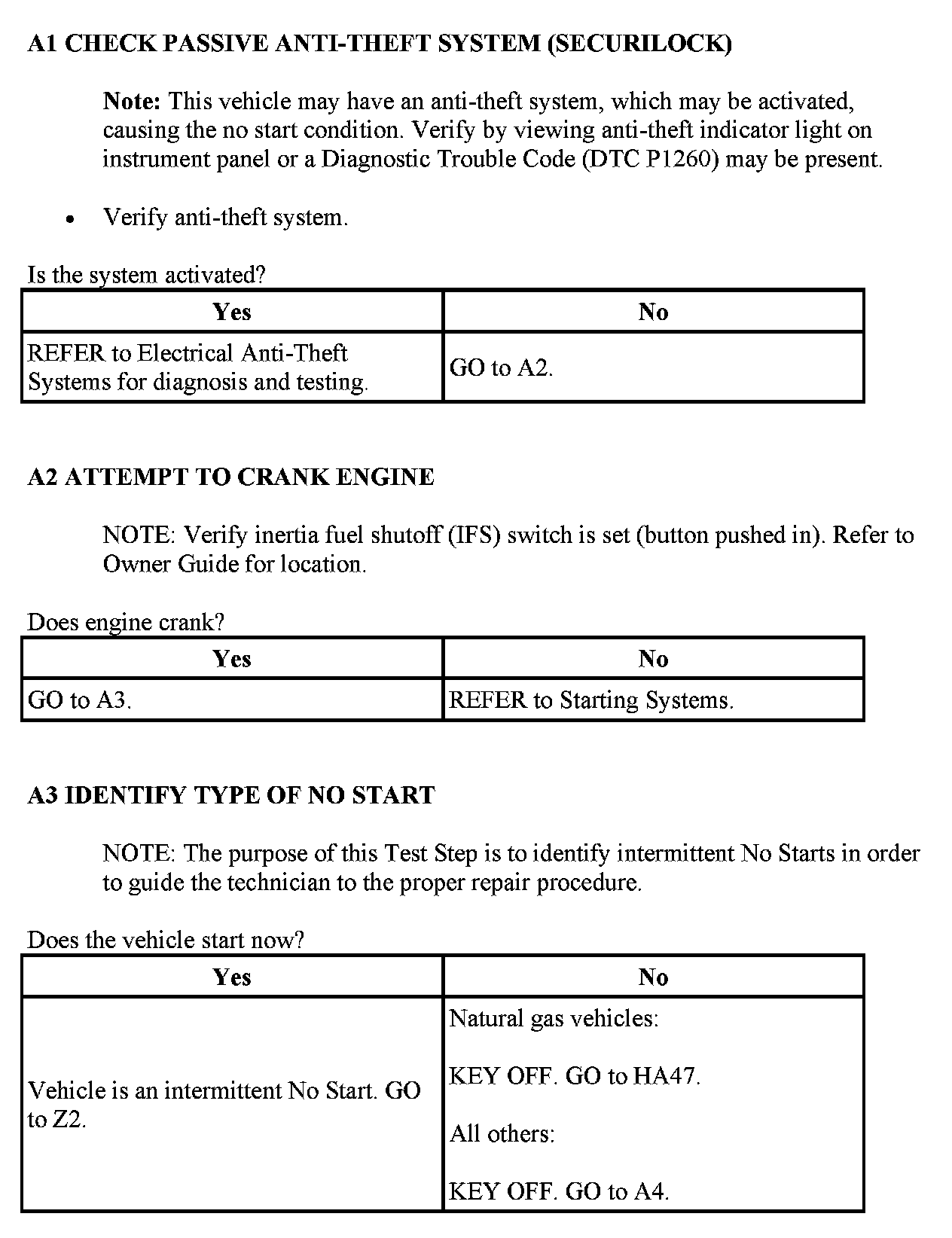

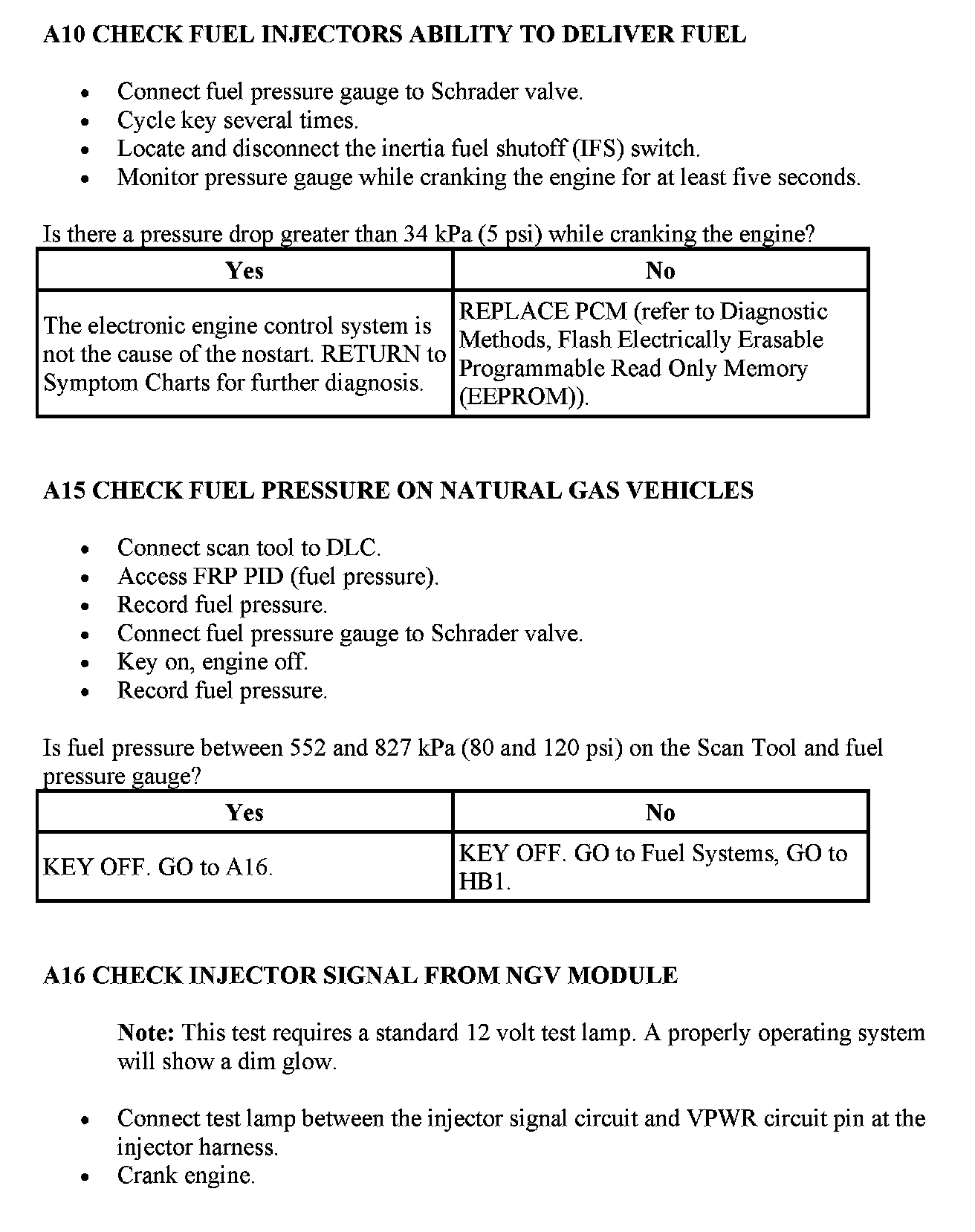

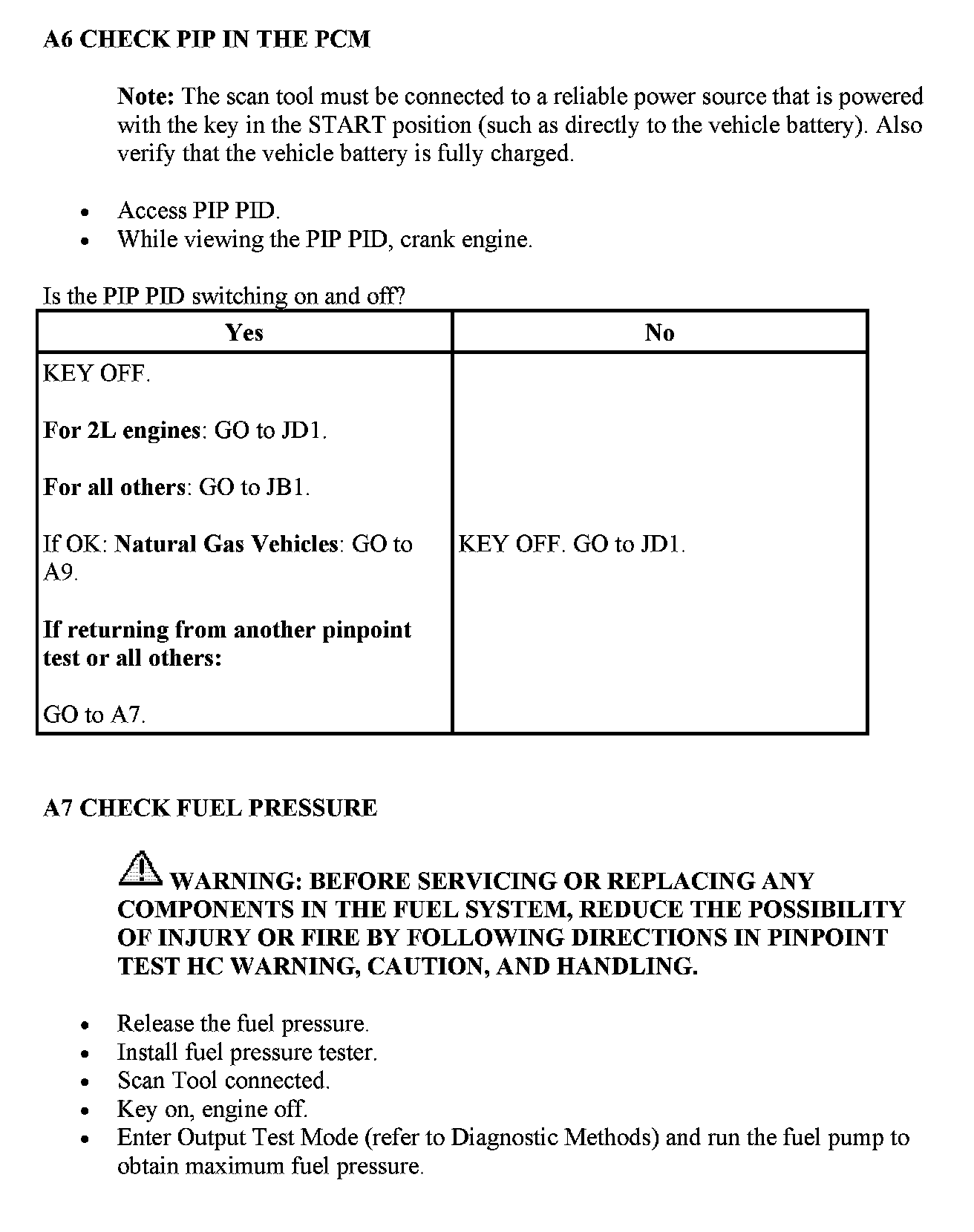

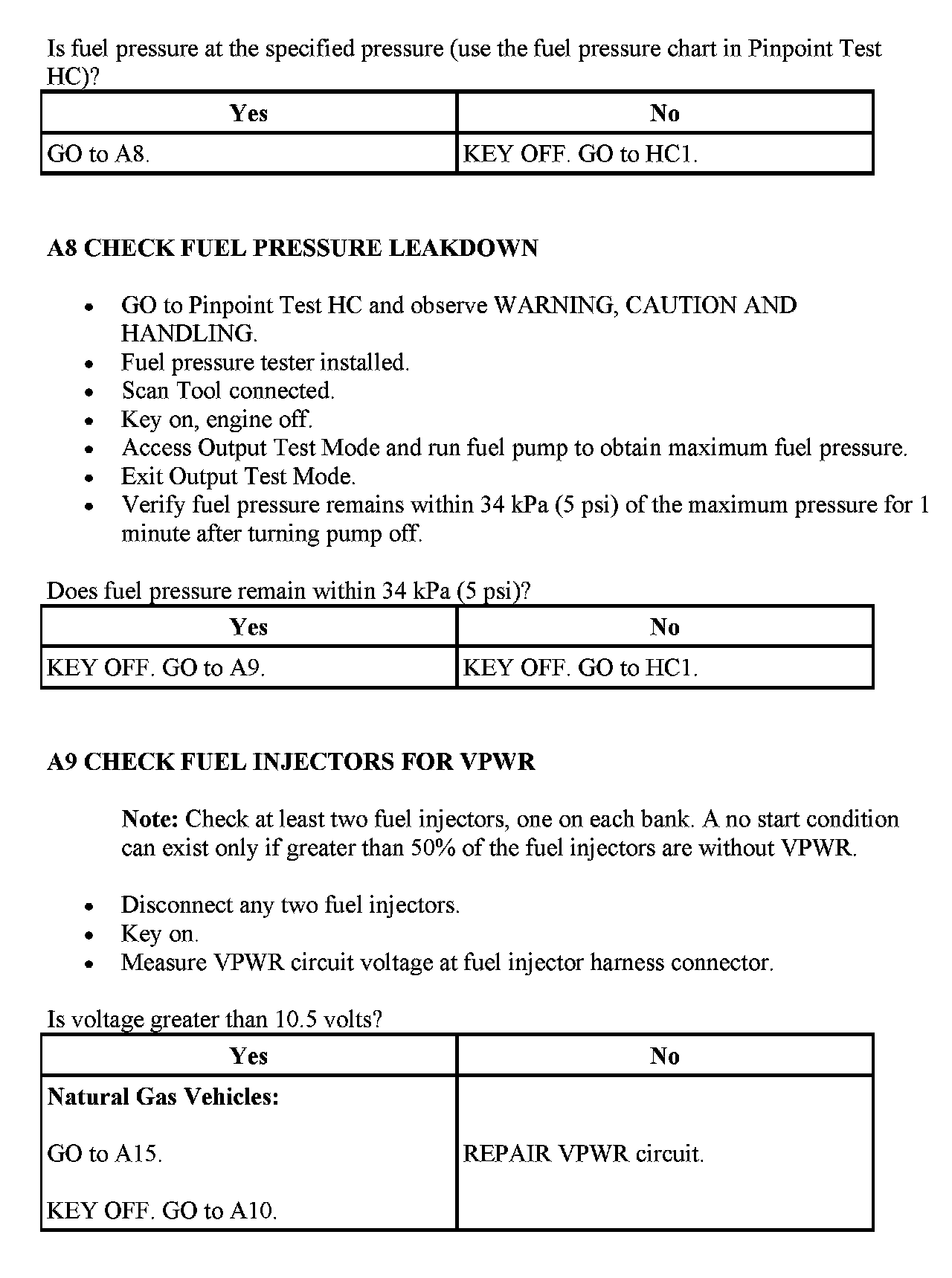

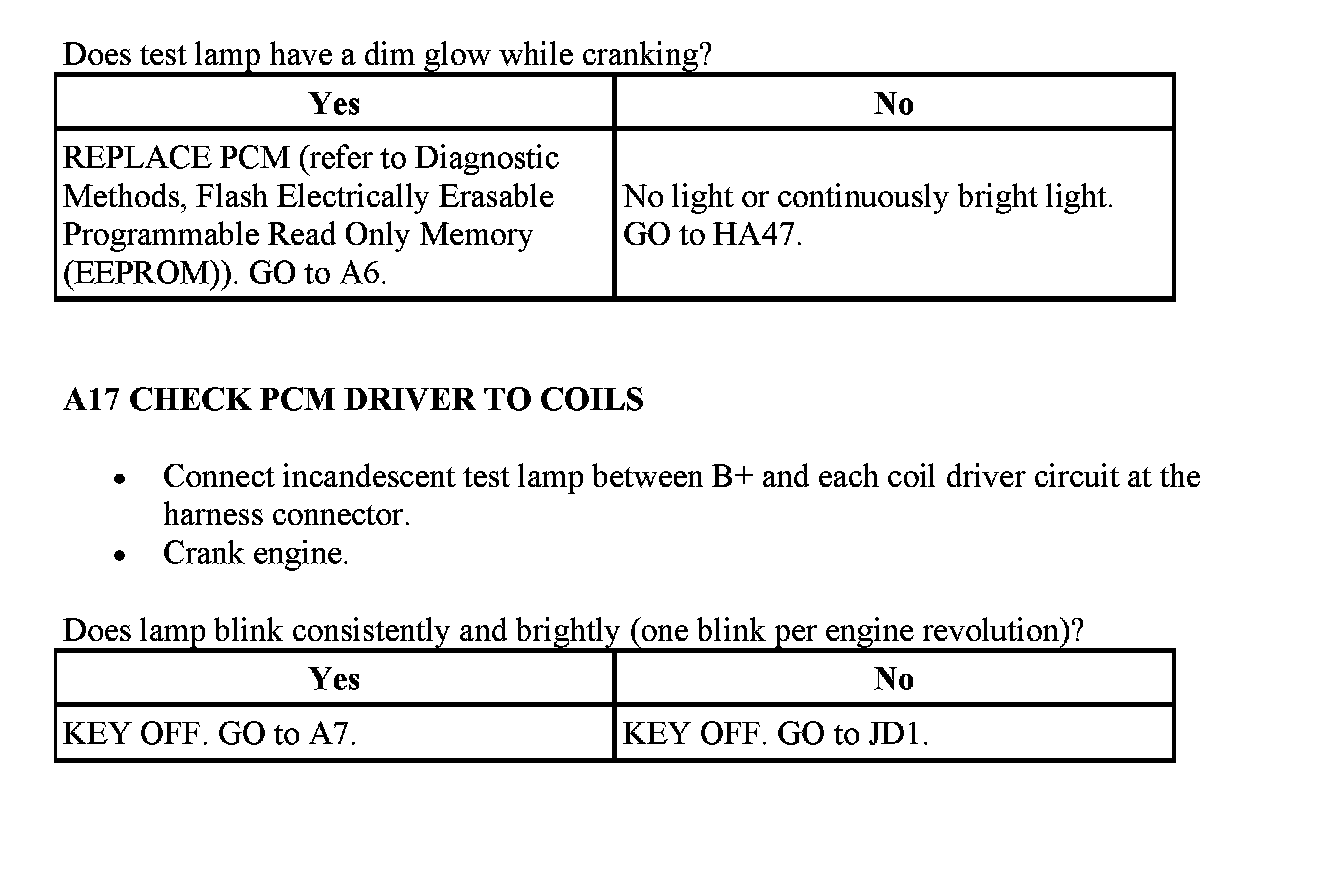

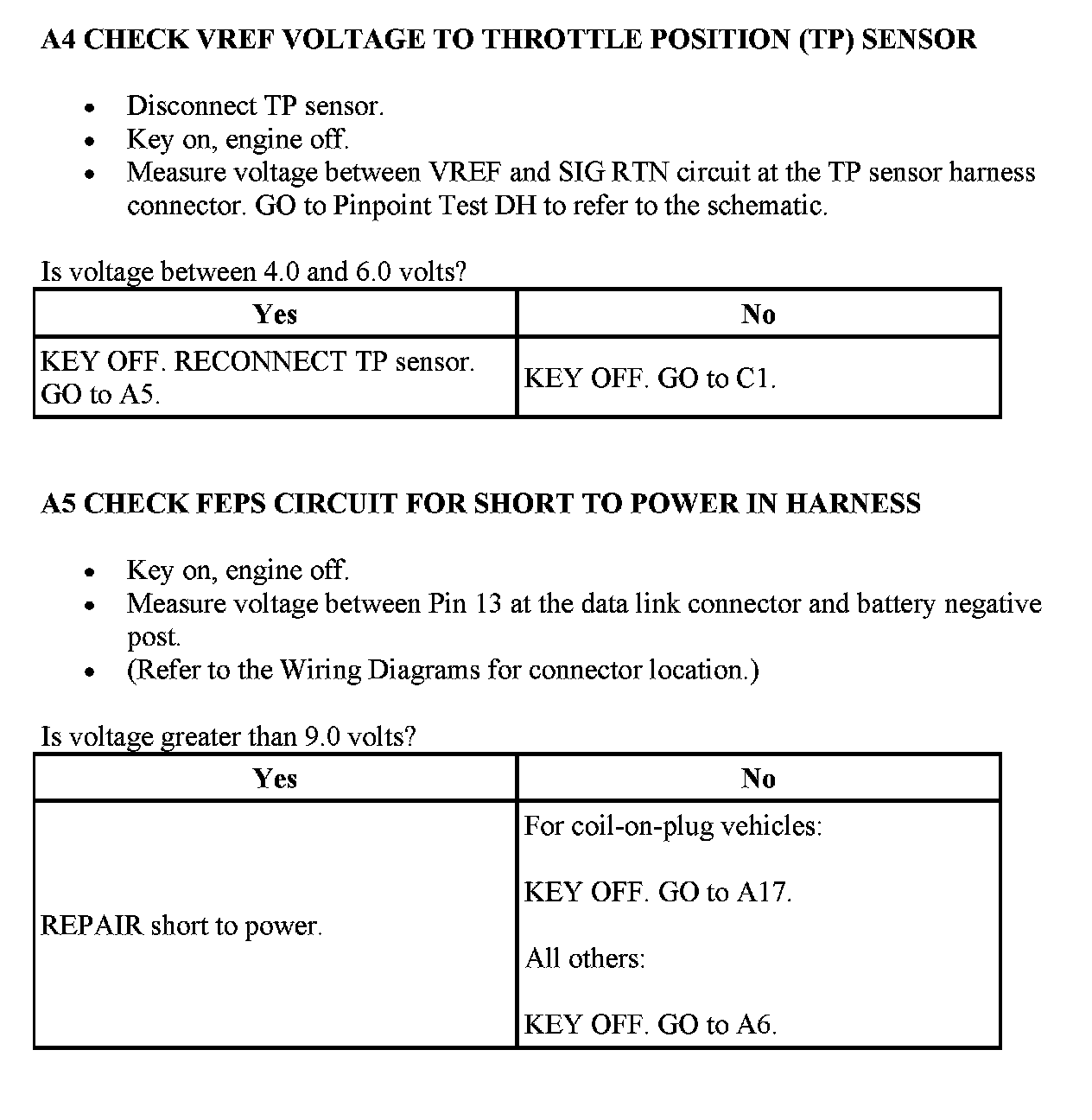

Test A: No Start




NOTE:
This Pinpoint Test is intended to diagnose the following:
- Spark (as related to Electronic Engine Control)
- Powertrain Control Module (PCM)

WARNING: STOP THIS TEST AT THE FIRST SIGN OF A FUEL LEAK AND SERVICE AS REQUIRED.

No open flame - No smoking during fuel delivery checks.
