Camshaft Position Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.

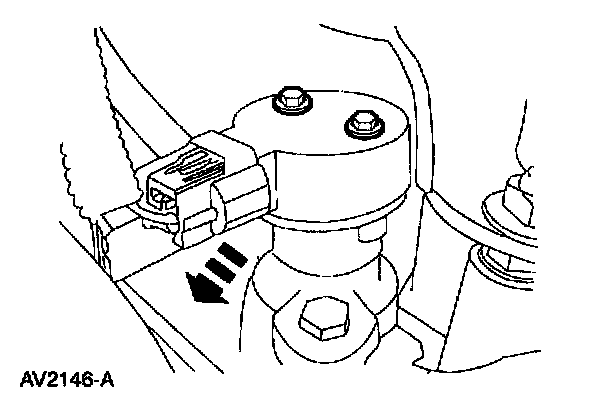

2. Disconnect the Camshaft Position (CMP) Sensor electrical connector.

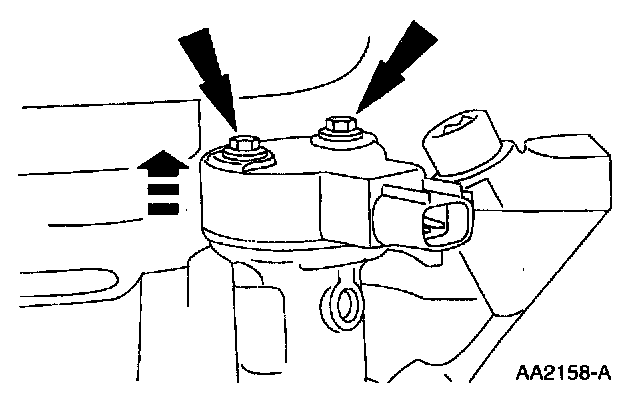

3. Remove the bolts and the CMP sensor.

INSTALLATION
1. To install, reverse the removal procedure.
