Engine General Specifications

1 of 8





2 of 8





3 of 8





4 of 8





5 of 8





6 of 8





7 of 8





8 of 8


Footnote:

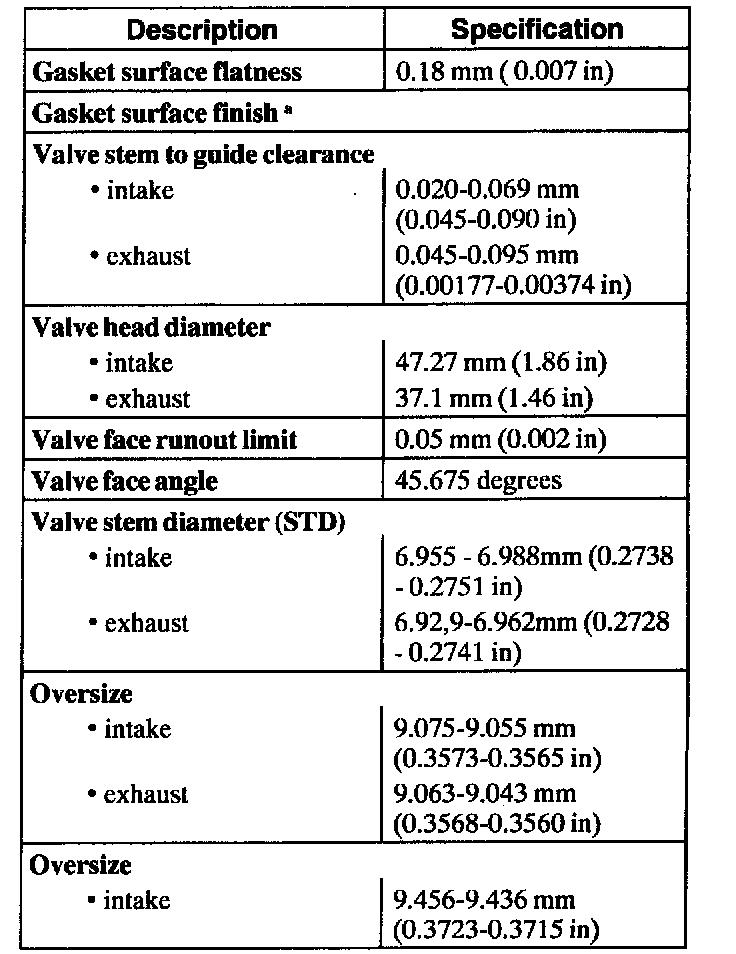

a Head Gasket Surface - WT = 12/2.5.
Head Gasket Surface Finish - RZU - 13.5 micron.
Filter cut off at 0.08 min TPI @ 3.5 microns below the peak 63% min. Cut off at 0.08 mm (0.031496 in), O Ref = 2V
