Intake Manifold

Upper intake manifold bolts: 10 Nm (89 inch lbs)

Upper intake manifold stud bolts: 10 Nm (89 inch lbs)

Upper intake manifold spacer bolts: 10 Nm (89 inch lbs)

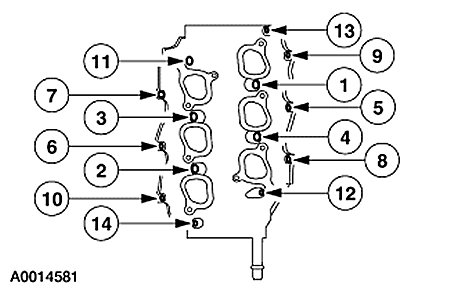

Lower intake manifold bolts: Make sure to tighten the bolts in two stages following the sequence shown.






- Stage 1: Tighten to 5 Nm (44 inch lbs)
- Stage 2: Tighten to 10 Nm (89 inch lbs)
