Test A: No Communication With Front Electronic Module

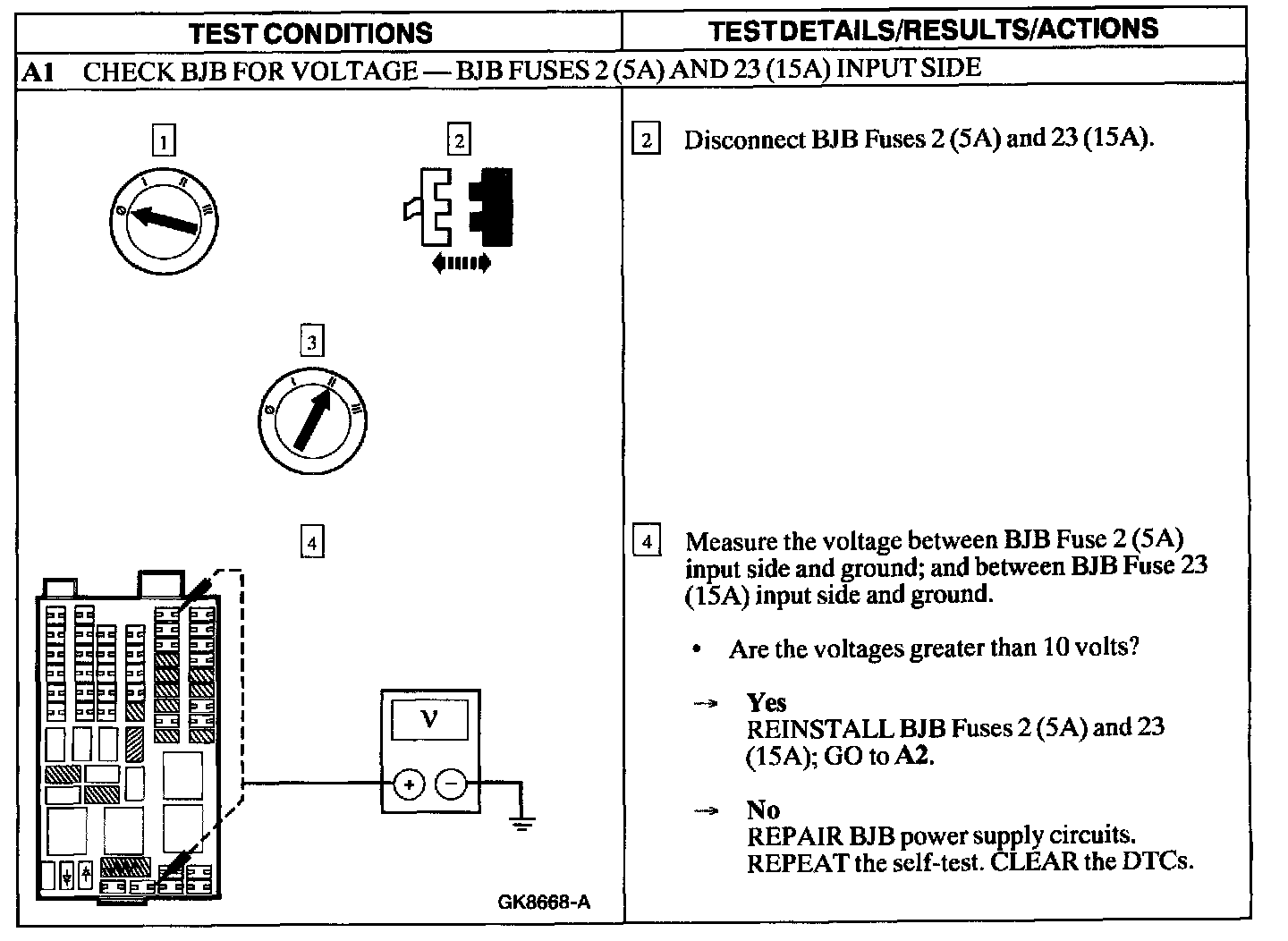

A1:

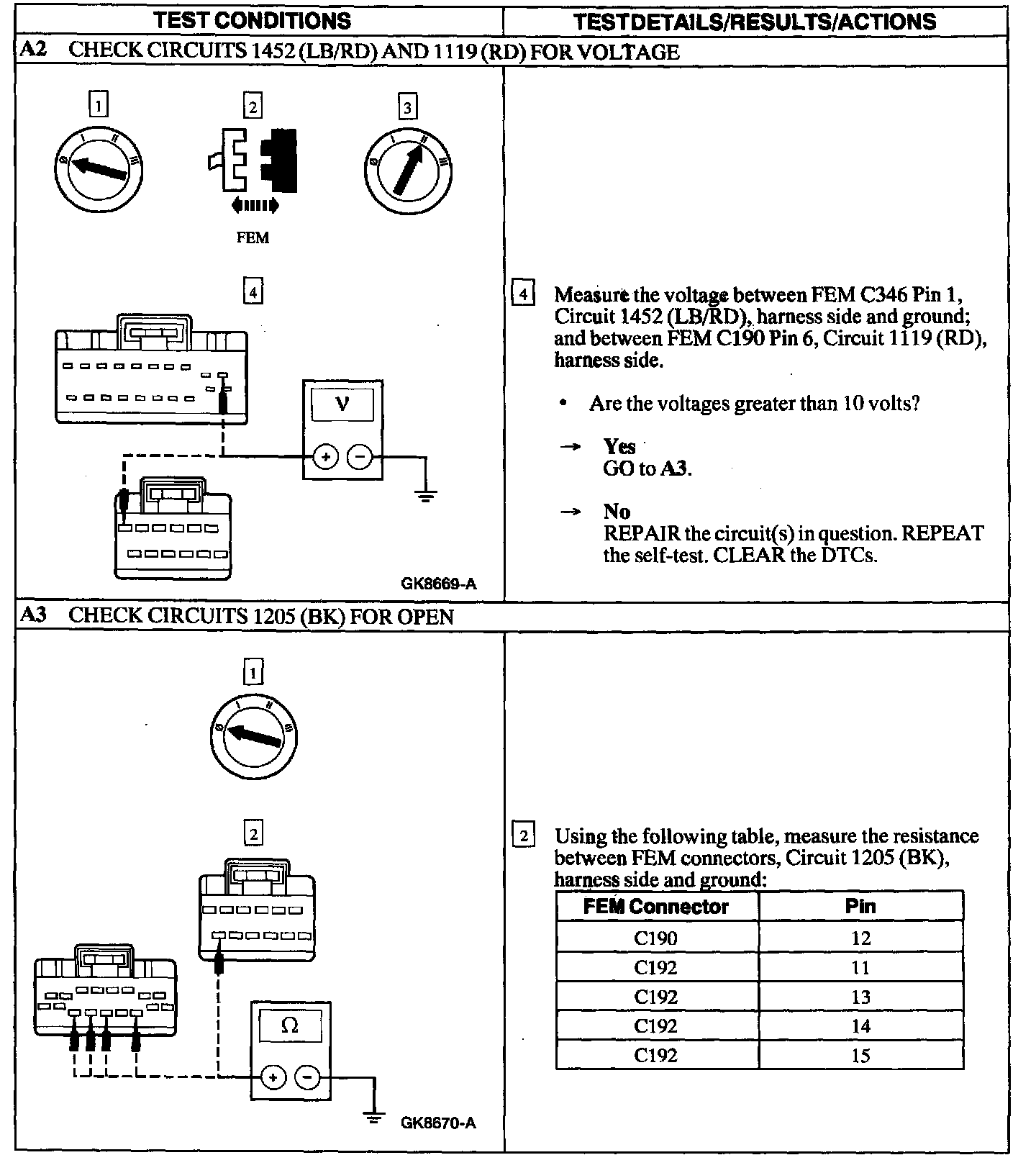

A2 - A3:

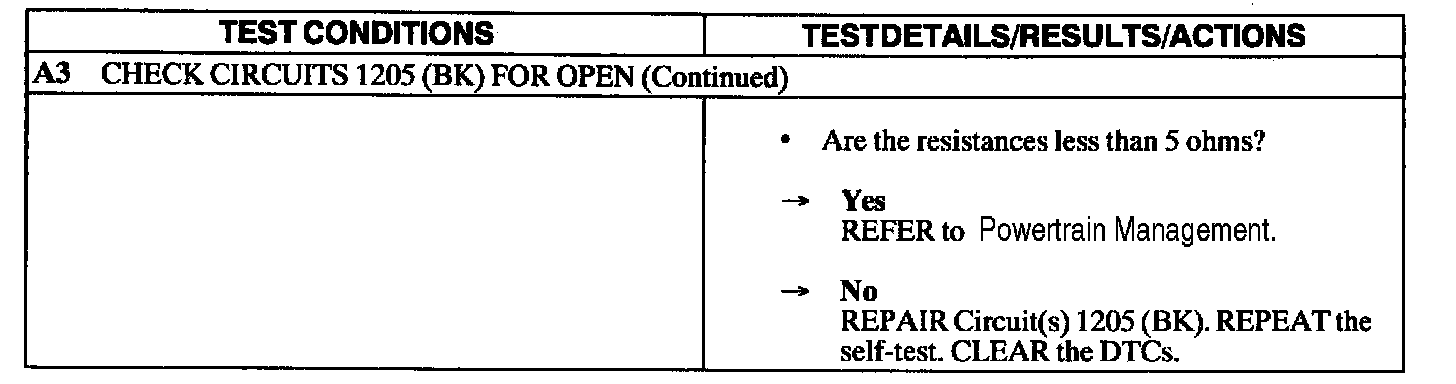

A3:





Pinpoint Test A: NO COMMUNICATION WITH THE MODULE-FRONT ELECTRONIC MODULE
