Timing Belt: Installation
- Loosen the camshaft pulleys.
- Remove the blanking plug from the exhaust camshaft pulley.
- Loosen the exhaust camshaft pulley bolt.
- Loosen the intake camshaft pulley bolt.
- Install the camshaft alignment timing tool on the back of the camshafts.
- Confirm the crankshaft position is at TDC (No. 1 cylinder) by rotating it clockwise against the alignment peg.

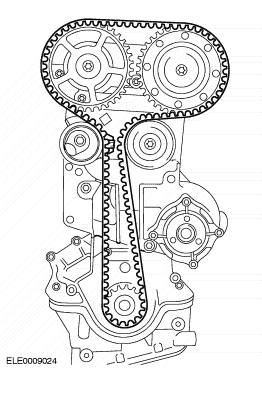

- Position a new timing belt in place. Starting from the crankshaft timing belt pulley and working counterclockwise, position the timing belt in place while keeping it under tension.
- Pretension the timing belt.
- Rotate the tensioner locating tab counterclockwise and insert the locating tab into the slot in the rear timing cover.
- Position the hex key slot in the tensioner adjusting washer to the 4 o'clock position.
- Tighten the attaching bolt enough to seat the tensioner firmly against the rear timing cover, but still allow the tensioner adjusting washer to be rotated using a 6 mm (0.23 in) hex key.

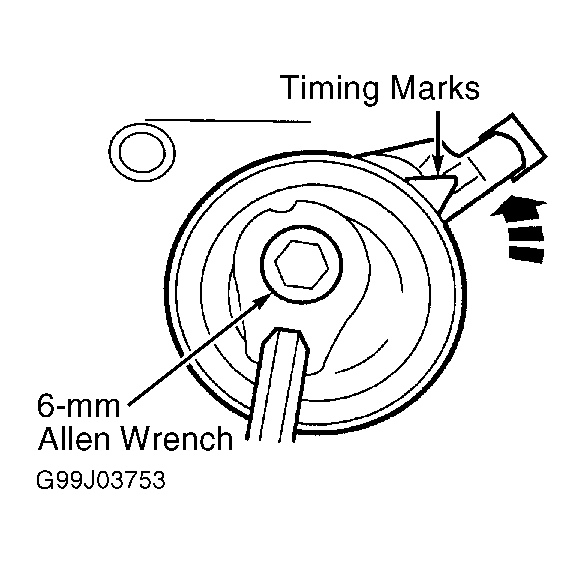

- Using the hex key, rotate the adjusting washer counterclockwise until the notch in the pointer is centered over the index line on the locating tab (the pointer will move clockwise during adjustment).
- While holding the adjusting washer in position, tighten the bolt.
- Tighten the bolt on the intake camshaft sprocket to 50 lb-ft. (68 Nm).
- Tighten the bolt on the exhaust camshaft sprocket in three stages.
- Stage 1: Tighten the bolt to 36 lb-ft (50 Nm).
- Stage 2: Remove the TDC peg and the camshaft alignment timing tool.
- Stage 3: Tighten the bolt to 85-92 lb-ft (115-125 Nm).
- Screw in the new oil plug on the variable camshaft timing assembly.
- Check the valve timing by inserting the special tools and correct the alignment as necessary.

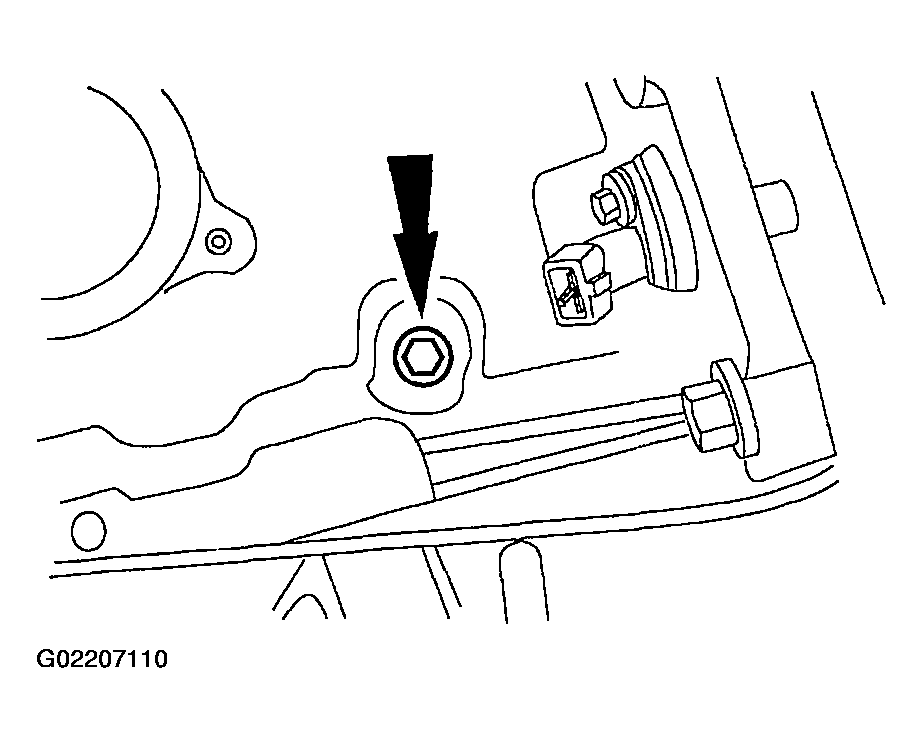

- Screw in special tool 303-574 and make sure that the crankshaft is resting against the special tool.
- Insert special tool 303-465 into the camshafts. If necessary loosen the timing pulleys and correct the camshaft alignment.
- Remove the special tools.
- Install the stud bolt.
- Install the catalytic converter.
- Install the timing belt covers.
- Install the valve cover.
- Connect the heated oxygen sensor (HO2S) electrical connector.
- Install the spark plugs.
- Connect the ignition wires to the spark plugs.
CAUTION:
The camshaft must be held stationary at the hexagons with locking pliers. Do not use the alignment tool to hold the camshaft in position or damage to the camshaft may occur.
NOTE:
To loosen the camshaft pulleys, hold the camshafts by the hexagon.
NOTE:
Rotate the camshafts clockwise as necessary.
NOTE:
Cylinder No. 1 is at top dead center (TDC) when the keyway is in the 12 o'clock position.
CAUTION:
Do not rotate the crankshaft; as necessary check that it is still resting against the timing pin.
NOTE:
The lug of the belt tensioner should not be hooked in the sheet metal cover during timing belt installation.
NOTE:
Incorrect timing belt tension will cause incorrect valve timing.
CAUTION:
Tension the timing belt, working counterclockwise.
CAUTION:
The camshaft must be held stationary at the hexagons with locking pliers. Do not use the alignment tool to hold the camshaft in position or damage to the camshaft may occur.
CAUTION:
The camshaft must be held stationary at the hexagons with locking pliers. Do not use the alignment tool to hold the camshaft in position or damage to the camshaft may occur.
NOTE:
Install a new oil plug seal.
NOTE:
Turn the engine two turns in the normal direction of rotation by the crankshaft.
NOTE:
Whenever an ignition wire is reinstalled, or a new wire is installed, apply dielectric compound to the interior surface of the spark plug wire boot.
