Compressor Manifold and Tube Assembly: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R134a Systems) YN-12-D |
WSH-M1C231-B |

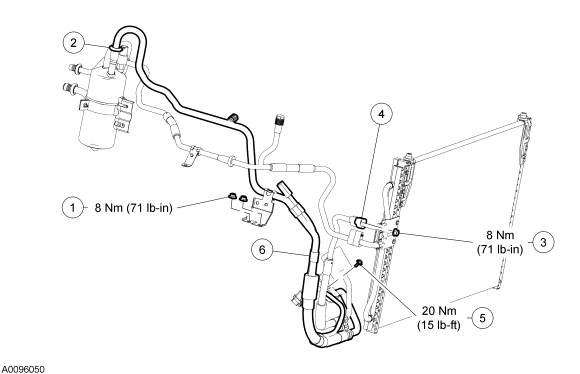

| Item | Part Number | Description |
|---|---|---|
| 1 | W707142 | Compressor manifold and tube assembly bracket nuts (2 required) |
| 2 | - | Compressor manifold and tube spring lock coupling |
| 3 | W520413 | Condenser core inlet fitting nut |
| 4 | - | Condenser core inlet fitting |
| 5 | W709787 | Compressor manifold bolt |
| 6 | 12D305 | Compressor manifold and tube assembly |
