Seat Backrest - Front: Disassembly

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Never probe the electrical connectors on safety belt buckle/retractor pretensioners or adaptive load limiting retractors. Failure to follow this instruction may result in the accidental deployment of the safety belt pretensioners or adaptive load limiting retractors, which increases the risk of serious personal injury or death.
WARNING: To reduce the risk of accidental deployment, do not use any memory saver devices. Failure to follow this instruction may result in serious personal injury or death.
NOTE: The air bag warning indicator illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON.
NOTE: The supplemental restraint system (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
  1. Remove the seat. For additional information, refer to Seat - Front .
  2. Remove the seat backrest. For additional information, refer to Seat Backrest - Front .
    3. NOTE: Install a new crown washer when re-installing the armrest.
  3. Remove the armrest.
    1. Release the hook-and-loop at the rear of the armrest trim cover and access the armrest bolt.
    2. Remove the armrest bolt and crown washer.
      • To install, tighten to 35 Nm (26 lb-ft).
    3. Remove the armrest.
    4. Fig 1: Armrest Trim Cover & Bolt
    GF0011331Courtesy of FORD MOTOR CO.
  4. Remove the backrest trim cover.
    1. Release the J-clip at the bottom of the backrest.
      2. CAUTION: Use care when separating the seat backrest trim cover from the hook-and-loop strip, or the hook-and-loop strip can be torn from the seat backrest foam pad.
    2. Invert the trim cover up the backrest, separate the hook-and-loop strips and remove the backrest trim cover.
    5. Fig 2: Backrest Trim Cover J-Clip
    GF0011332Courtesy of FORD MOTOR CO.
  5. Remove the backrest foam pad from the backrest frame.

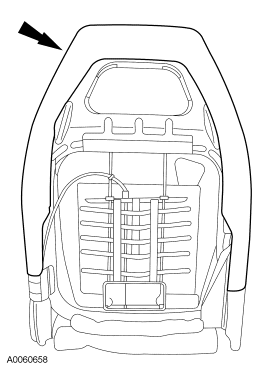

    6. Fig 3: Backrest Foam Pad
    GF0011333Courtesy of FORD MOTOR CO.
  6. Remove the plastic insulator.
  7. Remove the manual lumbar assembly.
    1. Remove the 2 tie straps.
    2. Push the bottom of the lumbar assembly to the right and release the retainers.
    3. Spread the wires at the top and release the lumbar assembly.
    4. Route out the cable and remove the lumbar assembly.
    8. Fig 4: Manual Lumbar Assembly
    GF0011334Courtesy of FORD MOTOR CO.
    WARNING: Use care when the seat back frame is removed and when releasing the recliners from a backrest upright position. The recliners are spring-loaded, which may cause the recliner upper arms to fold with significant speed/force. Failure to follow this instruction may result in serious personal injury.
  8. Remove the 2 bolts and recliner.
    • To install, tighten to 48 Nm (35 lb-ft).
    9. Fig 5: Recliner & Bolts
    GF0011335Courtesy of FORD MOTOR CO.
  9. To assemble, reverse the disassembly procedure.
