Front Brake Flexible Hose: Notes

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material

Item Specification
High Performance DOT 3 Motor Vehicle Brake Fluid
PM-1-C (US); CPM-1-C (Canada)
WSS-M6C62-A or WSS-M6C65-A1

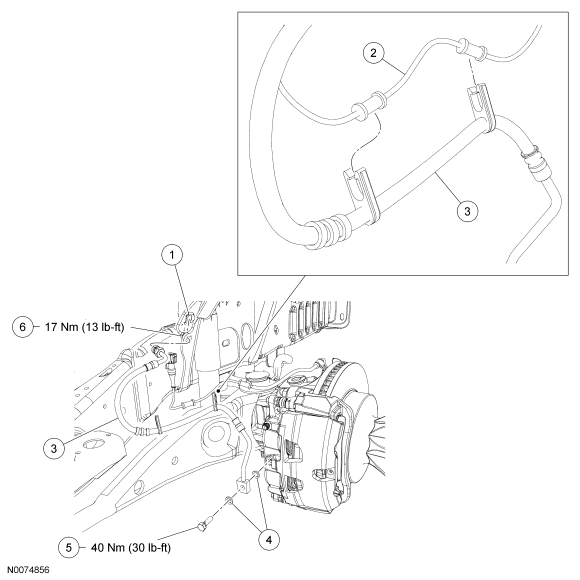

Fig 1: Exploded View Of Brake Flexible Hose With Torque Specifications
GF0044694Courtesy of FORD MOTOR CO.
Item Part Number Description
1 386493 Brake flexible hose retaining clip
2 2C204 RH/ 2C205 LH Wheel speed sensor
3 2078 Brake flexible hose
4 388949 Copper washers (2 required)
5 385116 Brake caliper flow bolt
6 - Brake tube fitting (part of 2263 RH/2264 LH)
