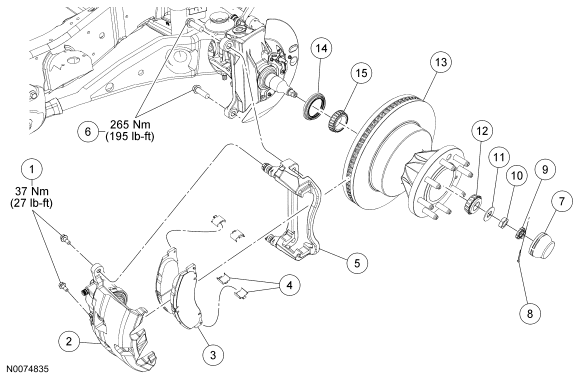

Front Disc Brake System - Exploded View
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Dual rear wheel (DRW) shown, single rear wheel (SRW) similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 2C534 | Brake caliper guide pin bolts (2 required) |
| 2 | 2B120 | Brake caliper |
| 3 | 2018 | Brake pads |
| 4 | 2B164 | Brake pad anti-rattle clips (4 required) |
| 5 | 2B292 | Brake caliper anchor plate |
| 6 | N811625 | Brake caliper anchor plate bolts (2 required) |
| 7 | 1131 | Hub grease cap |
| 8 | N642569 | Cotter pin |
| 9 | 390622 | Spindle nut retainer |
| 10 | 374504 | Spindle nut |
| 11 | 1195 | Outer wheel bearing retainer washer |
| 12 | 1216 | Outer wheel bearing |
| 13 | 1102 | Brake disc and hub |
| 14 | 1201 | Inner wheel bearing |
| 15 | 1190 | Grease seal |
- For additional information, refer to the procedures.
