Stability Control Sensor Cluster: Notes

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

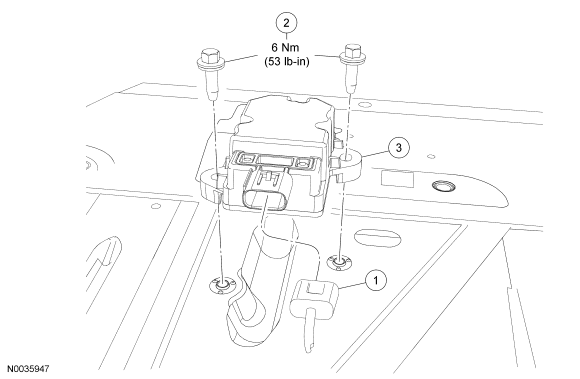

Fig 1: Exploded View Of Stability Control Sensor Cluster With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Stability control sensor cluster electrical connector
2	W706287	Stability control sensor cluster bolts (2 required)
3	3C187	Stability control sensor cluster
