Wheel Speed Sensor - Front: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

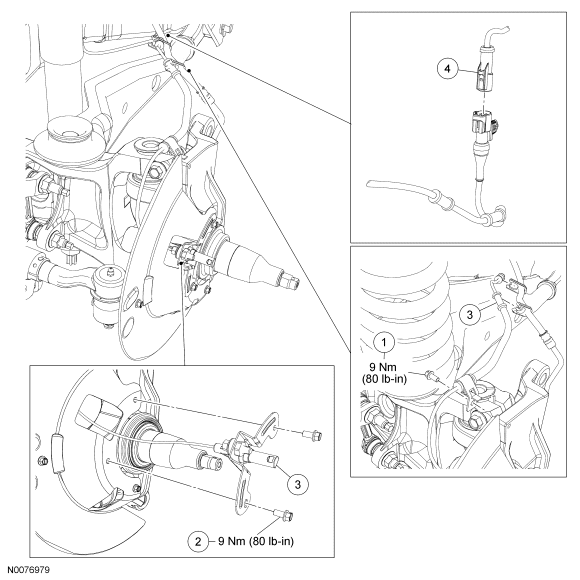

| Item |
Part Number |
Description |
| 1 |
N611172 |
Front wheel speed sensor harness retainer bolt |
| 2 |
N611172 |
Front wheel speed sensor bolt |
| 3 |
2C204 LH/ 2C205 RH |
Front wheel speed sensor |
| 4 |
- |
Front wheel speed sensor harness connector (part of 12A581) |
