Generator - 3.0L: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

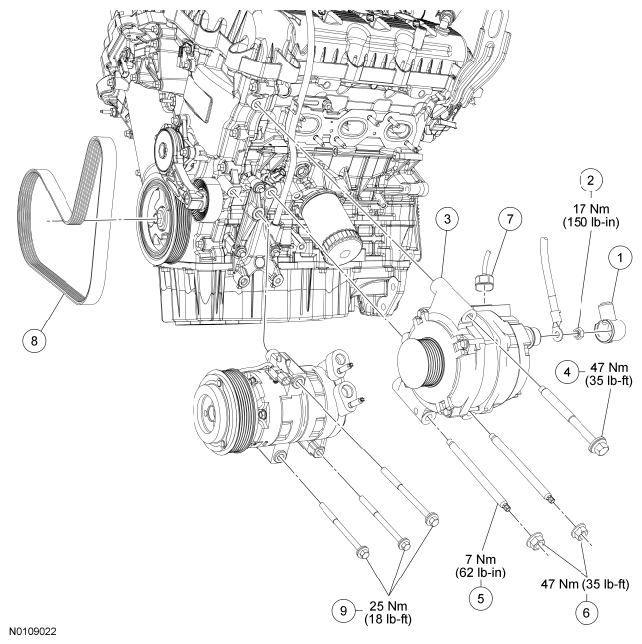

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Generator B+ cable and B+ protective cover (part of 15A522) |
| 2 | W711953 | Generator B+ terminal nut |
| 3 | 10300 | Generator |
| 4 | W709986-S | Generator bolt |
| 5 | W709985-S | Generator stud (2 required) |
| 6 | W520414 | Generator stud nuts (2 required) |
| 7 | - | Generator electrical connector (part of 12A522) |
| 8 | 8620 | Front End Accessory Drive (FEAD) belt |
| 9 | N806184 | A/C compressor bolts (3 required) |
